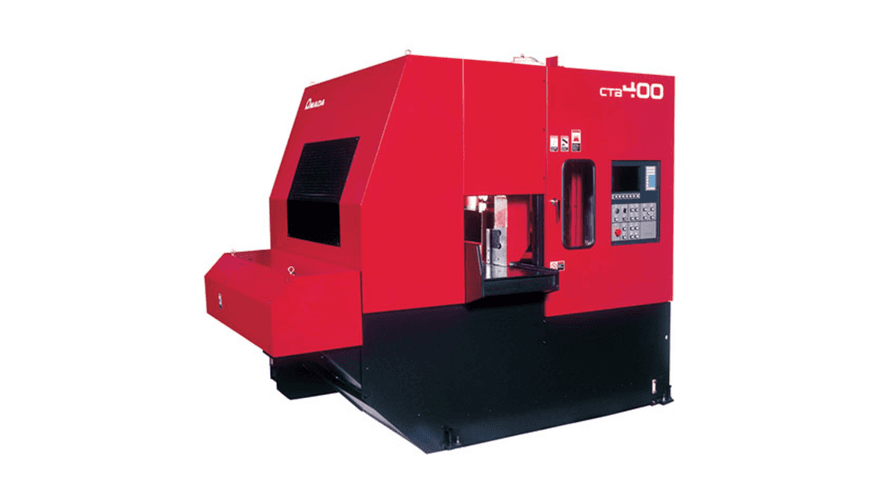

Amada CTB-400 Automatic Metal Cutting Bandsaw

MAIN FEATURES

Exceptional Cutting Capacity
- Cuts round materials up to Ø 430 mm (16.93")
- Cuts rectangular materials up to 430 × 430 mm
- Ideal for medium to large solid bars and structural workpieces

Heavy-Duty Blade System
- Uses a 4724.4 mm × 41 mm × 1.4 mm industrial-grade blade
- Maintains stability while reducing vibration
- Ensures extended blade life and consistent cutting

Inverter-Controlled Variable Blade Speed
- Blade speed range: 50–492 ft/min
- Perfect for adjusting cutting speed based on material hardness
- Increases precision and improves finish quality

Powerful Motor System
- Saw blade motor: 10 HP (7.5 kW)
- Hydraulic motor: 2 HP
- Coolant pump motor: 0.24 HP
- Wire brush motor: 0.12 HP
- The combined motor system delivers maximum torque, smooth cutting, and extended runtime

Precision Hydraulic Vise System
- Clamping width: 30–430 mm (1.18"–16.93")
- Robust, uniform hydraulic clamping
- Prevents material slippage even during heavy-duty cuts

Fully Automatic Operation
- The CTB-400 is engineered for high-volume, automated workflows, offering:
  - Automatic feed
  - Hydraulic clamping
  - Programmable cutting cycles
- Perfect for continuous production environments

Heavy Industrial Build
- Rigid frame eliminates blade deviation
- Supports consistent accuracy
- Designed for long-life performance in demanding environments

Efficient Coolant and Chip Removal System
- High-capacity coolant pump
- Wire brush cleaning system
- Ensures clean cuts and reduces blade wear

Large, Easy-to-Load Work Area
- Ergonomic working height
- Wide material support area
- Suitable for large workpieces and bundles

COMMON QUESTIONS

Up to 430 mm (16.93") in diameter.

430 × 430 mm.

4724.4 mm × 41 mm × 1.4 mm.

50–492 ft/min, inverter controlled.

A powerful 10 HP (7.5 kW) main motor.

Yes, it is a fully automatic CNC-controlled horizontal bandsaw.

Steel, stainless steel, alloy steel, tool steel, bronze, and non-ferrous materials.

Yes, it features a hydraulic vise with 30–430 mm clamping width.

Approximately 2900 × 2600 × 2600 mm.

Steel service centers, fabrication units, forging shops, automotive machining, and general industrial manufacturing.

Yes, it has a wire brush motor (0.12 HP) for continuous blade cleaning.

1.4 mm.

Its powerful motor and heavy frame make it ideal for continuous, high-volume production.

30 to 430 mm.

Typically a 3-phase industrial power source (voltage varies by region).

Blade Length inches	185.5"
Min/Max Blade Width	1.5" to 1.5"
Machine Type	Metal
Machine Type	Automatic Horizontal Metal Cutting Bandsaw
Blade Thickness	1.4 mm
Cutting Capacity – Round	430 mm (16.93")
Cutting Capacity – Rectangular	430 × 430 mm
Blade Speed	50–492 ft/min (variable inverter)
Saw Blade Motor	10 HP (7.5 kW)
Hydraulic Motor	2 HP
Coolant Pump Motor	0.24 HP
Wire Brush Motor	0.12 HP
Vise Clamping Width	30–430 mm (1.18"–16.93")

Amada CTB-400 – Automatic Metal Cutting Bandsaw
