Ultra-Large Cutting Capacity
Round cutting capacity from approximately 800 mm up to 1000 mm
Square cutting capacity up to 1000 x 1000 mm
Designed for massive billets, forgings, and heavy structural components
Wide Blade System for Heavy Cuts
Extra-wide blade (approximately 80 mm) for high stability
Reduces blade deflection during deep and heavy cuts
Improves straightness and surface finish on large sections
High-Power Drive System
Equipped with a high-output blade motor (approx. 11 kW / 10 HP)
Provides strong, consistent torque for dense and thick materials
Variable Blade Speed Control
Blade speed range typically 17–75 m/min
Allows precise adjustment based on material type and size
Enhances blade life and cutting efficiency
Hydraulic Twin Vise Clamping
Heavy-duty hydraulic twin vises with large opening capacity
Ensures secure clamping of oversized workpieces
Maintains accuracy throughout the cutting cycle
Industrial Hydraulic Control System
Semi-automatic operation with hydraulic feed control
Touch-screen or panel-based control on select configurations
Designed for reliable, repeatable production cutting
Built for Extreme Workloads
Massive machine construction for vibration-free cutting
Designed to handle extremely heavy materials and long production cycles
Optional or standard chip conveyor depending on configuration

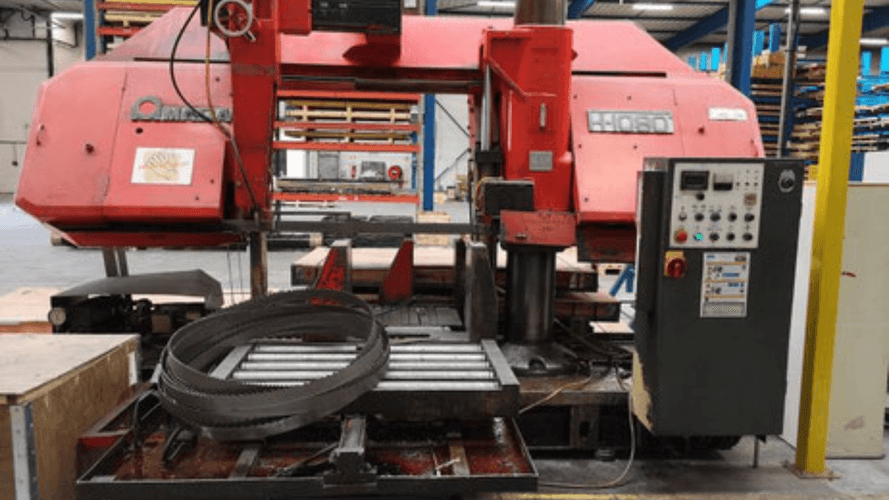

It is a heavy-duty horizontal metal bandsaw for very large materials.
Approximately up to 1000 mm, depending on configuration.
Yes, up to approximately 1000 x 1000 mm.
Approximately 80 mm (2.625 inches).
Yes, blade speed is variable to suit different materials.
Hydraulic twin vises with large opening capacity.
Most versions are semi-automatic with hydraulic controls.
Yes, it is specifically designed for heavy solid materials.
Approximately 11 kW (or 10 HP), depending on model variation.
Yes, it is built for high-duty, long-cycle production environments.
Chip conveyors are commonly available or included on select configurations.
Yes, the heavy machine structure minimizes vibration.
Steel service centers, heavy fabrication, energy, and infrastructure manufacturing.
Yes, variations like the H-1080W offer expanded cutting capacities.
Yes, it combines rigidity, blade stability, and hydraulic control for accurate results.
| Blade Length inches | 345" |
| Min/Max Blade Width | 2.625" to 2.625" |
| Machine Type | Metal |
| Cutting Capacity (Round) | 1080mm |
| Cutting Capacity (Square) | Approx. 1000 x 1000 mm |
| Blade Dimensions | Approx. 80 mm x 9700–10100 mm |
| Blade Speed | Variable, approx. 17–75 m/min |
| Blade Motor Power | Approx. 11 kW / 10 HP |
| Vise Type | Hydraulic Twin Vises |
| Machine Weight | Approx. 7,000–9,200 kg |
| Machine Dimensions (Approx.) | 4.2 m (L) x 2.6 m (W) x 2.8 m (H) |
