Extreme Large-Capacity Cutting
Round cutting capacity up to Ø1600 mm (63 inches)
Rectangular cutting capacity up to 1600 x 1600 mm
Ideal for massive billets, forgings, and heavy structural components
High Workload Handling
Supports workpieces weighing up to 40,000 kg
Designed for large-scale industrial operations and continuous duty
Wide Heavy-Duty Blade System
Extra-wide blade (80 mm width, 1.6 mm thickness) for maximum stability
Minimizes blade deflection during deep and long cutting cycles
Ensures straight cuts and consistent surface finish
Powerful Drive & Hydraulic System
15 kW saw blade motor provides high torque for dense materials
5.5 kW hydraulic pump motor ensures reliable clamping and feed control
Inverter-Controlled Variable Blade Speed
Adjustable blade speed from 12–60 m/min
Optimized cutting parameters for various metal grades and sizes
Improves blade life and cutting efficiency
CNC-LIGHT Controlled Operation
CNC-LIGHT control unit for accurate feed and cutting management
Semi-automatic operation with hydraulic vise and table feed
Designed for repeatable, controlled cutting cycles
Large Industrial Table & Feed Stroke
Table height of 810 mm for stable material support
Long 1800 mm feed stroke supports large workpieces and long cuts
Heavy Industrial Construction
Massive machine structure minimizes vibration
Built for long-term operation in extreme cutting environments

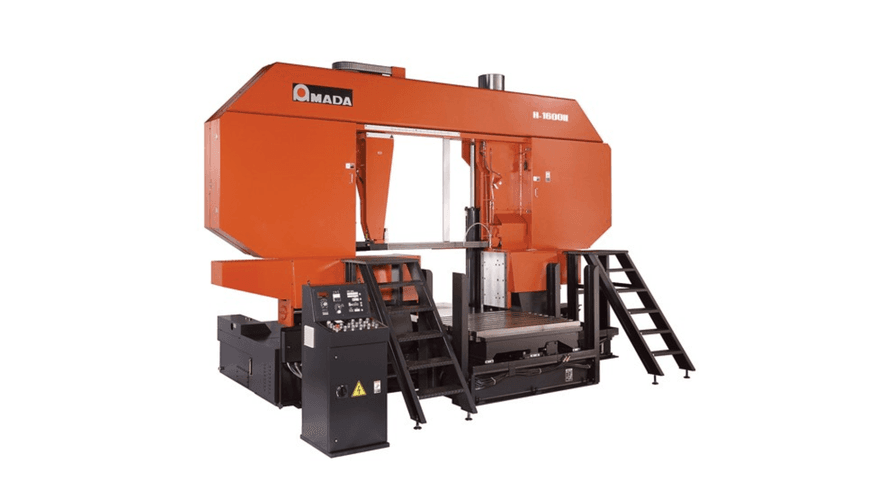

It is an ultra heavy-duty horizontal metal bandsaw for very large workpieces.
Up to Ø1600 mm (63 inches).
Yes, up to 1600 x 1600 mm.
Up to 40,000 kg (88,200 lbs).
Approximately 80 mm (3.125 inches).
Yes, via inverter-controlled variable speed.
A 15 kW (20.1 HP) saw blade motor.
It operates in semi-automatic mode with CNC-assisted control.
CNC-LIGHT control unit.
Yes, a powerful hydraulic vise secures heavy workpieces.
Heavy fabrication, steel service centers, energy, and infrastructure manufacturing.
Yes, it is designed for long production cycles and extreme loads.
The massive frame and wide blade system ensure excellent stability.
1800 mm (70.9 inches).
Yes, it supports a wide range of ferrous and non-ferrous metals.
| Blade Length inches | 610.24" |
| Min/Max Blade Width | 3.125" to 3.125" |
| Machine Type | Metal |
| Cutting Capacity (Round) | Up to Ø1600 mm (63 in.) |
| Cutting Capacity (Rectangular) | Up to 1600 x 1600 mm |
| Blade Size | 80 x 1.6 x 15500 mm |
| Blade Speed | 12–60 m/min (Inverter Controlled) |
| Saw Blade Motor | 15 kW (20.1 HP) |
| Hydraulic Motor | 5.5 kW (7.4 HP) |
| Workload Capacity | 40,000 kg |
| Table Height | 810 mm |
| Feed Stroke | 1800 mm |
| Control System | CNC-LIGHT |
| Machine Weight | Approx. 30,000 kg |
| Machine Dimensions (Approx.) | 7407 x 4895 x 5307 mm |
