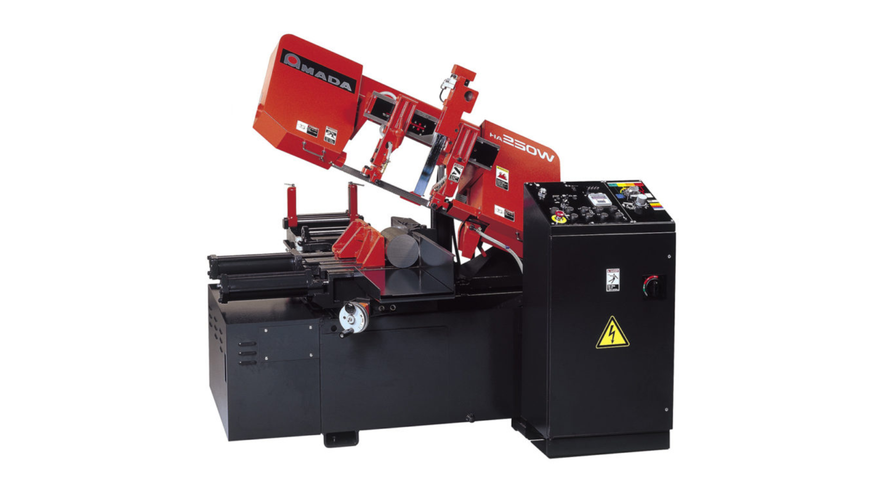

The Amada H-250-D is a high-performance metal cutting bandsaw designed for precision in workshops, fabrication units, and industrial machining. Known for its reliability, accuracy, and heavy-duty build, it offers smooth, accurate cuts with extended blade life. Ideal for cutting steel, bars, pipes, and bundled materials, the H-250-D excels in both small batches and continuous production with minimal maintenance.
Precision Cutting Capacity
Cuts round materials up to 250 mm (10")
Rectangular capacity up to 300 × 250 mm
Ideal for cutting steel, alloy materials, aluminum, and stainless steel
Tip: Use high-quality Amada blades to reduce vibration and improve surface finish.
Heavy-Duty Frame for Vibration-Free Cutting
The rigid cast-iron construction ensures:
Excellent stability during long cutting cycles
Higher cutting accuracy
Reduced blade wear
Tip: Mount the machine on a level surface for maximum rigidity.
Variable Blade Speed Control
Speed ranges approx. 27–115 m/min (depending on configuration), making it perfect for:
Mild steel
Alloy steel
Non-ferrous metals
Tip: Adjust blade speed based on material hardness for optimal blade life.
Efficient Hydraulic Operation
The hydraulic system operates the vise and feed mechanisms, enabling:
Smooth, controlled cutting feed
Consistent cut quality
Semi-automatic or fully automatic functionality
Tip: Maintain hydraulic oil levels for consistent performance.
Auto-Feed Vise System
Perfect for repetitive cutting jobs:
Automatic material feeding
Enhanced productivity in batch operations
Tip: Use for bundle cutting to maximize throughput.
Integrated Coolant System
Keeps blade temperature low during intensive cutting, helping:
Reduce blade wear
Improve cut surface finish
Tip: Clean coolant tank regularly to prevent clogging.
Low Power Consumption
Operates with a 3 HP / 2.2 – 3 kW motor, delivering strong cutting performance while staying energy-efficient.
Compact & Workshop-Friendly Design
At approx. 1000–1100 kg, the H-250-D fits easily into both small and large workshops.
It can cut mild steel, stainless steel, alloy steel, solid bars, tubes, and non-ferrous metals.
Up to 250 mm (10") in diameter.
Yes, up to 300 × 250 mm (W × H).
It is available in semi-automatic or fully automatic versions depending on configuration.
Blade length is 3505 mm (depending on configuration).
Typically 25 mm or 27 mm.
Yes, approximately 27–115 m/min, depending on the model setup.
A 3 HP (2.2 – 3 kW) cutting motor.
Yes, an integrated coolant system is included for heat reduction.
Around 1000–1100 kg, depending on configuration.
Approximately 700 mm.
Yes, bundle cutting up to 200 × 150 mm is supported (HA-250W variant).
Approximately 0.9–0.95 mm.
Yes, designed for industrial, repetitive, and batch cutting operations.
Yes, it uses hydraulic feeding for precise cutting and automatic operation.
| Blade Length inches | 138" |
| Min/Max Blade Width | 1" to 1" |
| Machine Type | Metal |
| Blade Thickness | 0.9–0.95 mm |
| Blade Speed Range | 27–115 m/min |
| Cutting Capacity – Round | Up to 250 mm |
| Cutting Capacity – Rectangle | 300 × 250 mm |
| Bundle Cutting | 200 × 150 mm |
| Motor Power | 3 HP (2.2 – 3 kW) |
| Operation Type | Hydraulic, Semi/Fully Automatic |
| Coolant System | Integrated |
| Machine Weight | 1000–1100 kg |
| Table Height | 700 mm |
Amada 250A Carbide Guide Set — 360° video overview

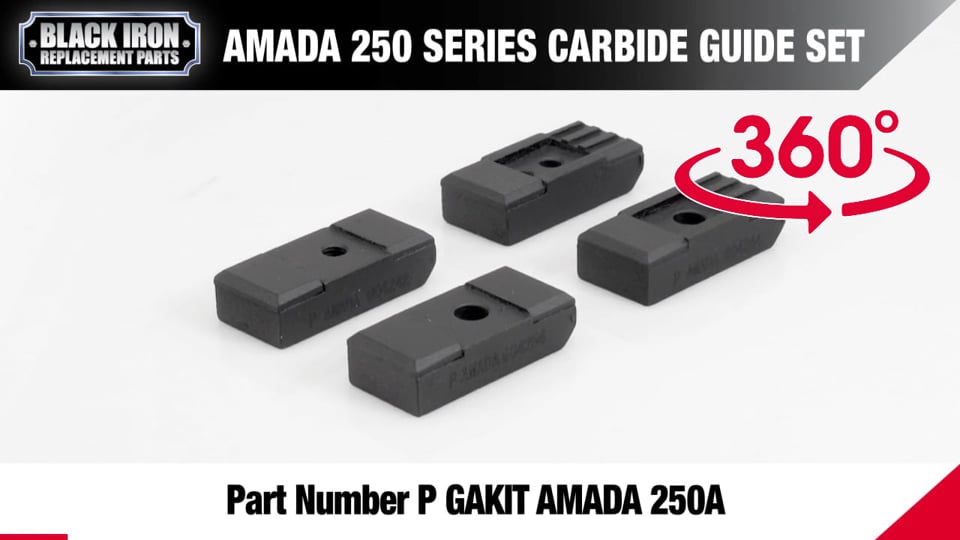

The Amada 250A Carbide Guide Set from Black Iron Parts provides a precision sawguides upgrade for industrial metal cutting, where carbide contact faces reduce friction, hold tracking, and extend life when running 1″ (27 mm) blades in continuous duty applications. The 360° video displays these carbide sawguides from every angle, showing industrial rigidity, smoother feed behavior, and compatibility with known Amada replacement assemblies and legacy 250-series frame patterns used in production environments. Upgrade your Amada bandsaw to Black Iron carbide sawguides for longer blade life and precision.
Amada 250A Carbide Blade Guide Kit Product Overview
