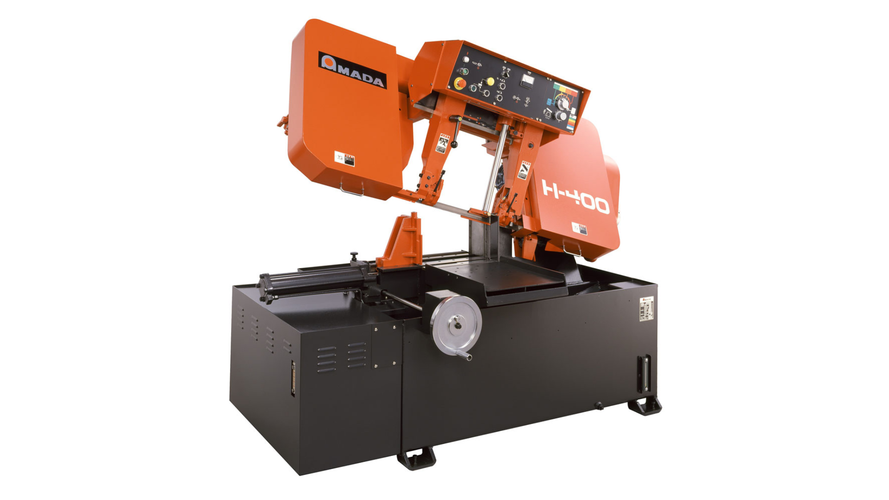

Amada H-400 – Horizontal Bandsaw

Large 400–420 mm Cutting Capacity

• Cuts 400–420 mm (15.7–16.5") round stock

• Handles 400 × 400 mm rectangular materials

• Ideal for cutting steel bars, billets, tubes, structural steel, and alloy materials

Industrial 5.5 kW Saw Motor

• High-torque 5.5 kW motor powers through solid metals with ease

• Voltage options from 240V–415V, depending on region

• Delivers stable, energy-efficient cutting performance

Wide Blade Compatibility

• Supports 1.25" (32 mm) wide industrial metal-cutting blades

• Blade size: 180" long × 1.25" wide × 1.066 mm thick

• Ideal width for high-accuracy, straight cuts on large workpieces

Adjustable Blade Speed for Material Flexibility

• Blade speed range: 15–90 m/min

• Perfect for a wide range of materials:

  • Mild steel

  • Tool steel

  • Stainless steel

  • Alloy steel

  • High-strength metals

Hydraulic Feed System for Automatic Cutting

• Hydraulic vise clamping for high stability

• 495 mm feed stroke for smooth, consistent material advancement

• Large 40 L hydraulic tank ensures constant pressure for demanding production

Efficient Coolant & Chip Management

• Large 120 L coolant tank

• Designed for continuous industrial cutting

• Ensures longer blade life and cleaner cuts

• Integrated chip evacuation design (manual or optional conveyor)

Heavy-Duty Construction

• Weighs between 1,500 kg – 2,000 kg, depending on configuration

• Built with a robust cast-iron + steel frame for long service life

• Designed to withstand continuous use in high-volume environments
