Strong Cutting Capacity
Round cutting capacity up to 400 mm (16")
Square cutting capacity up to 400 × 400 mm
Handles heavy materials with a maximum workload of 2,500 kg
Automatic Cutting Operation
Automatic shuttle feed for continuous production
Digital length setting ensures precise and repeatable cuts
Integrated piece counter improves production tracking
Powerful Blade & Drive System
Equipped with a 7.5 HP blade motor for stable cutting
Designed to cut solid and bundled materials efficiently
Maintains accuracy even under heavy load conditions
Variable Blade Speed Control
Adjustable blade speed from 50 to 295 FPM
Optimizes cutting performance for different metals
Enhances blade life and surface finish
Hydraulic Clamping System
Full-stroke hydraulic vise for secure material holding
Ensures stable cutting with minimal vibration
Improves operator safety and cutting consistency
Integrated Chip & Coolant Management
Automatic chip conveyor or auger for continuous chip removal
Integrated coolant system supports longer cutting cycles
Keeps cutting area clean and improves blade performance
User-Friendly Control Interface
Microprocessor-controlled operation
Easy setup and simple adjustment of cutting parameters
Designed for efficient day-to-day production use

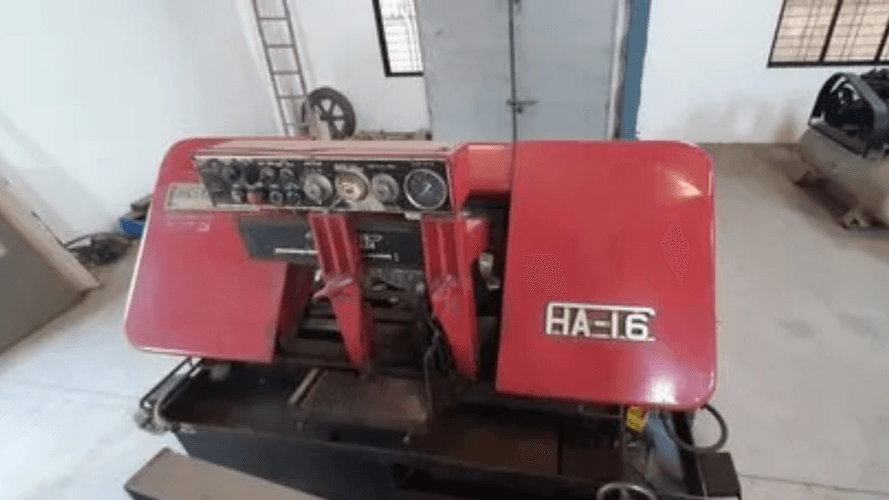

It is an automatic horizontal metal bandsaw.
Approximately 400 mm (16").
Yes, up to 400 × 400 mm.
Yes, it features automatic shuttle feed and cutting cycles.
1.25 inches.
Yes, blade speed is variable.
7.5 HP.
Yes, a full-stroke hydraulic vise is standard.
Through an automatic chip conveyor or auger.
Yes, an integrated coolant system is standard.
Microprocessor-controlled with digital length setting.
Yes, a built-in piece counter is included.
Up to approximately 2,500 kg.
Yes, it is designed for continuous and repetitive cutting.
Automotive, aerospace, heavy machinery, and general metal fabrication.
| Blade Length inches | 180" |
| Min/Max Blade Width | 1.25" to 1.25" |
| Machine Type | Metal |
| Cutting Capacity (Round) | Up to 400 mm (16") |
| Cutting Capacity (Square) | Up to 400 × 400 mm |
| Maximum Work Load | Up to 2,500 kg |
| Blade Thickness | 0.042 inches |
| Blade Speed | Variable, approx. 50–295 FPM |
| Blade Motor Power | 7.5 HP |
| Feed System | Automatic shuttle feed |
| Chip Removal | Automatic chip conveyor / auger |
| Control System | Microprocessor with piece counter |
| Approx. Machine Weight | 4,850 – 6,600 lbs |
| Approx. Dimensions | 9'L × 8'W × 6'H |
