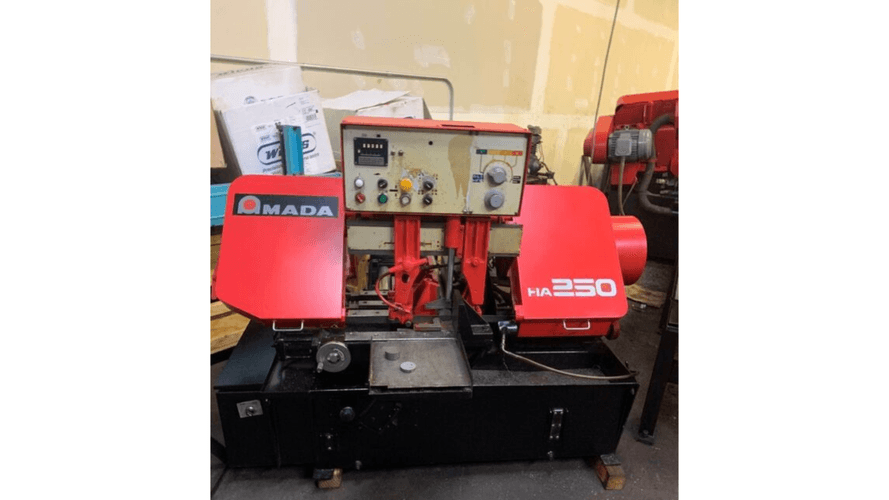

Amada HA-250 Metal Cutting Bandsaw

250 mm Precision Cutting Capacity

• Cuts round stock up to 250 mm (10")

• Rectangular capacity up to 300 × 250 mm

• Ideal for steel bars, billets, castings, and structural shapes.

• Tip: Use low speeds for tool steel and high speeds for mild steel to improve blade life.

Fully Automatic Operation

• The HA-250 features:

  • Automatic material feeding

  • Auto-cut repetition

  • Auto shut-off after cut

• Perfect for continuous batch production.

• Tip: Set required cutting lengths via auto-feed for zero wastage.

High-Durability Blade System

• Comes with a robust blade:

  • 3505 mm length

  • 25 mm width

  • 0.9–0.95 mm thickness

• Provides reduced vibration and clean, smooth cutting.

• Tip: Keep the blade brush clean for optimal performance.

Variable Blade Speed Control

• Speed ranges generally from 20–80 m/min (60–205 FPM), making it suitable for:

  • Mild steel

  • Stainless steel

  • Alloy steel

  • Tool steels

• Tip: Adjust speed based on material hardness for perfect cuts.

Intelligent Hydraulic System

• Includes:

  • Hydraulic blade tensioning

  • Hydraulic feed control

  • Stable clamping system

• Tip: Regularly maintain hydraulic fluid levels for maximum performance.

Auto-Feed Shuttle Vice

• 400 mm single-feed stroke

• High accuracy for repetitive cutting

• Smooth forward and return movement

• Tip: Use shuttle mode to save time during production runs.

Accurate Cutting Control

• Equipped with:

  • Hydraulic pressure and flow control

  • Blade deviation monitor

  • Adjustable downforce

• Ensures high accuracy even on harder materials.

Built for Industrial Durability

• With a machine weight of approx. 1200 kg, the HA-250 ensures rock-solid stability, reduced vibration, and long-term reliability.
