Fully Automatic Cutting Operation
Automatic shuttle vise and indexing for continuous cutting cycles
Reduces manual handling and improves throughput
Ideal for batch and repeat jobs
Optimized Cutting Capacity
Handles rounds up to ~250 mm
Rectangular capacity up to ~300 × 250 mm
Suitable for a wide range of ferrous metal profiles
Variable Blade Speed Control
Stepless blade speed range of 20–90 m/min
Allows optimization for different materials and section sizes
Enhances blade life and surface finish
Upgraded Blade System
Blade size: 3505 mm (L) × 27 mm (W) × 0.9–1.1 mm (T)
Compatible with variable speed drives and automatic tensioning
Optional band deviation monitoring for improved cut accuracy
Hydraulic Power & Clamping
Hydraulic blade tensioning and downfeed control
Split front vise and floating/index vises for secure material gripping
Stable cutting even on difficult or uneven workpieces
Enhanced Chip Management
Optional chip conveyor for automatic chip removal
Keeps cutting area clean and improves operational safety
Reduces downtime for cleaning
Control & Automation Upgrades
Options for PLC control, digital readouts (DRO), and automation logic
Improves repeatability and ease of operation
Suitable for modern production workflows
Robust Industrial Build
Approximate workload capacity of ~1500 kg
Machine weight ~1200–1500 kg ensures stability
Designed for long service life under demanding use

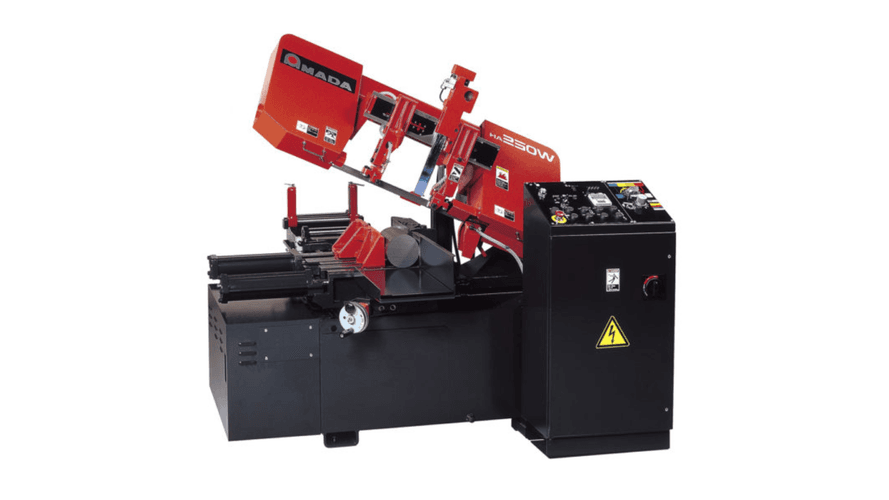

It is a fully automatic horizontal metal bandsaw.
Solid bars, rectangular sections, profiles, and bundled metal stock.
Approximately 250 mm.
Up to around 300 × 250 mm.
Approximately 137 inches (3505 mm).
From 1 inch to 1.25 inches.
Yes, stepless variable speed from 20 to 90 m/min.
Around 3.7 kW (5 HP).
Yes, via a shuttle vise system.
Yes, PLCs, DROs, and band deviation monitors can be added.
Yes, commonly included as a modification or option.
Hydraulic clamping with split and floating vises.
Around 1500 kg.
Yes, it is designed for continuous automatic operation.
Metal fabrication, machine shops, and production cutting facilities.
| Blade Length inches | 137" |
| Min/Max Blade Width | 1" to 1.25" |
| Machine Type | Metal |
| Cutting Capacity (Round) | 250 mm |
| Cutting Capacity (Rectangular) | 300 × 250 mm |
| Blade Thickness | 0.9 – 1.1 mm |
| Blade Speed | 20 – 90 m/min (Variable) |
| Motor Power | 3.7 kW (5 HP) |
| Workload Capacity | 1500 kg |
| Automation | Shuttle Vise, Hydraulic Controls |
| Chip Removal | Optional Chip Conveyor |
| Control Options | PLC, DRO, Band Deviation Monitor |
| Approx. Machine Weight | 1200 – 1500 kg |
