Versatile Cutting Capacity
Round Cutting Capacity: 250 mm (10")
Rectangular Cutting Capacity: Approx. 250 × 300 mm
Suitable for solids, pipes, and structural sections
Tip: Ideal for workshops handling mixed material profiles daily.
Fully Automatic Hydraulic Operation
Fully automatic cutting cycle
Hydraulic control of blade feed, vise clamping, and tensioning
Tip: Automation reduces operator fatigue and improves productivity.
Precision Split Vise System
Split vise clamps material on both sides of the blade
Enhances cutting stability and reduces vibration
Tip: Helps achieve straighter cuts with less burring.
Stepless Variable Blade Speed
Blade Speed Range: Approx. 27–90 m/min (model dependent)
Easily adjustable for different materials
Tip: Slower speeds for harder alloys extend blade life.
Heavy-Duty Blade Specifications
Blade Size: 3505 mm × 34 mm × 1.1 mm
Optimized for accuracy and durability
Tip: Proper blade selection improves surface finish.
Powerful Blade Drive Motor
Motor Power: Approx. 3.7 kW (or 3 HP on some variants)
Consistent cutting performance under load
Tip: Maintains steady feed rate during continuous operation.
Automatic Kerf Compensation
Adjusts cutting feed automatically as blade wears
Maintains dimensional accuracy
Tip: Reduces scrap and rework in batch production.
High Workload Capacity
Maximum Load: Approx. 1500 kg
Supports heavy bars and bundled materials
Tip: Ideal for steel stockists and production cutting lines.
Integrated Hydraulic System
Controls feed pressure, blade tension, and vise force
Smooth and controlled cutting action
Tip: Stable hydraulics improve blade longevity.
Chip Conveyor for Continuous Operation
Efficient chip removal during cutting
Improves workplace cleanliness
Tip: Reduces machine downtime during long shifts.
PLC-Based User-Friendly Controls
Simple interface for easy setup
Quick parameter adjustment
Tip: Minimal training required for operators.
Rigid Industrial Construction
Heavy-duty machine frame
Minimizes vibration and deflection
Tip: Structural rigidity directly improves cut accuracy.

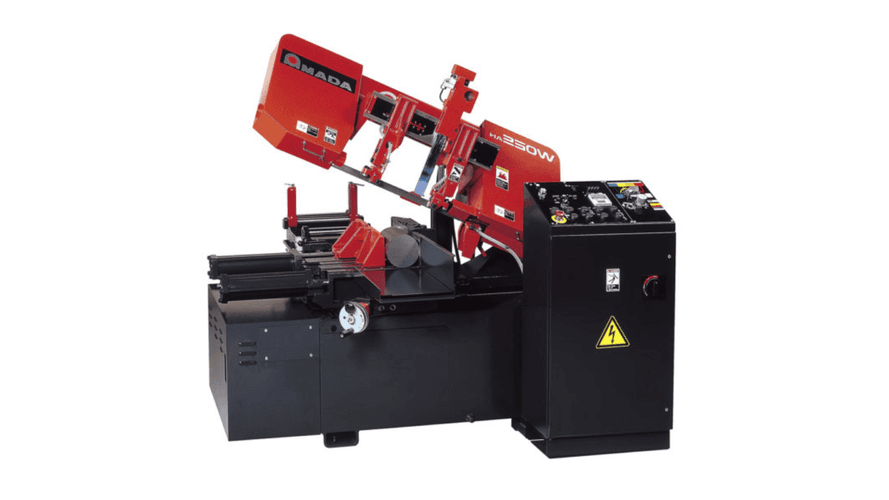

It is a fully automatic horizontal metal bandsaw.
250 mm (10 inches).
Steel, alloy steel, pipes, and metal profiles.
3505 mm length × 34 mm width × 1.1 mm thickness.
Yes, it features stepless variable blade speed control.
Approximately 27–90 m/min, depending on configuration.
Yes, it is fully automatic with hydraulic controls.
It improves stability and reduces burr formation.
Yes, automatic kerf compensation helps maintain accuracy.
Approximately 1500 kg.
Yes, many configurations include a chip conveyor.
A motor rated around 3.7 kW (or 3 HP on some models).
Yes, it is designed for industrial-level continuous use.
Very user-friendly with PLC-based controls.
Fabrication shops, steel service centers, and manufacturers.
| Blade Length inches | 138" |
| Min/Max Blade Width | 1.25" to 1.25" |
| Machine Type | Metal |
| Cutting Capacity – Round | 250 mm (10") |
| Cutting Capacity – Rectangle | Approx. 250 × 300 mm |
| Blade Speed | Stepless, approx. 27–90 m/min |
| Blade Motor Power | Approx. 3.7 kW / 3 HP |
| Automation | Fully Automatic, Hydraulic |
| Workload Capacity | Approx. 1500 kg |
| Machine Dimensions (W×L×H) | Approx. 1945 × 2366 × 1285 mm |
| Machine Weight | Approx. 1500 kg |
