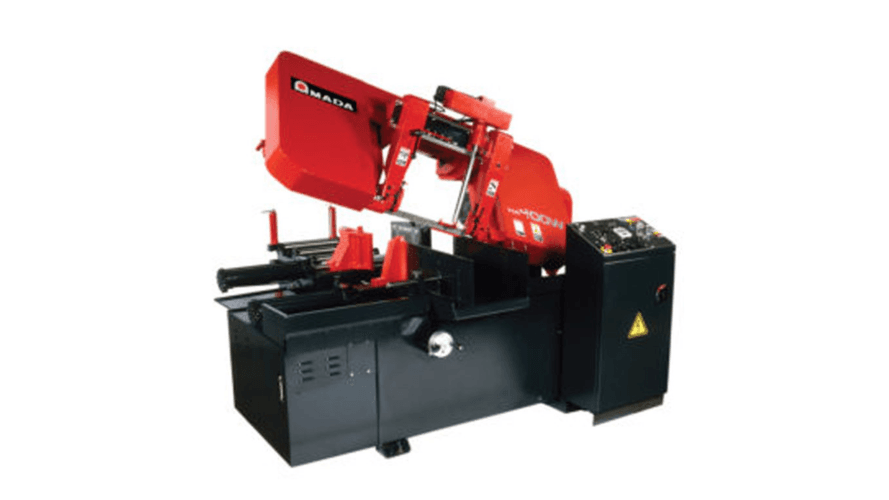

Amada HA-400-W – Heavy-Duty Automatic Horizontal Bandsaw

Amada HA-400-W
Image not available

HA-400-W

Roll over image to zoom in
HA-400-W
Amada 406WA Carbide Guide Set — 360° video overview
Amada HA-400-W
Amada 406WA Carbide Blade Guide Kit Product Overview
View Spec

MAIN FEATURES

  • Robust Cutting Capacity

    • Cuts up to 16" round stock

    • Handles approx. 16" x 16" rectangular materials

    • Ideal for solid bars, blocks, alloys, tubes, and profiles

    • Built for continuous, large-volume production cycles

  • Heavy-Duty Saw Blade System

    • 180" long, 1.5" wide blade

    • Designed for straight, stable cutting with long blade life

    • Hydraulic blade tensioning maintains consistent pressure

    • Precision carbide guides minimize blade deviation

  • High-Performance Saw Drive

    • Industrial-grade motor delivers smooth, reliable power

    • Variable blade speed for cutting a wide range of metals

    • Maintains stable torque in demanding applications

  • Automatic Operation for High Productivity

    • Fully automatic cutting cycle boosts throughput

    • Multi-stroke automatic workfeed for long bars

    • Hydraulic vises ensure secure, accurate clamping

    • Ideal for unattended or semi-attended long-run production

  • Vibration-Resistant, Durable Construction

    • Heavy-duty frame minimizes noise and vibration

    • Built for long, continuous industrial operation

    • High rigidity ensures precise tolerances and clean finishes

  • User-Friendly Controls

    • Classic Amada control interface

    • Easy adjustments for blade speed, feed rate, and vise pressure

    • Quick setup for repeat production jobs

COMMON QUESTIONS

It cuts up to approximately 16" round and 16" x 16" rectangular materials.

Yes, it is a fully automatic horizontal bandsaw.

Yes, with appropriate bundle clamp accessories installed.

A 1.5" wide, 180-inch long metal-cutting blade.

Yes—hydraulic tensioning is a standard feature.

Mild steel, alloy steel, stainless steel, tool steels, solid bars, tubes, and structural profiles.

Absolutely—it is designed for heavy-duty industrial production.

Yes, the auto-feed system provides multi-stroke bar feeding.

Yes, it includes variable blade speed control.

Steel service centers, fabrication shops, machine shops, automotive plants, aerospace parts, and metal distributors.

It is a mid-sized industrial saw and requires adequate floor space for feeding long bars.

No—Amada machines are known for reliability and ease of maintenance.

Most units are equipped with a chip conveyor for clean operation.

Yes, with appropriate blade selection and speed adjustments.

Yes—the design allows fast blade access for quick changeovers.

SPECIFICATION
PRODUCT VIDEO
DOWNLOADABLE RESOURCES
REVIEWS
BLOG

SPECIFICATIONS

Blade Length inches180"
Min/Max Blade Width1.5" to 1.5"
Machine TypeMetal
Round CapacityApprox. 16"
Rectangular CapacityApprox. 16" x 16"
Bundle CuttingYes (with accessories)
Blade SpeedVariable (approx. 56-295 FPM depending on variant)
Blade TensionHydraulic
Saw Drive MotorIndustrial-duty electric motor
Hydraulic MotorHeavy-duty hydraulic system
Coolant SystemIntegrated
Motor(7.5) HP (5.5) kw
Blade GuidesCarbide guides
Chip ConveyorIncluded on most units
Machine TypeAutomatic Horizontal Metal Bandsaw
Machine weightApproximately (4,851) lbs (2,200) kg
Table height31.5 inches
Hydraulic Pump2 HP
Cutting Fluid Pump1/4 HP
