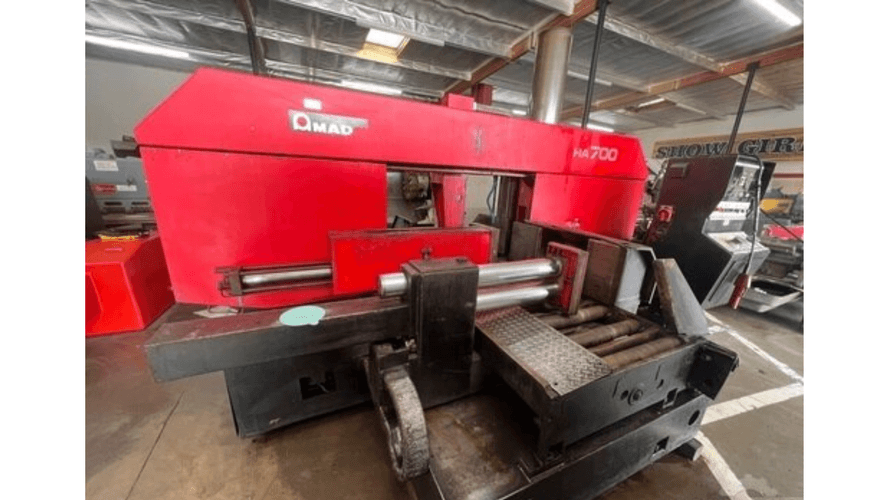

Amada HA-700 Heavy-Duty Metal Bandsaw Machine

Extra-Large Cutting Capacity

• Cuts round materials up to 27.5 inches (700 mm)

• Rectangular cutting capacity up to 700 x 800 mm

• Designed for oversized billets, forgings, and heavy structural steel

Dual Column Structural Design

• Dual-column frame provides exceptional rigidity

• Minimizes vibration during heavy cuts

• Ensures straight, accurate cutting over long production runs

High-Power Cutting System

• 10 HP blade motor delivers consistent torque for thick materials

• Handles high-density alloys and large cross-sections with ease

CNC-Controlled Operation

• CNC-controlled downfeed for precise cutting pressure

• Programmable cutting cycles improve productivity and repeatability

• Ideal for unattended or semi-unattended operation

Advanced Blade Guidance & Tensioning

• Hydraulically clamped tungsten carbide blade guides

• Hydraulic blade tensioning ensures stable blade tracking

• Extends blade life and improves surface finish

Variable Speed Inverter Drive

• Wide blade speed range for different materials

• Optimized cutting parameters reduce wear and energy consumption

Automatic Guide Arm Positioning

• Guide arms automatically adjust to material width

• Improves cutting accuracy and reduces setup time

Production-Ready Features

• Chip conveyor for continuous chip removal

• Designed to handle workloads up to 5,500 lbs

• Built for continuous industrial-duty cycles
