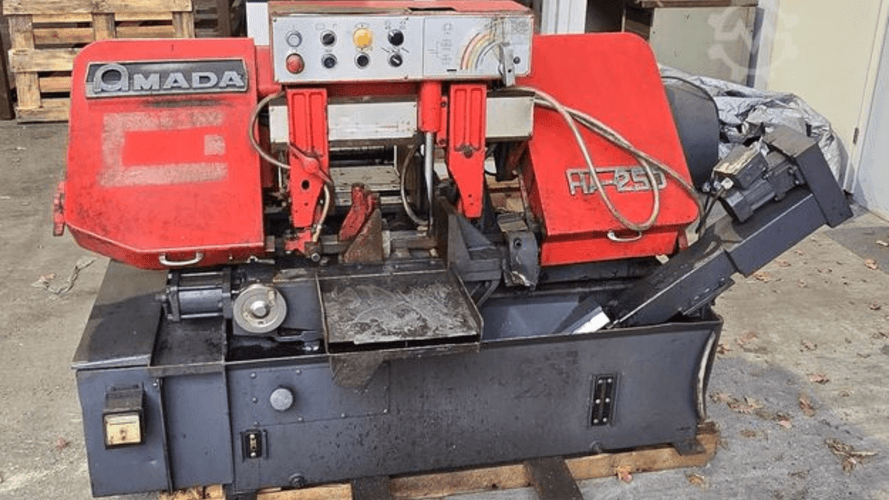

Amada HDA-250 Semi-Automatic Metal Bandsaw

MAIN FEATURES

Versatile Metal Cutting Capacity
Round Cutting Capacity: Up to 250 mm (10")
Angular / Rectangular Capacity: Approx. 250 mm (H) × 300 mm (W)
Suitable for solid bars, pipes, tubes, and profiles
Tip: Ideal for medium-volume production and general fabrication work.

Semi-Automatic / Automatic Operation
Semi-automatic cutting cycle with auto-feed capability
Preset cut lengths for repetitive jobs
Manual and automatic mode selection
Tip: Semi-automatic operation balances productivity with operator control.

Heavy-Duty Bandsaw Blade System
Blade Width: 25 mm (1")
Blade Length: Approx. 3500 mm (138")
Designed for stable, vibration-free metal cutting
Tip: Use finer tooth blades for thin-wall tubing and coarser teeth for solids.

Variable Blade Speed Control
Blade Speed (50Hz): ~66 – 262 ft/min
Blade Speed (60Hz): ~79 – 262 ft/min
Speed adjustment for different metals and profiles
Tip: Slower speeds improve blade life on stainless and alloy steels.

Powerful Motor Configuration
Blade Drive Motor: Approx. 3 HP
Hydraulic Pump Motor: Approx. 1 HP
Ensures smooth cutting and consistent down-feed pressure
Tip: Stable hydraulic pressure improves surface finish and accuracy.

Hydraulic Vise & Down-Feed Control
Automatic hydraulic vise clamping
Adjustable hydraulic down-feed speed
Secure material holding during the cut
Tip: Proper vise pressure prevents blade drift and material movement.

Digital Cut Counter & User Controls
Digital cut counter for production tracking
Manual/auto mode switch
Simple, operator-friendly control layout
Tip: Cut counters help reduce errors in batch production.

Blade Deviation Monitoring
Monitors blade tracking during cutting
Improves accuracy and reduces scrap
Tip: Regular monitoring helps prevent premature blade failure.

Durable Industrial Construction
Heavy-duty frame designed for long service life
Built to withstand continuous shop use
Tip: Rigid construction minimizes vibration and improves cut straightness.

Optional Chip Management
Chip conveyor often available as an option
Keeps work area cleaner during extended cutting cycles
Tip: Effective chip removal improves coolant performance.

COMMON QUESTIONS

Up to 250 mm (10") round material.

It is semi-automatic, with automatic feed and preset cut length capabilities.

Approximately 3500 mm length × 25 mm width.

Carbon steel, alloy steel, stainless steel, and structural metals.

Yes, it supports angular and rectangular cutting within capacity limits.

Yes, it features variable blade speed control.

Approximately 66–262 ft/min (50Hz) or 79–262 ft/min (60Hz).

Yes, it uses an automatic hydraulic vise.

Often optional, depending on configuration.

Approx. 3 HP blade drive motor with a 1 HP hydraulic pump.

Yes, ideal for small to medium production runs.

Yes, a digital cut counter is typically included.

Yes, it includes a blade deviation monitoring feature.

Very user-friendly, suitable for operators with basic training.

Fabrication shops and manufacturers needing reliable, accurate metal cutting without CNC complexity.
