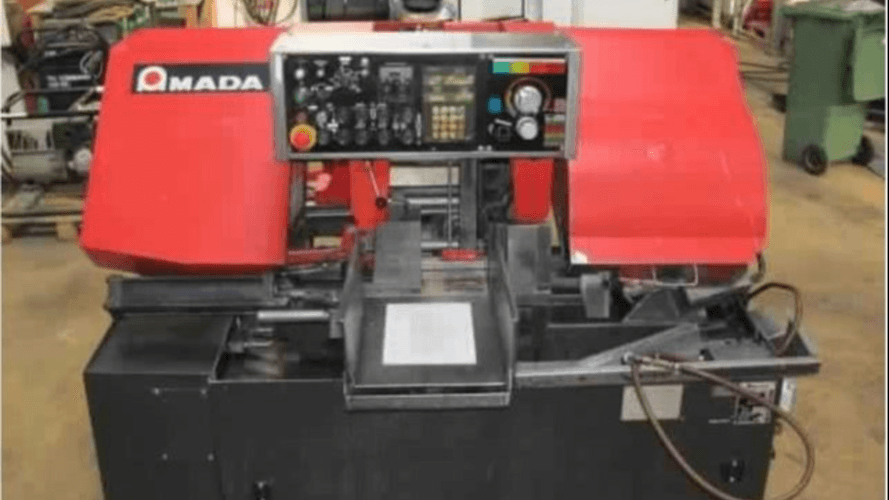

Amada HFA-330 Automatic Horizontal Metal Bandsaw

Strong Cutting Capacity for Medium-Size Materials

• Cutting Capacity (Round/Square): Approx. 330 mm (13")

• Suitable for solids, pipes, and profiles

• Tip: Ideal for medium-volume production and precision batch cutting.

Fully Automatic Horizontal Bandsaw Design

• Automatic cutting cycle from clamping to cut-off

• Reduces manual handling and operator fatigue

• Tip: Automation ensures repeatable accuracy across multiple cuts.

NC / CNC Control System

• NC or CNC control (varies by model/year)

• Enables precise programming of cut length and quantity

• Tip: CNC versions are best for high-mix, high-repeat production.

High-Efficiency Blade Specifications

• Blade Length: ~4100 mm (161")

• Blade Width: 34 mm (1.25")

• Blade Thickness: ~1.1 mm

• Tip: A wider blade improves straightness and cutting stability.

Variable Blade Speed Control

• Blade Speed Range: Approx. 15–90 m/min

• Adjustable for different materials

• Tip: Match blade speed to material hardness for optimal blade life.

Hydraulic Pressure & Flow Control

• Adjustable cutting pressure

• Maintains smooth cutting action

• Tip: Proper pressure settings reduce vibration and burr formation.

Split Front Vise for Reduced Burr

• Supports material on both sides of the blade

• Minimizes material movement during cutting

• Tip: Split vise design significantly improves cut surface finish.

Hydraulic Blade Tensioning

• Maintains correct blade tension automatically

• Prevents blade deflection and premature wear

• Tip: Correct tension improves accuracy and blade lifespan.

Automatic Chip Conveyor

• Continuous chip removal during operation

• Keeps cutting area clean

• Tip: Improves productivity and reduces machine downtime.

Built-In Part Counter

• Tracks completed cuts automatically

• Improves production monitoring

• Tip: Useful for batch production and job tracking.

Wheel Motion Detector (Blade Safety)

• Detects blade breakage or jamming

• Automatically stops the machine

• Tip: Protects both the operator and the machine.

Heavy-Duty Industrial Construction

• Rigid frame minimizes vibration

• Designed for long-term industrial use

• Tip: Stability directly impacts cutting accuracy.

Multi-Material Cutting Capability

• Suitable for steel, aluminum, and alloy materials

• Tip: Versatile enough for mixed-material production lines.

Operator-Friendly Layout

• Simple control interface

• Easy access for blade change and maintenance

• Tip: Reduced setup time increases daily productivity.
