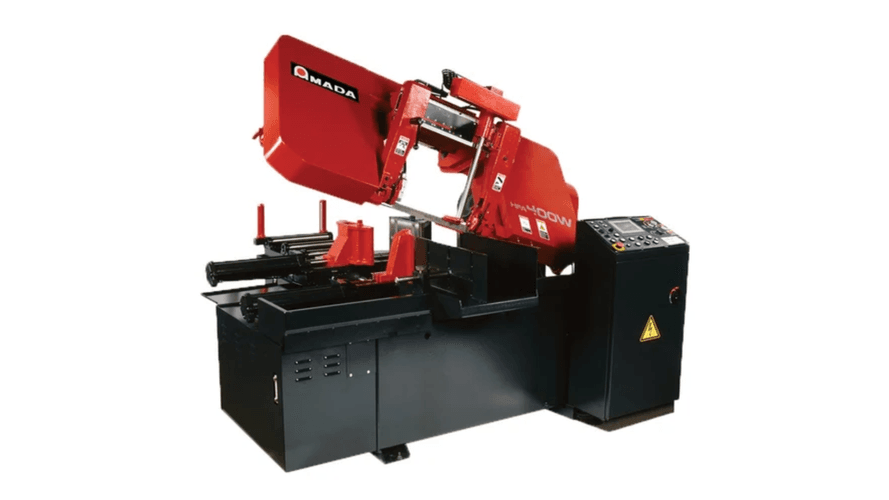

Amada HFA-400-LUL Fully Automatic Metal Bandsaw

High-Capacity Industrial Cutting

• Round Material: Up to 400–420 mm

• Rectangular Material: Up to 400 × 400 mm

• Suitable for solid bars, tubes, profiles, and heavy sections

• Tip: Ideal for medium to large stock cutting with tight tolerances.

Fully Automatic Operation

• Automatic cutting cycles for repetitive production

• Programmable cut length and quantity

• Reduces operator dependency and increases throughput

• Tip: Best suited for batch production and continuous cutting lines.

Shuttle-Type Index Mechanism

• Precision shuttle feed system

• Accurate material positioning for repeated cuts

• Minimizes setup time

• Tip: Ensures consistent cut lengths even during long production runs.

Heavy-Duty Bandsaw Blade System

• Blade Dimensions: 4570 mm × 41 mm × 1.3 mm

• Blade Width: 1.5"

• Designed for rigidity and straight cutting

• Tip: Wider blades improve stability on larger cross-sections.

Stepless Variable Blade Speed

• Blade Speed Range: 15 – 90 m/min (stepless)

• Adjustable for mild steel, alloy steel, and stainless steel

• Tip: Lower speeds help control heat on hard materials.

Powerful Cutting Motor

• Saw Motor Power: 5.5 kW

• Maintains stable torque during heavy cuts

• Tip: Consistent motor output enhances blade life and surface finish.

Hydraulic Blade Tension & Vise Clamping

• Automatic hydraulic blade tensioning

• Hydraulic clamping for secure material holding

• Tip: Proper hydraulic tension reduces blade deviation and breakage.

Full-Stroke Front & Rear Vises

• Full-stroke hydraulic vises

• Minimizes remnant material waste

• Strong grip for large workpieces

• Tip: Improves yield and reduces scrap costs.

Automatic Chip Conveyor

• Powered chip conveyor for continuous chip removal

• Keeps cutting area clean and efficient

• Tip: Essential for long production shifts and heavy material cutting.

User-Friendly Control Panel

• Touch panel for cut length and quantity programming

• Dial controls for feed rate and cutting force

• Easy operation for shop-floor users

• Tip: Simple controls reduce training time for operators.

Rigid Industrial Construction

• Heavy-duty steel frame

• Designed to minimize vibration and deflection

• Tip: A rigid frame ensures better accuracy and longer machine life.
