Large Cutting Capacity
Rectangular cutting up to 700 × 400 mm at 0°
Rectangular cutting up to 400 × 400 mm at 45°
Round cutting capacity up to 700 mm
Designed for heavy sections, profiles, and solid bars
Rigid Double Column Construction
Dual column frame ensures high stability during cutting
Minimizes vibration for improved blade life
Maintains accuracy even during high-speed operations
CNC-Controlled Cutting System
CNC control for feed rate, cutting cycles, and machine functions
Hybrid CNC option available for enhanced automation
Improves repeatability and reduces setup time
Advanced Vise Technology
Full-stroke hydraulic vises for secure clamping
Split front vise design reduces burr formation
Optimizes material utilization by minimizing remnant length
Variable Blade Speed Control
Blade speed range from 15 to 100 m/min
Allows fine tuning for different metals and profiles
Improves surface finish and cutting efficiency
Intelligent Chip Removal System
3D chip remover with wire brush for effective chip clearing
Wide chip conveyor ensures continuous operation
Maintains clean cutting area and reduces downtime
Smart Workpiece Handling
Smart Balance Positioner simplifies remnant removal
Automatic cutting fluid supply supports consistent cutting
Operator-friendly layout enhances productivity and safety

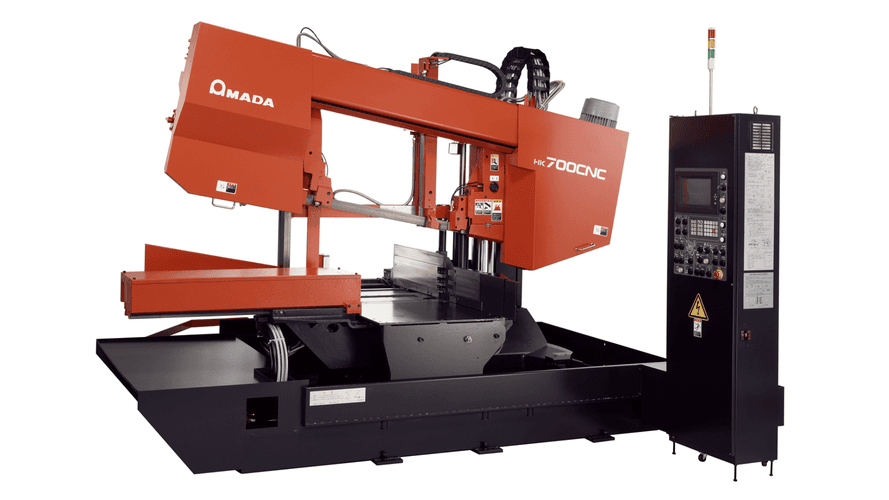

It is a CNC-controlled horizontal metal bandsaw with a double column design.
Up to approximately 700 mm.
Yes, it supports cutting at 0° and 45°.
Up to 700 × 400 mm.
Approximately 5890 mm long and 54 mm wide.
Yes, blade speed is variable from 15 to 100 m/min.
CNC control, with a hybrid CNC option available.
It reduces burr formation and improves material yield.
Yes, it features a 3D chip remover and wide chip conveyor.
Yes, full-stroke hydraulic vises are standard.
Approximately 3.7 kW (5 HP).
Yes, it is designed for large and heavy workpieces.
Yes, automatic cutting fluid supply is included.
Yes, it is ideal for continuous and batch production.
Improved rigidity, higher cutting accuracy, and longer blade life.
| Blade Length inches | 232" |
| Min/Max Blade Width | 2" to 2.625" |
| Machine Type | Metal |
| Cutting Capacity (Rectangular 0°) | 700 × 400 mm |
| Cutting Capacity (Rectangular 45°) | 400 × 400 mm |
| Cutting Capacity (Round) | Up to 700 mm |
| Blade Thickness | 1.3 / 1.6 mm |
| Blade Speed | 15 – 100 m/min (Variable) |
| Blade Motor Power | 3.7 kW (Approx. 5 HP) |
| Hydraulic Pump Motor | 1.5 kW (Approx. 2 HP) |
| Power Requirement | Approx. 10 kVA |
| Machine Design | Double Column |
| Chip Removal | 3D chip remover with wire brush & conveyor |
| Control System | CNC (Hybrid CNC available) |
