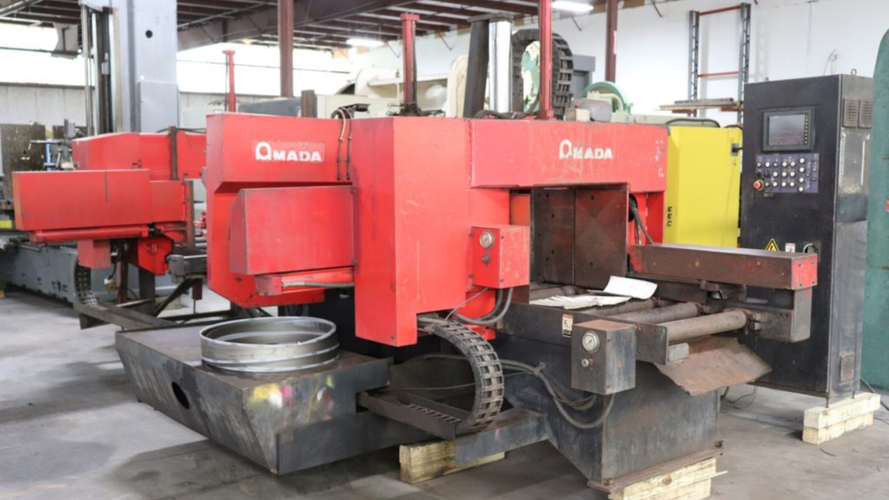

The Amada HKB-6050 delivers high-precision, heavy-duty cutting for large metal stock in demanding production settings. With a 20" round and 24" x 20" rectangular cutting capacity, it’s designed for solid bars, structural steel, and large blocks. Its CNC automation ensures consistent performance, making it ideal for steel service centers, fabrication shops, aerospace, and heavy manufacturing.
Exceptional Cutting Capacity
Cuts up to 20" round stock effortlessly
Handles large 24" x 20" rectangular profiles
Fully capable of bundle cutting with powerful multi-side vises
Ideal for high-throughput shops without sacrificing accuracy
High-Performance Blade System
19’ 4” x 2” x 0.050” industrial-grade blade
Variable blade speed (49 – 325 FPM) for diverse materials
Hydraulic blade tensioning ensures consistent cutting strength
Blade deviation monitor for superior accuracy
Powerful, Reliable Drive System
7.5 HP saw drive motor for tough materials
2 HP hydraulic motor for smooth vise and carriage movement
AC servo-driven feed with rack-and-pinion precision
Provides smooth, stable cutting during long production cycles
Advanced CNC Automation
Amada CNC Control for easy programming
Automates cutting parameters, blade speed, vise pressure, and guide adjustments
Reduces operator involvement, increases repeatability
Ideal for high-volume, 24/7 automation
Superior Material Handling
78.7" rear indexing vise stroke for long-bar processing
23" front pulling vise for added stability during feed
Full-capacity bundle vise clamps material from both sides and top
Shaft-less chip conveyor improves chip evacuation, ensuring precision and faster cycle times
Industrial-Grade Build Quality
Machine weight: 15,215 lbs (6,900 kg) for superior vibration damping
Large footprint: 169.8" W × 226.1" L × 91.7" H
Designed for continuous, heavy-duty industrial use
It cuts carbon steel, alloy steel, tool steel, stainless steel, cast iron, and large structural materials.
The machine cuts up to 20 inches round.
Yes—its full-capacity bundle vise system clamps securely on all sides.
Blade size is 19' 4" x 2" x 0.050".
Yes, the HKB-6050 is a CNC automatic horizontal bandsaw.
It features Amada CNC Control with multi-parameter automation.
Yes, with its 78.7" rear indexing stroke, it handles long materials easily.
It uses a 7.5 HP saw drive motor.
Yes, automated hydraulic tensioning is built in.
Blade speed ranges from 49 to 325 FPM.
Yes—it comes with a shaft-less chip conveyor.
It supports up to 9,923 lbs of material weight.
Yes, it includes automatic guide width adjustment.
Absolutely—its CNC automation and heavy-duty build make it ideal for high-volume production.
The machine weighs 15,215 lbs (6,900 kg).
| Blade Length inches | 232" |
| Min/Max Blade Width | 2" to 2" |
| Machine Type | Metal |
| Round Capacity | 20" |
| Rectangular Capacity | 24" x 20" |
| Work Load Capacity | 9,923 lbs |
| Blade Size | 19' 4" x 2" x 0.050" |
| Blade Speed | 49 – 325 FPM |
| Blade Tension | Hydraulic |
| Saw Drive Motor | 7.5 HP |
| Hydraulic Motor | 2 HP |
| Feed System | AC Servo Motor with Rack & Pinion |
| Rear Indexing Stroke | 78.7" |
| Front Pulling Vise Stroke | 23" |
| Control System | Amada CNC Control |
| Guide Width Adjustment | Automatic |
| Blade Deviation Monitor | Yes |
| Bundle Cutting Capability | Yes |
| Machine Dimensions | 169.8" W × 226.1" L × 91.7" H |
| Machine Weight | 15,215 lbs (6,900 kg) |
