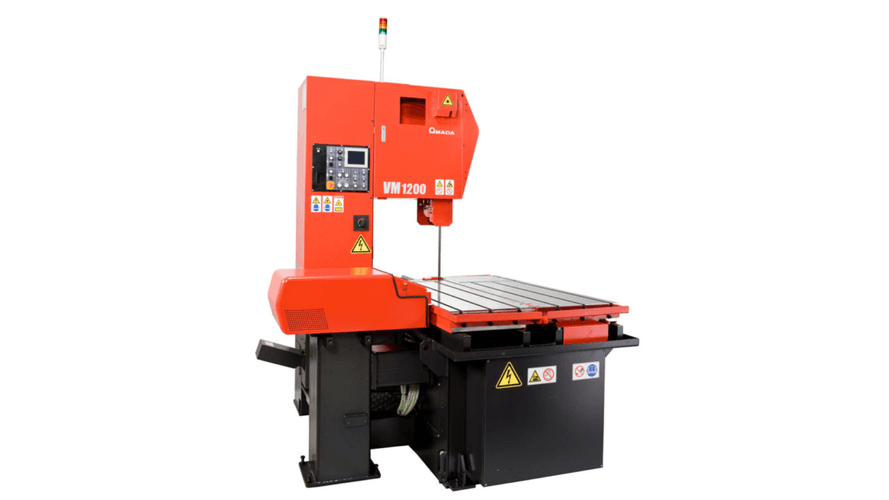

Amada VM-1200 Vertical Metal Bandsaw Machine

Large Cutting Envelope

• Cutting capacity up to 1200 mm (L) × 500 mm (H)

• Throat depth of 500 mm supports wide workpieces

• Suitable for plates, billets, and complex profiles

High-Strength Blade System

• Uses a 2-inch (38 mm) wide blade for excellent rigidity

• Hydraulic blade tensioning up to 2,200 kgf ensures stable cutting

• Designed for burr-free, high-quality cuts

Variable Blade Speed (Inverter Controlled)

• Blade speed range of 15–90 m/min

• Optimized cutting for different materials

• Improves surface finish and extends blade life

Powerful Drive & Servo Feed

• 7.5 HP (5.5 kW) blade motor for demanding cuts

• Servo-controlled AC motor feed for precise movement

• Smooth, vibration-free cutting even under load

Advanced CNC-Lite Control

• CNC-Lite system with intuitive operation

• Automatic blade guide positioning and brush adjustment

• Integrated laser marking for easy alignment and setup

Hydraulic Clamping & Functions

• Hydraulic systems manage blade tension, vise clamping, and auxiliary functions

• Ensures secure workpiece holding and consistent cutting pressure

• Enhances operator safety and productivity

Heavy-Duty Work Table

• Table load capacity up to 2,000 kg

• Built for stable handling of heavy materials

• Designed for continuous industrial use

Robust Dual-Column Construction

• Rigid frame minimizes vibration

• Maintains accuracy during long cutting cycles

• Built for demanding production environments
