Large Cutting Capacity for Plate & Block Cutting
Maximum cutting size of approximately 2500 mm (L) × 500 mm (H)
Long feed stroke of 2550 mm for extended cutting operations
Ideal for large plates, dies, and fabricated metal components
High-Performance Blade System
Uses a 1.5-inch wide bandsaw blade for stable vertical cutting
Hydraulic blade tensioning ensures consistent blade performance
Designed for smooth cutting of thick and hard materials
Variable Blade Speed Control
Inverter-controlled blade speed range of 10–90 m/min
Allows optimal speed selection for different metals
Improves cutting accuracy and blade life
Servo-Driven Feed System
AC servo motor with rack-and-pinion drive
Provides precise, smooth, and repeatable cutting motion
Enhances accuracy for straight and contour cutting
Advanced CNC-Lite Control
CNC-Lite control with auto setup functions
Touch panel interface for easy operation
Hydraulic pressure and flow control for fine cutting adjustment
Automatic Blade Cleaning System
Automatically adjustable wire brush
Maintains blade cleanliness during cutting
Reduces downtime and improves surface finish
Heavy-Duty Industrial Construction
Rigid frame minimizes vibration
Designed for continuous industrial use
Supports heavy workpieces with stable table height

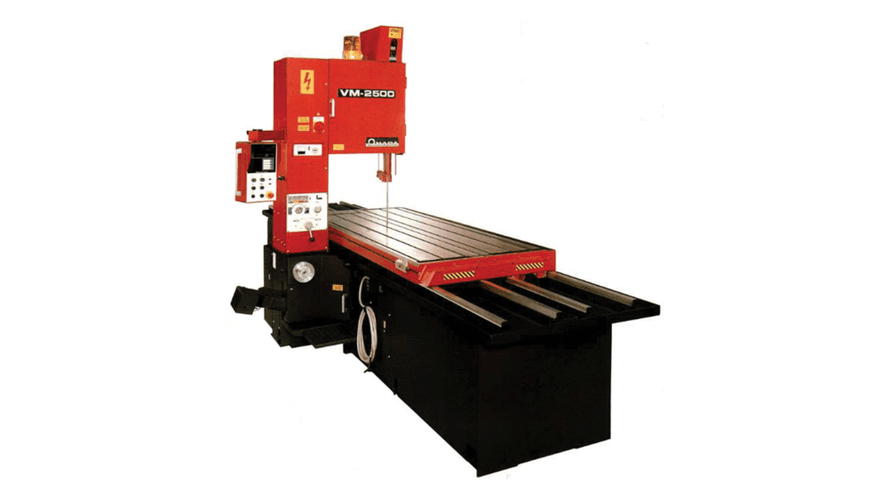

It is a vertical metal bandsaw designed for large-format cutting.
Approximately 2500 mm × 500 mm.
Around 2550 mm.
1.5 inches.
Yes, variable blade speed is supported.
Approximately 10–90 m/min.
Through a hydraulic blade tensioning system.
CNC-Lite with touch panel operation.
Yes, an AC servo motor with rack-and-pinion drive.
With an automatically adjustable wire brush.
5.5 kW (7.5 HP).
Yes, it supports straight and profile cutting.
Around 5,500 kg.
Approximately 1005 mm.
Tool rooms, fabrication units, die and mold workshops, and heavy manufacturing.
| Blade Length inches | 184" |
| Min/Max Blade Width | 2" to 2" |
| Machine Type | Metal |
| Max Cutting Capacity (L × H) | Approx. 2500 × 500 mm |
| Feed Stroke | Approx. 2550 mm |
| Blade Thickness | 1.3 mm |
| Blade Speed | 10–90 m/min |
| Blade Tension | Hydraulic |
| Saw Blade Motor | 5.5 kW (7.5 HP) |
| Hydraulic Pump Motor | 1.5 kW (2 HP) |
| Feed Drive | AC Servo Motor with Rack & Pinion |
| Wire Brush | Automatically adjustable |
| Table Height | Approx. 1005 mm |
| Approx. Machine Weight | 5,500 kg |
