Accurate Cutting Capacity
Maximum cutting size of 420 mm (L) × 150 mm (H)
Throat depth of 300 mm for flexible workpiece handling
Ideal for flat bars, plates, and small structural sections
High-Precision Blade System
Uses a 1.25-inch wide bandsaw blade
Designed for stable and accurate vertical cutting
Supports clean cuts with minimal blade deviation
Inverter-Controlled Variable Blade Speed
Adjustable blade speed from 15 to 90 m/min
Optimizes cutting performance for different metal types
Enhances surface finish and blade life
Powerful & Efficient Drive
Equipped with a 2.2 kW (3 HP) blade motor
Provides smooth cutting even during continuous operation
Energy-efficient performance for daily production use
NC Backgauge & Length Control
NC-programmable backgauge with end stopper
Ensures precise and repeatable length setting
Reduces setup time and material waste
Hydraulic Clamping System
Full-stroke hydraulic vise for secure material holding
Minimizes vibration during cutting
Improves operator safety and accuracy
Operator-Friendly Control Panel
Integrated control panel for main machine functions
Simple parameter adjustment and easy operation
Designed for fast setup and reliable production
Built-In Safety Features
Automatic stop on overload, blade break, or jamming
Enhances machine and operator safety
Supports uninterrupted, dependable operation

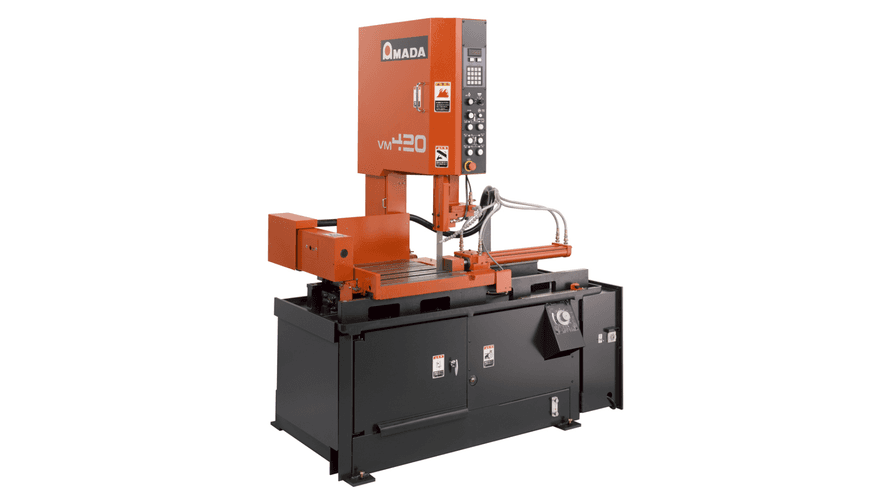

It is a vertical metal bandsaw.
420 mm × 150 mm.
Approximately 300 mm.
1.25 inches.
Yes, inverter-controlled variable blade speed.
15–90 m/min.
2.2 kW (3 HP).
Yes, for accurate length setting.
Using a full-stroke hydraulic vise.
Optional chip conveyor and automatic chip removal are available.
200 kg.
Approximately 750 mm.
Automatic stop for overload, blade break, and jams.
Yes, it is designed for high-accuracy applications.
Tool rooms, fabrication workshops, and precision manufacturing.
| Blade Length inches | 137.9" |
| Min/Max Blade Width | 1.25" to 1.25" |
| Machine Type | Metal |
| Cutting Capacity (L × H) | 420 × 150 mm |
| Throat Depth | 300 mm |
| Blade Thickness | 1.1 mm |
| Blade Speed | 15–90 m/min (inverter controlled) |
| Blade Motor Power | 2.2 kW (3 HP) |
| Work Load Capacity | 200 kg |
| Backgauge | NC programmable |
| Table Height | 750 mm |
| Machine Dimensions (W × D × H) | 1515 × 830 × 1874 mm |
| Machine Weight | Approx. 900 kg |
| Safety Features | Overload, blade break & jam stop |
