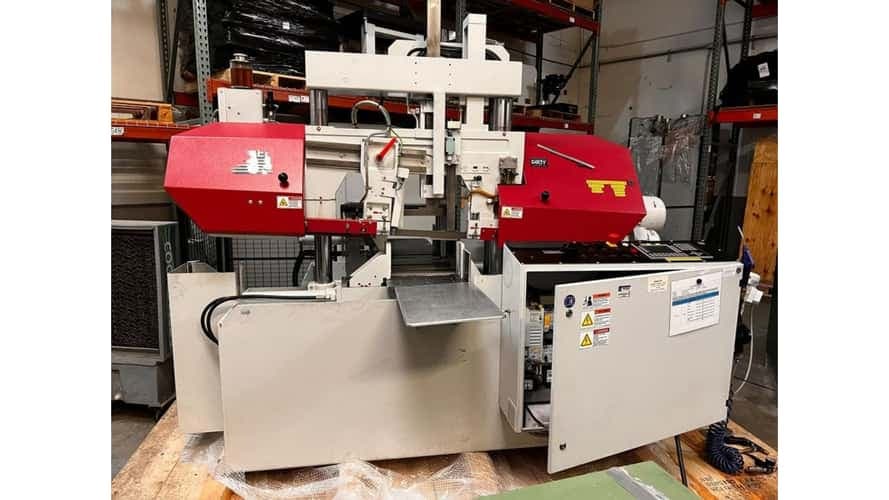

High Cutting Capacity – 260 mm
At 90° cutting angle:
Round: 260 mm (10.2")
Square: 260 x 260 mm (10.2" x 10.2")
Flat (W x H): 300 x 260 mm (11.8" x 10.2")
For miter versions at 45°:
Round: 260 mm
Flat: 260 x 260 mm
This flexibility makes it ideal for structural steel, solid bars, bundles, and pipes.
Rigid Twin-Column Construction
Parallel down-feed system
Vibration-minimized cutting
High frame stability
Improved blade guidance accuracy
The twin-column design ensures straight cuts and extended blade life even under heavy-duty cutting.
Variable Blade Speed Control
Stepless speed adjustment
Speed range: 20 – 140 m/min
Approx. 65 – 459 FPM
Allows operators to optimize cutting speed based on material type and cross-section thickness.
Optimized Saw Blade System
Blade Length: 4,640 mm (183 inches)
Blade Width: 1.25 inches (34 mm)
Blade Thickness: 1.1 mm (.042")
Compatible with high-performance bi-metal blades
Designed for smooth tracking and efficient metal cutting.
Powerful Industrial Drive Motor
Main Drive Motor: 4 kW to 5.5 kW
Output: 5.4 HP to 7.4 HP
Suitable for continuous industrial cutting
Delivers consistent torque across varying material grades.
Hydraulic Clamping System
Secure hydraulic vice
Strong workpiece fixation
Reduces vibration during cutting
Enhances cut precision
Ensures safe and accurate material holding.
Automatic Feed System (HBP-263A Variant)
Feed Stroke: 400 mm per stroke
Multi-stroke capability up to 142 inches
Ideal for batch and repetitive cutting
Improves productivity in production setups.
Integrated Cooling System
Coolant pump included
Reduces blade wear
Improves surface finish
Prevents overheating during heavy cutting
Ergonomic Working Height
Working Height: 800 – 813 mm
Comfortable for operator use
Designed for efficient material loading
Industrial-Grade Build Quality
Machine Weight: 1,800 – 2,000 kg
Compact footprint for workshop installation
Easy access for maintenance and blade replacement
Up to 260 mm round and 300 x 260 mm rectangular at 90°.
Yes, the HBP-263A offers automatic feeding and cutting cycles.
Approximately 4,640 mm x 34 mm x 1.1 mm (183" x 1.25").
Between 4 kW and 5.5 kW depending on configuration.
Yes, miter models can cut at 45°.
Yes, continuously variable from 20 to 140 m/min.
Carbon steel, structural steel, stainless steel, alloy steel, and profiles.
Rigid twin-column design for precision cutting.
Yes, hydraulic vice system is standard.
Yes, integrated cooling system for improved blade life.
Steel service centers, fabrication shops, manufacturing units, and engineering workshops.
Approximately 1,800 – 2,000 kg.
Around 800 to 813 mm for ergonomic operation.
Yes, especially the automatic HBP-263A variant.
For German engineering, cutting precision, long blade life, and reliable industrial performance.
| Blade Length inches | 183" |
| Min/Max Blade Width | 1.25" to 1.25" |
| Machine Type | Metal |
| Cutting Capacity Round (90°) | 260 mm |
| Cutting Capacity Square (90°) | 260 x 260 mm |
| Cutting Capacity Flat (90°) | 300 x 260 mm |
| Cutting Capacity (45° Miter) | 260 mm round |
| Blade Thickness | 1.1 mm |
| Blade Speed | 20 – 140 m/min |
| Main Motor Power | 4 – 5.5 kW |
| Feed Stroke (Auto) | 400 mm |
| Multi-Stroke Feed | Up to 3,600 mm |
| Working Height | 800 – 813 mm |
| Machine Weight | 1,800 – 2,000 kg |
