Large 430 mm Cutting Capacity

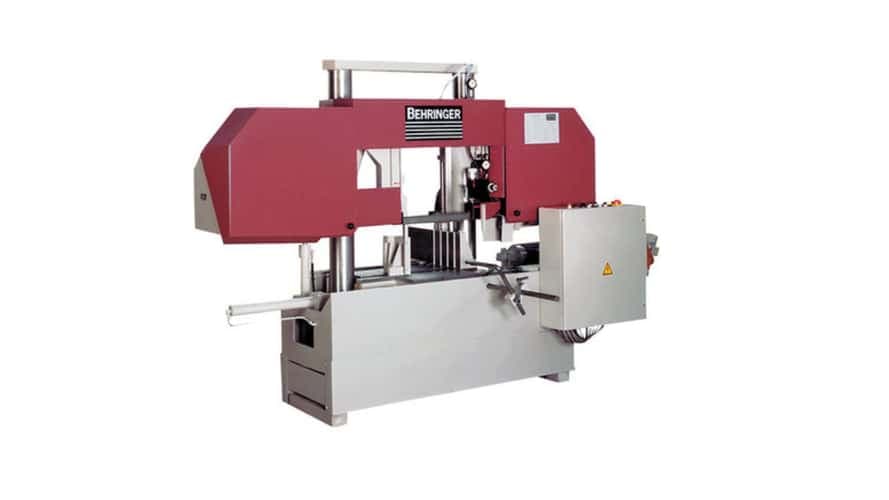

The HBP-430 offers an impressive 430 mm (17") cutting capacity for round, square, and rectangular materials, making it suitable for solid bars, structural sections, and heavy stock.
Rigid Dual-Column Construction
The twin-column design ensures perfectly parallel blade movement, minimizing vibration and delivering accurate, clean cuts even on large cross-sections.
Heavy-Duty Blade System
Equipped with a 2-inch (50.8 mm) wide blade and approximately 5,791 mm (228") blade length, the machine provides excellent cutting stability and extended blade life.
Variable Cutting Speeds
Cutting speeds range from approximately 17 – 110 m/min (62 – 426 FPM), allowing operators to optimize performance for carbon steel, alloy steel, stainless steel, and other metals.
Powerful Main Drive Motor
The HBP-430 features a 5.5 kW (7.4 HP) drive motor, providing high torque for efficient cutting of large and solid materials.
Semi-Automatic & Automatic Versions
Hydraulic Vise Clamping
Hydraulic vises securely clamp material, reducing vibration and improving surface finish.
Integrated Coolant System
The coolant system enhances blade performance, reduces heat buildup, and ensures smooth surface finish during continuous operation.
Industrial-Grade Stability
With machine weights ranging from approximately 2,086 kg (semi-auto) to 3,401 kg (automatic version), the HBP-430 provides exceptional stability for heavy-duty industrial use.
