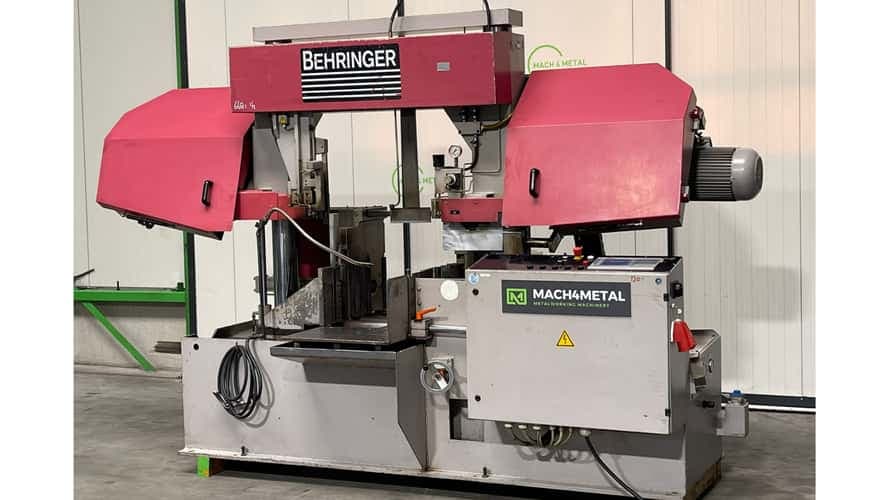

Automatic Horizontal Bandsaw Operation
The HBP-530-A-4-S features automatic feed with single-stroke operation, enabling efficient, repeatable cutting cycles while reducing operator fatigue and increasing throughput.
High Cutting Capacity
With a 530 mm x 530 mm cutting capacity at 90°, this bandsaw easily handles large round, square, and rectangular metal sections, including solid stocks and structural profiles.
Twin-Post Heavy-Duty Construction
The twin-post (double-column) design ensures excellent rigidity and straight cutting performance, even when processing heavy I-beams, billets, and stacked materials.
Wide Industrial Bandsaw Blade
Using a 2-inch (54 mm) wide blade, the machine delivers superior blade guidance, reduced vibration, and longer blade life during continuous industrial operation.
Variable Cutting Speed Control
The 17–110 m/min variable cutting speed range allows precise adjustment based on material type, hardness, and cross-section, optimizing cut quality and tool life.
Powerful Drive System
Equipped with a 7.5 kW to 12 kW main drive motor, the HBP-530-A-4-S provides strong, consistent cutting power for heavy-duty metal sawing tasks.
Advanced Material Handling
Hydraulic vises ensure firm clamping, while optional vertical bundle clamps enable safe and efficient cutting of stacked materials.
It is an automatic horizontal metal bandsaw.
Up to 530 mm round and 530 × 530 mm rectangular at 90°.
Yes, it is designed for continuous industrial production.
A fixed 2-inch (54 mm) wide industrial bandsaw blade.
Steel, alloy steel, structural profiles, and solid metal stocks.
Yes, it features automatic feed with single-stroke operation.
From 17 to 110 meters per minute.
Yes, it has variable cutting speed control.
A rigid twin-post (double-column) structure.
Yes, with optional vertical bundle clamping.
Between 7.5 kW and 12 kW, depending on configuration.
Yes, it is specifically designed for such applications.
Yes, the wide blade improves stability and cut accuracy.
Absolutely, it is built for high-volume, repeatable cutting.
Fabrication units, steel processing plants, and industrial workshops.
| Blade Length inches | 287" |
| Min/Max Blade Width | 2" to 2" |
| Machine Type | Metal |
| Cutting Capacity @ 90° (Round) | 530 mm |
| Cutting Capacity @ 90° (Square/Rectangular) | 530 mm x 530 mm |
| Blade Dimensions | 7200 × 54 × 1.6 mm / 7300 × 54 × 1.6 mm |
| Cutting Speed Range | 17 – 110 m/min (Variable) |
| Main Drive Motor | 7.5kW |
| Material Feed Length | Approx. 40 mm – 500 mm+ |
| Machine Weight | Approx. 3,800 – 4,400 kg |
| Overall Dimensions (Approx.) | 4000 × 2250 × 3270 mm |
