Dual Column Heavy-Duty Structure
Rigid dual column frame for superior stability
Minimizes vibration during cutting
Ensures straight and accurate cuts even on large materials
Fully Automatic Cutting Operation
Automatic feeding, clamping, cutting, and head return
Supports multiple feed strokes up to 3500 mm
Ideal for continuous production and batch cutting
Powerful Blade Drive System
3.75 kW (5 HP) saw blade motor
Delivers constant torque for demanding applications
Handles solid and thick-walled materials efficiently
Wide Cutting Capacity
Round: up to 320 mm (12.5")
Square: up to 320 × 320 mm
Rectangular: up to 320 × 380 mm
Inverter-Driven Variable Blade Speed
Speed range: 20 – 100 m/min
Optimized cutting speed for different metals
Improves blade life and cutting efficiency
Industrial Bandsaw Blade System
Blade size: 4240 × 34 × 1.1 mm
Equivalent to 166" × 1.33" × 0.04"
High beam strength for straight, precise cutting
Carbide Blade Guides
Tungsten carbide guides for blade stability
Accurate blade tracking
Reduced wear and vibration
PLC Control with Digital Display
Easy-to-use PLC interface
Digital monitoring of cutting parameters
Reliable and repeatable operation
Hydraulic Clamping System
Ductile cast iron vise with hardened plates
Secure and uniform material clamping
Prevents material movement during cutting
Precision Feed & Downfeed Control
Smooth hydraulic feed control
Adjustable cutting pressure
Consistent performance across material types
Automatic Chip Auger
Efficient removal of metal chips
Keeps cutting area clean
Reduces manual maintenance
Integrated Flood Coolant System
Continuous cooling during cutting
Reduces blade temperature
Enhances surface finish and blade life
Miter Cutting Capability
Standard miter angles: 90°, 45° left/right
Optional miter up to 60°
Suitable for angled cutting applications
Minimal Material Waste
Remnant length as low as 50 mm
Maximizes material utilization
Reduces scrap costs
Industrial Electrical System
Operates on 380V / 400V, 3-phase power
Reliable performance in industrial environments

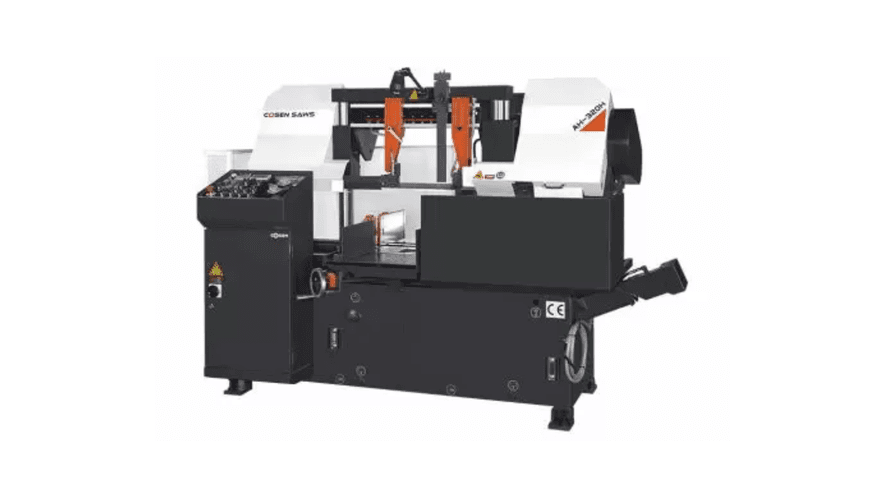

It is an automatic horizontal dual column metal bandsaw.
Up to 320 mm (12.5 inches).
Yes, square up to 320 × 320 mm and rectangular up to 320 × 380 mm.
Yes, it is designed for continuous and batch production.
It uses a blade approximately 34 mm (1.33 inches) wide.
Approximately 4240 mm (166 inches).
Yes, with inverter-driven speed control.
20 to 100 meters per minute.
A 3.75 kW (5 HP) saw blade motor.
Using a hydraulic ductile cast iron vise with hardened plates.
PLC control with digital display.
Yes, 90° and 45° left/right as standard, 60° optional.
Down to approximately 50 mm.
Yes, it comes with an automatic chip auger.
Steel fabrication, heavy engineering, machine shops, and production units.
| Blade Length inches | 179" |
| Min/Max Blade Width | 1.25" to 1.25" |
| Machine Type | Metal |
| Cutting Capacity – Round | 320 mm (12.5") |
| Cutting Capacity – Square | 320 × 320 mm |
| Cutting Capacity – Rectangle | 320 × 380 mm |
| Blade Thickness | 1.1 mm (0.04 in) |
| Blade Speed | 16-104 m/min (53-341 fpm) |
| Saw Blade Motor | 3.75 kW (5 HP) |
| Hydraulic Pump Motor | 0.75 kW |
| Miter Angles | 90°, 45° Left/Right (60° Optional) |
| Remnant Length | Approx. 50 mm |
| Power Supply | 380V / 400V, 3-Phase |
| Machine Weight | 1,540 kg |
