Automatic Miter Cutting Capability

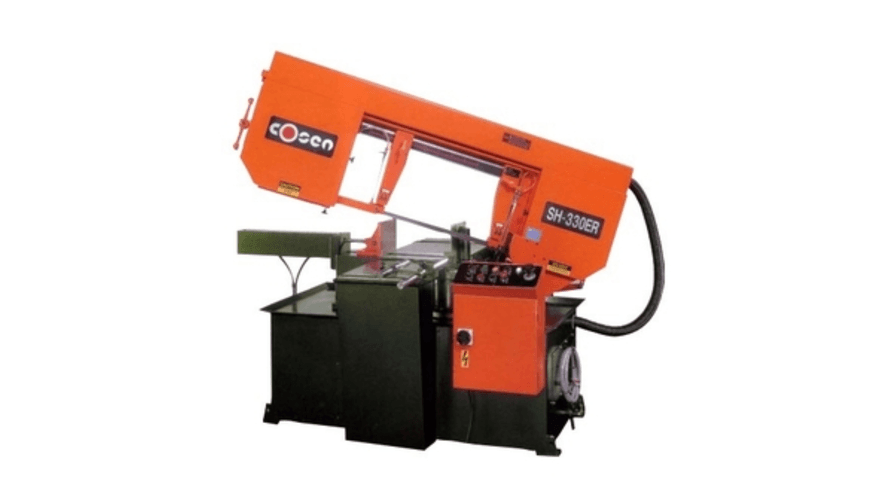

The SH-330ER supports miter cutting from 90° to 45°, enabling efficient angled cuts without repositioning material, ideal for frames, structures, and fabrication components.
Wide Multi-Angle Cutting Capacity
Capable of cutting round, square, and rectangular materials at both 90° and 45°, offering versatility across a wide range of industrial applications.
Infinitely Variable Blade Speed Control
The blade speed ranges from 15 to 100 m/min, allowing precise speed adjustment to match different materials such as mild steel, stainless steel, and alloy steel.
Hydraulic Automation System
Features automatic hydraulic blade tensioning, hydraulic top clamps, and adjustable feed rate, ensuring consistent cutting pressure and improved blade life.
Autocut Material Feeding
Autocut mode enables automatic cutting cycles with controlled feed rates, improving productivity and reducing manual intervention.
Integrated Chip Conveyor
A built-in hydraulic chip conveyor efficiently removes chips from the cutting area, ensuring clean operation and continuous production.
Operator-Friendly Control Panel
Clear speed display and simple controls make setup and operation intuitive, minimizing training time and errors.
Yes, it offers fully automatic cutting with hydraulic control systems.
Yes, it supports miter cutting from 90° to 45°.
Mild steel, stainless steel, alloy steel, and structural materials.
Yes, infinitely variable blade speed from 15–100 m/min.
Yes, automatic hydraulic blade tensioning is included.
Yes, autocut mode with adjustable feed rate is standard.
Yes, a built-in hydraulic chip conveyor is included.
Up to 330 mm (13").
Yes, both at 90° and 45° angles.
Yes, designed for industrial-grade continuous operation.
Operator-friendly controls with blade speed display.
Yes, automatic clamping and blade tensioning improve safety.
Yes, built for easy access and low maintenance.
Yes, controlled feed and hydraulic tension extend blade life.
Fabrication shops, steel service centers, and manufacturing units.
| Blade Length inches | 162" |
| Min/Max Blade Width | 1" to 1" |
| Machine Type | Metal |
| Miter Cutting Range | 90° to 45° |
| Cutting Capacity @ 90° (Round) | 330 mm (13") |
| Cutting Capacity @ 90° (Square) | 280 mm (11") |
| Cutting Capacity @ 90° (Rectangle) | 280H x 450W mm (11" x 17.7") |
| Cutting Capacity @ 45° (Round) | 290 mm (11.5") |
| Cutting Capacity @ 45° (Square) | 265 mm (10.5") |
| Cutting Capacity @ 45° (Rectangle) | 265H x 265W mm (10.5" x 10.5") |
| Blade Size (L x W x T) | 4150 x 27 x 0.9 mm |
| Main Motor | 3 HP (2.25 kW) |
| Hydraulic Motor | 1 HP (0.75 kW) |
| Coolant Pump | 0.125 HP (0.1 kW) |
| Work Bed Height | 710 mm (28") |
| Floor Space (L x W x H) | 1960 x 1900 x 1420 mm |
| Net Weight | 1,500 kg (3,300 lbs) |
