Rigid Industrial Construction
Heavy-duty frame engineered for stability and vibration control
Back-tilt frame design for smooth cutting action
Maintains blade alignment during continuous operation
High Cutting Capacity
Round material: up to 360 mm (14")
Square material: up to 360 × 360 mm (14" × 14")
Rectangular material: up to 360 × 400 mm (14.1" × 15.7")
Powerful 5 HP Blade Drive
5 HP (3.75 kW) saw blade motor
Delivers steady torque for solid and structural materials
Suitable for production-level cutting
Precision Blade System
Blade size: 13' 6" × 1.25" (4100 × 34 mm)
Fixed blade width ensures excellent straight-line stability
Designed for extended blade life
Variable Blade Speed Control
Speed range: 89 – 264 FPM (20 – 80 m/min)
Easily adjustable to match different materials
Improves surface finish and cutting efficiency
Carbide Blade Guides
Tungsten carbide blade guides provide maximum lateral support
Reduces blade deflection under load
Enhances cutting accuracy and consistency
Automatic Hydraulic Blade Tensioning
Maintains optimal blade tension during operation
Protects blade from over-tension and breakage
Improves overall machine reliability
PLC-Based Control System
PLC control with digital readout
Simple, operator-friendly interface
Supports automated cutting cycles
Hydraulic Cast Iron Vise
Heavy-duty cast iron vise construction
Split jaw design minimizes burr formation
Provides firm clamping on round and profile materials
Automatic Cutting Cycle
Automatic material clamping, cutting, and blade return
Reduces operator fatigue
Enhances productivity
Integrated Coolant System
Adjustable coolant delivery to cutting zone
Improves blade life and chip evacuation
Supports long production runs
Power-Driven Blade Brush
Automatically cleans blade teeth during cutting
Prevents chip buildup
Maintains cutting performance
Work Light for Operator Safety
Built-in work light improves visibility
Supports accurate setup and monitoring
Smooth and Quiet Operation
Optimized drive system reduces noise
Suitable for continuous shop-floor use
Versatile Material Capability
Cuts solid bars, pipes, tubes, and structural sections
Suitable for ferrous and non-ferrous materials with correct blade selection
Ideal Production Applications
Fabrication workshops
Machining and engineering units
Medium-volume industrial production

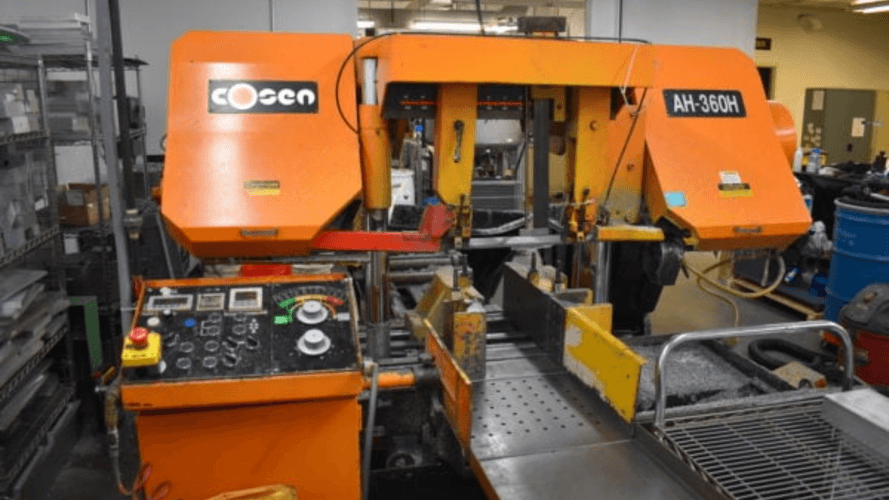

It is an automatic horizontal metal bandsaw.
Up to 360 mm (14 inches).
Yes, it supports square and rectangular profiles.
It uses a fixed 1.25-inch blade width.
Approximately 13 feet 6 inches (4100 mm).
Yes, it features variable blade speed control.
A 5 HP (3.75 kW) blade motor.
Yes, carbide guides are standard.
Through automatic hydraulic blade tensioning.
PLC control with digital readout.
Yes, it uses a hydraulic cast iron vise with split jaws.
Yes, an integrated coolant system is included.
Yes, via a power-driven blade brush.
Solid bars, pipes, tubes, and structural metal sections.
Fabrication shops and production facilities requiring accurate automated cutting.
| Blade Length inches | 162" |
| Min/Max Blade Width | 1.25" to 1.25" |
| Machine Type | Metal |
| Cutting Capacity – Round | 360 mm (14") |
| Cutting Capacity – Square | 360 × 360 mm (14" × 14") |
| Cutting Capacity – Rectangular | 360 × 400 mm (14.1" × 15.7") |
| Blade Speed | 89 – 264 FPM (Variable) |
| Blade Motor | 5 HP (3.75 kW) |
| Control System | PLC with Digital Readout |
| PLC with Digital Readout | Coolant System |
| Approx. Machine Weight | 1,760 lbs (800 kg) |
| Blade Cleaning | Power-Driven Blade Brush |
