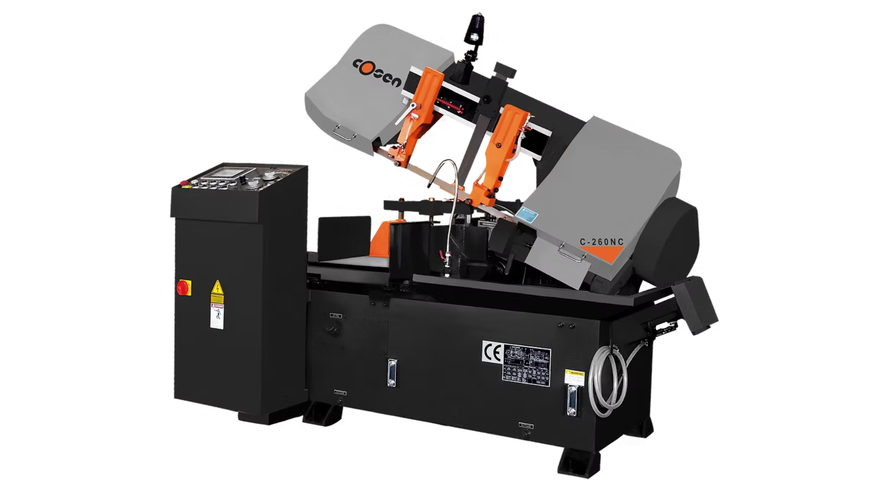

The Cosen C-260NC is a fully automatic NC-controlled horizontal metal bandsaw built for precise, high-efficiency cutting. Featuring a rigid frame, NC touchscreen control, hydraulic material handling, variable blade speed, and a powerful 5 HP motor, it delivers accurate, repeatable cuts with minimal operator input—ideal for high-production metalworking environments.
Fully Automatic NC Operation
Automatic material feeding, clamping, cutting, and head return
Reduces manual handling and operator fatigue
Ideal for batch and continuous production
Advanced SNC-100 Touchscreen Control
User-friendly NC control system
Stores up to 100 cutting programs
Supports multi-length and multi-quantity cutting
High Cutting Accuracy with Kerf Compensation
Automatically compensates for blade kerf
Maintains consistent part length accuracy
Reduces material waste
Rigid Structural Design
Heavy-duty frame minimizes vibration
Ensures straight, precise cuts
Built for long production cycles
Strong Cutting Capacity
Round material: up to 260 mm (10.2")
Rectangular material: up to 260 × 300 mm (10.2" × 11.8")
High-Performance Blade Drive
5 HP blade motor for consistent torque
Handles solid bars, tubes, and profiles with ease
Maintains cutting stability under load
Industrial Blade System
Uses 1.25-inch wide bandsaw blade
Excellent beam strength for straight cutting
Reduced blade deflection
Infinitely Variable Blade Speed
Speed range: 66 – 328 FPM
Optimized cutting for different metals
Enhances surface finish and blade life
Hydraulic Blade Tensioning
Automatic blade tension control
Ensures correct tension at all times
Improves cutting consistency
Carbide Blade Guides
Tungsten carbide guides with bearings
Accurate blade tracking
Reduced wear and vibration
Hydraulic Vise with Split Jaws
Ductile cast iron hydraulic vise
Split jaw design minimizes burr formation
Secure clamping of material
Blade Saver Function
Rear vise retracts after cutting
Reduces blade friction during return stroke
Extends blade service life
Precision Feed Control
Smooth hydraulic downfeed
Adjustable feed pressure
Ideal for thin-walled or solid materials
Integrated Flood Coolant System
Effective heat dissipation
Improves blade performance
Enhances cut quality
Automatic Safety Protection
Automatic stop during abnormal operation
Protects machine and blade
Enhances operator safety
It is a fully automatic NC-controlled horizontal metal bandsaw.
Up to 260 mm (10.2 inches).
Yes, up to 260 × 300 mm.
Yes, it is designed for batch and continuous production.
It uses a 1.25-inch wide bandsaw blade.
Approximately 144 inches.
A powerful 5 HP blade motor.
Yes, blade speed is infinitely variable.
Up to 100 cutting programs.
Up to 999 inches.
Yes, automatic kerf compensation is standard.
Tungsten carbide blade guides with bearings.
Using hydraulic ductile cast iron vises with split jaws.
It retracts the rear vise after cutting to reduce blade wear.
Metal fabrication, machining shops, and production cutting environments.
| Blade Length inches | 144" |
| Min/Max Blade Width | 1.25" to 1.25" |
| Machine Type | Metal |
| Control System | SNC-100 NC Touchscreen |
| Cutting Capacity – Round | 260 mm (10.2") |
| Cutting Capacity – Rectangular | 260 × 300 mm (10.2" × 11.8") |
| Blade Thickness | 0.042 in |
| Blade Speed Range | 66 – 328 FPM |
| Blade Motor Power | 5 HP |
| Job Storage | Up to 100 Programs |
| Indexing Length | Up to 999 in |
| Machine Weight | Approx. 3,300 lbs (1,500 kg) |
| Machine Dimensions | Approx. 85" × 86" × 60.2" |
