Rigid Dual-Column Construction
Heavy-duty dual-column frame ensures superior stability
Minimizes vibration and blade deflection
Maintains accuracy during continuous production cycles
Fully Automatic NC Operation
Automatic clamping, feeding, cutting, and head return
Reduces operator intervention
Increases throughput and production consistency
High Cutting Capacity
Round: up to 420 mm (16.5")
Rectangular: up to 420 × 420 mm (16.5" × 16.5")
Suitable for solid bars, pipes, profiles, and bundles
Advanced PLC Control with HMI
Mitsubishi PLC with 5.7" or 7" touchscreen HMI
Programmable for up to 100 cutting jobs
User-friendly interface for fast job setup and recall
Precision Material Indexing
Automatic material feed up to 999 inches
Built-in kerf compensation for consistent part length
Ideal for batch and repeat production
Powerful Blade Drive System
10 HP blade motor for heavy-duty cutting
Maintains torque across variable blade speeds
Suitable for alloy steels and thick materials
Wide Industrial Blade System
Uses 1.5" wide blade for enhanced beam strength
Reduces blade wander on large cross-sections
Improves surface finish and cutting accuracy
Infinitely Variable Blade Speed
Speed range: 50–328 FPM via inverter control
Optimized cutting for different metals
Extends blade life and improves productivity
Hydraulic Blade Tensioning
Automatic hydraulic blade tension system
Protects blade from over-tensioning
Improves safety and cutting reliability
Carbide Blade Guides & Bearings
Tungsten carbide inserts for maximum blade support
Maintains blade alignment under high load
Ensures straighter and cleaner cuts
Dual Hydraulic Full-Stroke Vises
Front and rear hydraulic vises
Split-front vise design reduces burr formation
Ensures secure clamping of workpieces
Precision Feed Control System
Dual-valve feed control for smooth cutting pressure
Gearbox design supports high lateral cutting force
Prevents blade damage and material deformation
Save-A-Blade Safety Function
Automatic shutdown in case of blade breakage or overload
Error feedback displayed on HMI
Protects machine and operator
Efficient Coolant & Chip Removal
Adjustable flood coolant system with flushing points
Power-driven blade brush for chip removal
Maintains clean cutting conditions

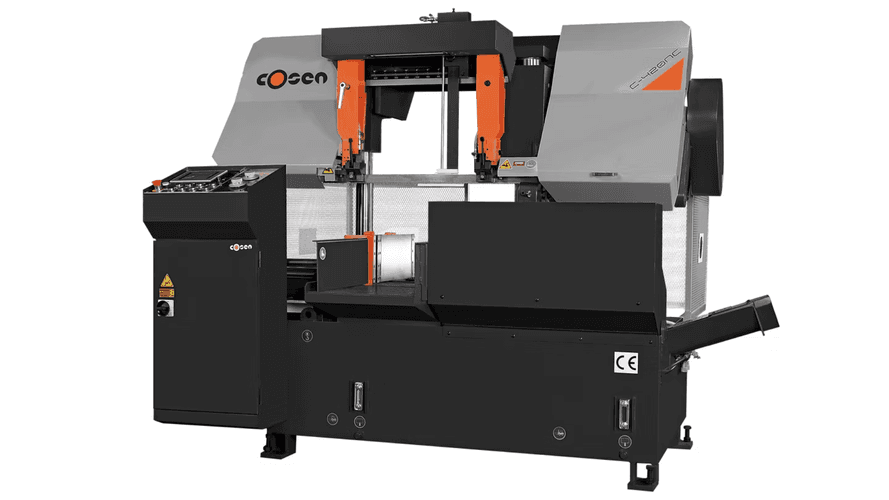

It is a fully automatic, NC-controlled horizontal dual-column metal bandsaw.
420 mm (16.5") round and 420 × 420 mm rectangular.
Yes, it is designed for high-volume and repetitive cutting operations.
It uses a 1.5-inch wide industrial bandsaw blade.
Approximately 192.5 inches (15' 7.8").
The blade motor is rated at 10 HP.
Yes, blade speed is infinitely variable via inverter control.
Up to 100 programmable cutting jobs.
Yes, it features automatic servo-controlled material indexing.
Up to 999 inches with automatic kerf compensation.
Yes, tungsten carbide blade guides with bearings are standard.
Yes, hydraulic blade tensioning is fully automatic.
Using dual hydraulic full-stroke vises with split jaws.
Save-A-Blade function, blade break detection, and automatic shutdown.
Steel service centers, fabrication shops, OEM manufacturers, and machining facilities.
| Blade Length inches | 192.5" |
| Min/Max Blade Width | 1.5" to 1.5" |
| Machine Type | Metal |
| Cutting Capacity – Round | 420 mm (16.5") |
| Cutting Capacity – Rectangular | 420 × 420 mm (16.5" × 16.5") |
| Blade Thickness | 0.050 in |
| Blade Speed Range | 50–328 FPM (Variable) |
| Blade Motor Power | 10 HP |
| Control System | Mitsubishi PLC with 5.7" / 7" HMI |
| Job Memory | Up to 100 programs |
| Material Indexing | Automatic, up to 999 in |
| Machine Weight | Approx. 2,248 kg (4,955 lbs) |
