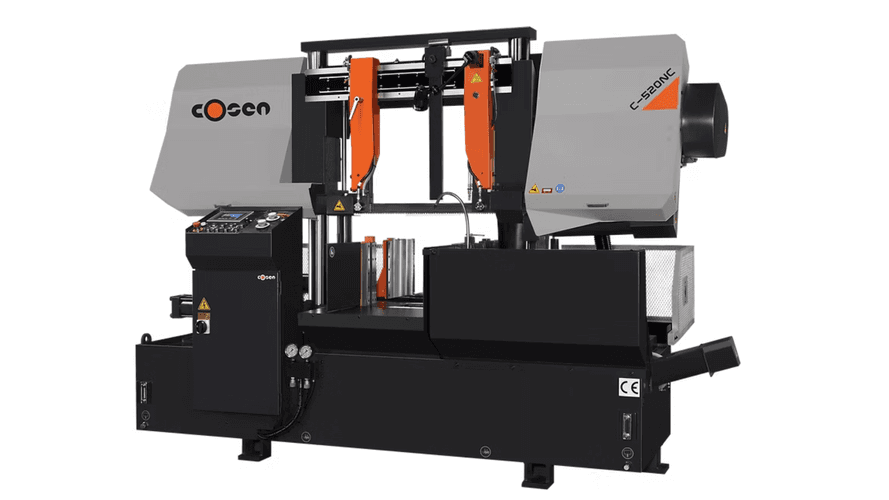

Cosen C-520-NC Fully Automatic Heavy-Duty Metal Bandsaw

Robust Dual-Column Hydraulic Construction

• Heavy-duty hydraulic dual-column design

• Excellent rigidity for vibration-free cutting

• Maintains cutting accuracy on large cross-sections

High-Capacity Cutting Performance

• Round capacity: up to 520 mm (20.5")

• Rectangular capacity: up to 520 × 560 mm (20.5" × 22")

• Suitable for solid bars, pipes, profiles, and bundled materials

Powerful 10 HP Blade Drive

• High-torque 10 HP blade motor

• Designed for continuous industrial operation

• Handles hard materials and thick sections effortlessly

Wide Industrial Blade System

• Blade size: 20' 10" × 2" × 0.063"

• Supports blade widths 2"

• Optimized for straight cuts and long blade life

Variable Blade Speed Control

• Blade speed range: 50 – 328 FPM

• Easily adjustable for different materials

• Improves surface finish and cutting efficiency

Smart NC-100 (SNC-100) Control System

• User-friendly HMI touchscreen

• Stores multiple cutting programs

• Automatic kerf compensation

• Ideal for repeat and batch production

Fully Automatic Feed & Indexing

• NC-controlled automatic material feeding

• Indexing length up to 999 inches

• Ensures accurate, repeatable cut lengths

Hydraulic Vise with Split Front Jaw

• Heavy-duty cast iron vise

• Split jaw design reduces burr formation

• Provides secure clamping on large workpieces

Save-A-Blade Technology

• Rear vise retracts after cutting

• Reduces blade friction and wear

• Extends blade service life

Automatic Hydraulic Blade Tensioning

• Maintains optimal blade tension

• Prevents blade damage

• Improves cutting consistency

Carbide Blade Guides & Bearings

• Tungsten carbide guides provide maximum blade support

• Enhanced straightness under high cutting loads

Powered Blade Cleaning Brush

• Automatically removes chips from blade teeth

• Improves cutting performance

• Reduces maintenance requirements

Efficient Coolant System

• Adjustable flood coolant with multiple nozzles

• Enhances blade cooling and chip evacuation

Optional Hydraulic Chip Conveyor

• Automatically removes chips from cutting area

• Keeps the machine clean and productive

Designed for Continuous Production

• Minimal operator intervention

• Reliable performance over long shifts

• Ideal for production-driven environments

Industrial Applications

• Steel service centers

• Structural steel fabrication

• Heavy engineering and manufacturing
