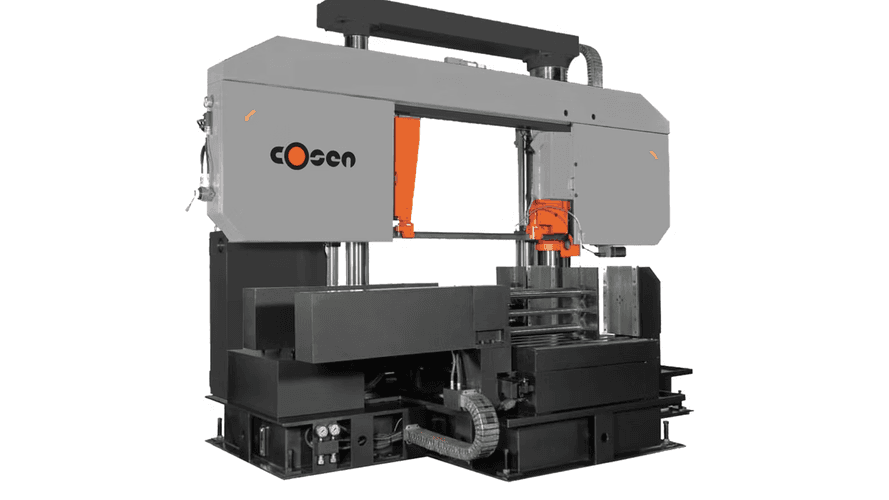

Cosen C-800NC Heavy-Duty NC Automatic Metal Bandsaw

Heavy-Duty Dual-Column Construction

• Massive dual-column frame for superior rigidity

• Minimizes vibration during heavy cuts

• Maintains accuracy even at maximum cutting capacity

Large Cutting Capacity

• Round: up to 800 mm (31.5")

• Square: up to 800 mm (31.5")

• Rectangular: up to 800 × 850 mm (31.5" × 33.5")

• Ideal for large billets, forgings, beams, and plates

Fully Automatic NC Operation

• NC programmable cutting cycles

• Automatic material feeding and cutting

• Reduces operator dependency and improves productivity

Smart NC+ Control System

• 5.7" HMI touchscreen interface

• Easy job programming and parameter setting

• Stores multiple cutting programs for repeat jobs

Servo-Driven Shuttle Vise

• High-precision servo indexing system

• Ensures accurate and repeatable feed lengths

• Optimized for continuous and batch cutting

High-Power Blade Drive

• 15 HP (11 kW) blade motor

• Delivers constant torque for cutting large solid materials

• Suitable for hard alloys and thick sections

Wide Industrial Blade System

• Uses 2.625" (67 mm) wide blade

• Superior beam strength reduces blade deflection

• Enables straighter cuts on heavy materials

Hydraulic Blade Tension with Safety Monitoring

• Automatic hydraulic blade tensioning

• Built-in blade breakage detection

• Improves operator safety and blade life

Variable Blade Speed Control

• Blade speed range: 49–264 FPM (15–77 m/min)

• Allows optimal cutting conditions for different metals

• Improves surface finish and cutting efficiency

Tungsten Carbide Blade Guides

• Heavy-duty carbide guide inserts

• Maintains blade alignment under high cutting loads

• Extends blade life and improves cut accuracy

Hydraulic Full-Stroke Vise with Split Jaws

• Strong hydraulic clamping for large workpieces

• Split jaw design reduces burr formation

• Ensures stable material holding during cutting

Industrial Coolant & Chip Management

• Flood coolant system for heat control

• Improves blade longevity

• Efficient chip evacuation for continuous operation
