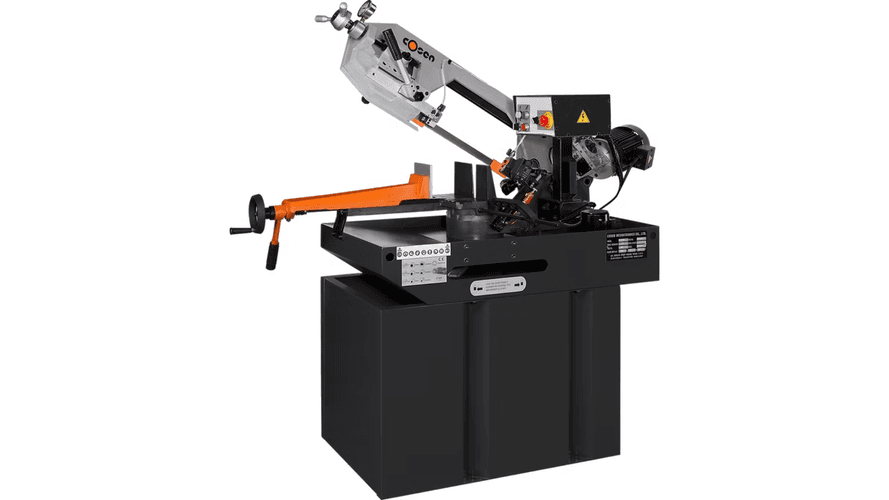

The Cosen MH-270M is a compact manual mitering horizontal bandsaw designed for precise straight and angled metal cutting. Ideal for small to mid-sized shops, it offers reliable performance, hydraulic feed control, and a space-saving design for professional metal cutting.
Compact & Rigid Industrial Design
Heavy-duty steel frame for vibration-free cutting
Compact footprint ideal for limited shop space
Built for long service life in industrial environments
Versatile Cutting Capacity
Round capacity: up to 220 mm (8.9")
Square capacity: up to 200 mm (7.8")
Rectangular capacity: 152.4 × 241 mm (6" × 9.45")
Handles solid bars, tubes, pipes, and profiles with ease
Manual Mitering Capability
Swiveling saw head for angle cutting
Miter range up to 60°
Perfect for fabrication, frames, and structural work
Precision Blade System
Uses 1-inch wide bandsaw blade
Strong blade beam reduces deflection
Produces clean, accurate cuts with minimal rework
Infinitely Variable Blade Speed
Blade speed range: approx. 125 – 250 FPM (60 Hz)
Allows fine adjustment based on material type
Ideal for cutting mild steel, stainless steel, and alloys
Reliable Drive Motor
1.5 HP blade motor
Consistent power delivery for smooth cutting
Designed for continuous workshop use
Hydraulic Feed Control
Adjustable hydraulic downfeed for controlled cutting pressure
Helps prevent blade damage and material chatter
Ensures uniform surface finish
Quick Clamp Heavy-Duty Vise
Strong mechanical vise with quick clamp/release
Secure material holding during straight and miter cuts
Improves safety and cutting accuracy
Carbide Blade Guides
Tungsten carbide blade guides with bearings
Maintains blade alignment
Extends blade life and improves cut quality
Integrated Flood Coolant System
Adjustable flood coolant delivery
Reduces heat and friction during cutting
Enhances blade performance and longevity
Operator-Friendly Controls
AutoCut mode for easier operation
Quick approach feature saves setup time
Ergonomic working height for operator comfort
It is a manual horizontal mitering metal bandsaw.
220 mm (8.9") at 0 degrees.
Yes, it supports miter cutting up to 60 degrees.
It uses a 1-inch wide bandsaw blade.
Approximately 97.625 inches (2465 mm).
No, it features infinitely variable manual speed adjustment.
It is equipped with a 1.5 HP blade motor.
Yes, carbide blade guides come standard.
Via adjustable hydraulic feed control.
Yes, an adjustable flood coolant system is included.
Steel, stainless steel, aluminum, and other non-ferrous metals.
No, it uses a heavy-duty manual vise with quick clamp/release.
Yes, AutoCut mode is provided for easier operation.
Yes, its compact size makes it ideal for small to mid-sized shops.
Approximately 250 kg (550 lbs).
| Blade Length inches | 97.625" |
| Min/Max Blade Width | 1" to 1" |
| Machine Type | Metal |
| Cutting Capacity – Round | 220 mm (8.9") |
| Cutting Capacity – Square | 200 mm (7.8") |
| Cutting Capacity – Rectangular | 152.4 × 241 mm (6" × 9.45") |
| Miter Capacity | Up to 60° |
| Blade Thickness | 0.035 in (0.9 mm) |
| Blade Speed | Infinitely variable, 125–250 FPM |
| Blade Motor | 1.5 HP |
| Coolant System | Adjustable Flood Coolant |
| Machine Dimensions (L×W×H) | 1350 × 715 × 1326 mm |
| Machine Weight | Approx. 250 kg (550 lbs) |
