Rigid Industrial Construction
Heavy-duty steel frame for long-term stability
Minimizes vibration for accurate and repeatable cuts
Designed for continuous metal cutting operations
High Cutting Capacity in a Compact Design
Round cutting capacity: up to 250 mm (9.8")
Square cutting capacity: up to 230 mm (9.0")
Rectangular capacity: up to 230 × 300 mm (9.0" × 11.8")
Ideal for pipes, tubes, and solid metal sections
Semi-Automatic Operation
Automatic cutting cycle with hydraulic feed control
Manual loading with automatic cutting and return
Improves productivity while maintaining operator control
Accurate Mitre Cutting
Swiveling vise enables mitre cuts up to 45°
Ensures precise angled cuts without repositioning material
Suitable for fabrication and structural applications
Durable 1-Inch Blade System
Uses 1-inch wide bandsaw blades
Excellent blade stability and straight cutting performance
Compatible with a wide range of TPI options
Multiple Blade Speed Options
Four-step pulley system with speeds:
75, 121, 190, and 305 FPM (60 Hz)
Optional variable speed drive available
Optimized for cutting different metals efficiently
Advanced Blade Guidance & Safety
Tungsten carbide blade guides with bearings
Hydraulic blade tensioning system
Automatic blade breakage detection for added safety
Reliable Hydraulic & Coolant System
Smooth hydraulic downfeed control
Integrated coolant system for clean cuts
Extends blade life and improves surface finish
Compact Footprint & Ergonomic Design
Comfortable 25-inch workbed height
Space-efficient layout for small workshops
Easy access for maintenance and blade changes

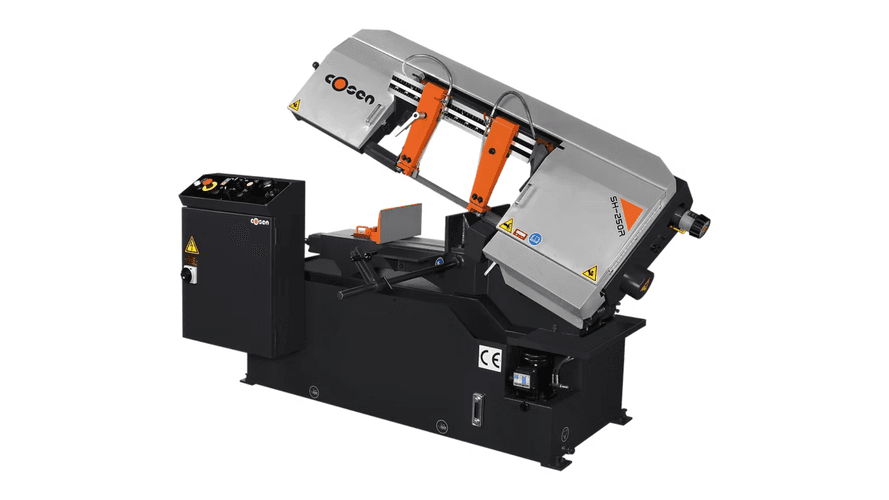

It is a semi-automatic horizontal metal bandsaw.
What is the maximum round cutting capacity?
Yes, up to 230 × 300 mm.
Yes, it can cut angles up to 45° via a swiveling vise.
It uses a 1-inch wide bandsaw blade.
Approximately 132" (3350mm)
Through a four-step pulley system, with optional variable speed.
Tungsten carbide blade guides with bearings.
Hydraulic blade tensioning with breakage detection.
A 2 HP (1.5 kW) blade motor.
Yes, an integrated coolant pump is standard.
Carbon steel, alloy steel, stainless steel, and similar metals.
Yes, it is ideal for light-to-medium production environments.
Approximately 1,225 lb (556 kg).
Yes, it features accessible components and simple blade changes.
| Blade Length inches | 132" |
| Min/Max Blade Width | 1" to 1" |
| Machine Type | Metal |
| Cutting Capacity – Round | 250 mm (9.8") |
| Cutting Capacity – Square | 230 mm (9.0") |
| Cutting Capacity – Rectangle | 230 × 300 mm |
| Mitre Cutting | Up to 45° |
| Blade Dimensions | 132" × 1" × 0.035" |
| Hydraulic Pump Motor | 1/4 HP (0.18 kW) |
| Coolant Motor | 1/8 HP (0.09 kW) |
| Workbed Height | 25 inches (640 mm) |
| Floor Space (L × W × H) | 38 × 77 × 60 inches |
| Net Weight | Approx. 1,225 lb (556 kg) |
