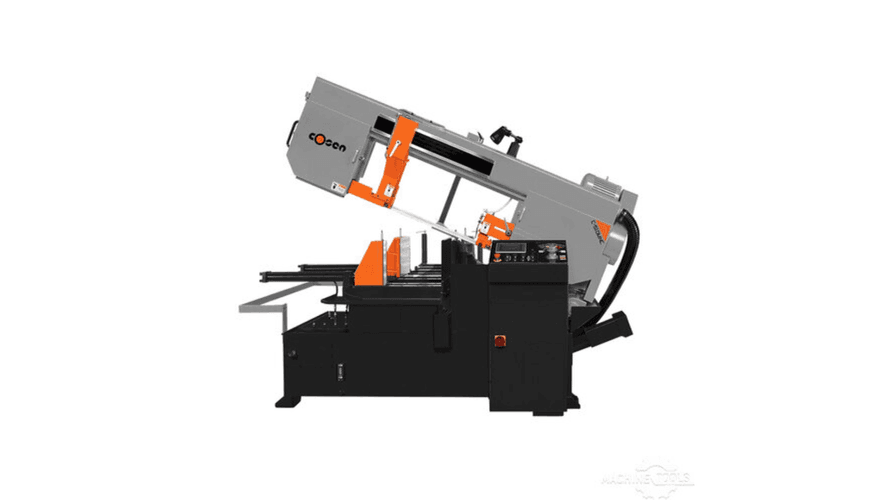

Heavy-Duty Dual Column Hydraulic Design
The robust dual-column construction provides superior rigidity and vibration control, ensuring straight, accurate cuts even on large solid materials.
Wide Industrial Cutting Capacity
Capable of cutting round materials up to 320 mm and rectangular sections up to 320 x 380 mm, supporting a wide range of industrial cutting needs.
Fully Automatic SNC-100 Operation
The SNC-100 control system allows programming of up to 100 cutting jobs, enabling unattended operation, repeatable accuracy, and efficient batch processing.
Mitsubishi PLC with HMI Touchscreen
A 5.7-inch HMI touchscreen combined with a Mitsubishi PLC offers intuitive job setup, real-time monitoring, and easy parameter adjustments.
Hydraulic Shuttle Vise with Long Indexing
The hydraulic shuttle vise supports multiple indexing up to 999 inches, making the SH-320 ideal for long bar feeding and high-production cutting.
Variable Blade Speed Control
Blade speed is infinitely adjustable from 20 to 100 m/min, allowing optimal cutting conditions for different materials and thicknesses.
Hydraulic Blade Tensioning
Automatic hydraulic blade tension ensures consistent cutting pressure, improved blade life, and reduced downtime.
Production-Grade Standard Features
Includes carbide blade guides with bearings, split front vise jaws to reduce burrs, and a motor-driven wire brush for efficient chip removal.
Yes, it features fully automatic cutting with programmable SNC-100 control.
Mild steel, stainless steel, alloy steel, and structural materials.
It provides higher rigidity and more accurate, vibration-free cuts.
Yes, up to 100 jobs can be stored in memory.
Yes, blade speed is variable from 20–100 m/min.
Yes, hydraulic blade tension is standard.
A hydraulic shuttle vise with split front jaws.
Yes, with indexing up to 999 inches.
Yes, carbide blade guides with bearings are standard.
Yes, a motor-driven wire brush is included.
Yes, the machine is designed for unattended batch cutting.
Yes, a 5.7" HMI touchscreen is standard.
Absolutely, it is built for continuous industrial use.
No, it is designed for easy access and low maintenance.
Yes, split vise jaws significantly reduce burrs.
| Blade Length inches | 180" |
| Min/Max Blade Width | 1.25" to 1.25" |
| Machine Type | Metal |
| Cutting Capacity – Round (90°) | 320 mm (12.6") |
| Cutting Capacity – Rectangle (90°) | 320 x 380 mm (12.6" x 15") |
| Blade Dimension (L x W x T) | 4115 x 34 x 1.1 mm |
| Blade Speed | 20 – 100 m/min (Variable) |
| Blade Motor Power | 5 HP (3.7 kW) |
| Control System | 5.7" HMI Touchscreen + Mitsubishi PLC |
| Indexing Length | Multiple Indexing up to 999" |
| Workbed Height | 31.1" |
| Floor Space (L x W x H) | 90" x 82" x 54" |
| Net Weight | Approx. 2,000 kg (4,409 lbs) |
