Heavy-Duty Industrial Construction
Rigid steel frame minimizes vibration during cutting
Ensures straight, accurate cuts even on tough materials
Designed for long service life in demanding environments
Wide Cutting Capacity
Round material: up to 250 mm (10")
Square material: up to 230 mm (9")
Rectangular material: up to 230 × 460 mm (9" × 18.1")
Suitable for pipes, tubes, flats, and solid metal sections
Semi-Automatic Cutting Operation
Automatic cutting cycle with hydraulic downfeed
Automatic saw head return after cutting
Manual material loading with automated cutting improves productivity
Precision Miter Cutting up to 60°
Swiveling saw head enables miter cuts up to 60°
Accurate angular cuts without repositioning workpieces
Ideal for structural fabrication and angled frame work
Stable 1-Inch Blade System
Uses 1-inch wide bandsaw blades
Provides excellent beam strength and cutting stability
Reduces blade deflection and improves surface finish
Multiple Blade Speed Options
Four blade speeds: 95, 150, 213, and 321 FPM
Variable pulley system for easy speed selection
Optimized for cutting different metal types efficiently
Carbide Blade Guides & Bearings
Tungsten carbide blade guides ensure precise blade tracking
Extended blade life and improved cutting accuracy
Reduced maintenance and consistent performance
Reliable Hydraulic System
Hydraulic vise clamping for firm material holding
Smooth and adjustable hydraulic downfeed control
Enhances cut quality and operator safety
Integrated Coolant & Chip Management
Adjustable flood coolant system for heat control
Motorized blade brush keeps blade teeth clean
Improves cutting efficiency and blade longevity
Operator-Friendly Design
Ergonomic controls for ease of use
Easy blade access for faster blade changes
Compact footprint suitable for most workshops

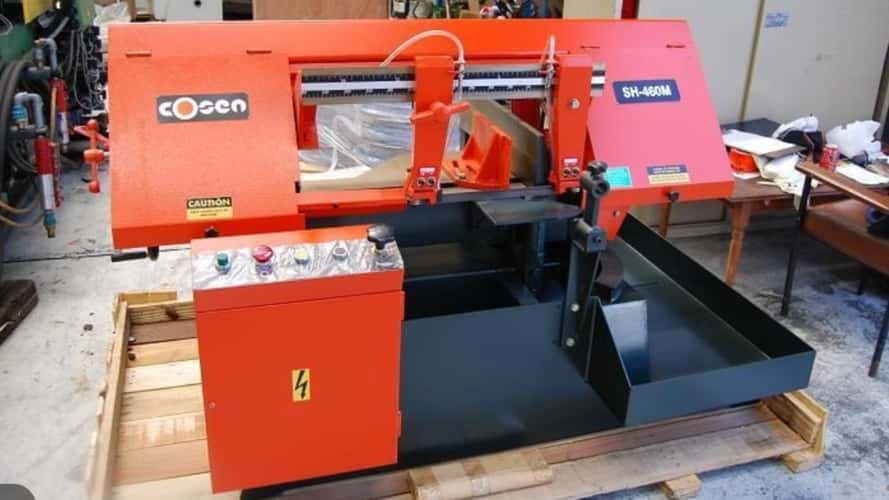

It is a semi-automatic mitering horizontal metal bandsaw.
Up to 10 inches (250 mm).
Yes, up to 230 × 460 mm.
Up to 60 degrees.
It uses a 1-inch wide blade.
138 inches.
Four speeds: 95, 150, 213, and 321 FPM.
A 2 HP blade drive motor.
Is the cutting operation fully automatic?
Yes, it has an adjustable flood coolant system.
Tungsten carbide blade guides with bearings.
Yes, hydraulic clamping ensures secure material holding.
Carbon steel, alloy steel, stainless steel, and similar metals.
Yes, it is ideal for fabrication, workshops, and industrial maintenance.
No, it is designed for low maintenance with durable components.
| Blade Length inches | 138" |
| Min/Max Blade Width | 1" to 1" |
| Machine Type | Metal |
| Cutting Capacity – Round | 250 mm (10") |
| Cutting Capacity – Square | 230 mm (9") |
| Cutting Capacity – Rectangle | 230 × 460 mm (9" × 18.1") |
| Miter Capacity | Up to 60° |
| Blade Thickness | 0.035 inch |
| Blade Speed | 95 / 150 / 213 / 321 FPM |
| Blade Drive Motor | 2 HP |
| Downfeed Control | Hydraulic, Adjustable |
| Coolant System | Adjustable Flood Coolant |
| Blade Cleaning | Motorized Blade Brush |
| Machine Orientation | Horizontal |
