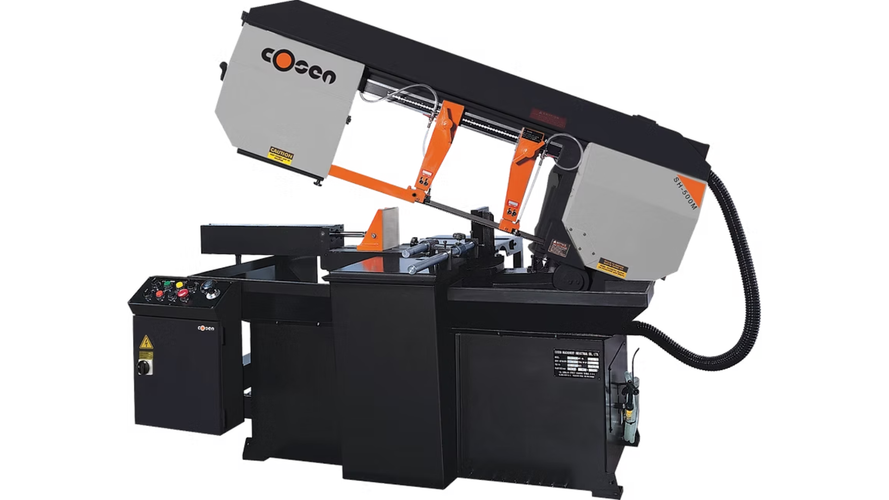

The Cosen SH-500M is a durable semi-automatic horizontal metal bandsaw built for precision and reliability in industrial fabrication. Featuring rigid construction, hydraulic bow control, variable blade speed, and carbide blade guides, it delivers accurate straight and miter cuts with consistent performance and long blade life—ideal for daily production use.
High-Capacity Metal Cutting Performance
Capable of cutting round, square, and rectangular metal sections
Designed for solid bars, pipes, tubes, and structural profiles
Ideal for general fabrication, maintenance, and production cutting
Semi-Automatic Horizontal Bandsaw Design
Manual material loading with hydraulic cutting cycle
Automatic bow descent and controlled cutting feed
Simple operation with consistent, repeatable results
Wide Cutting Capacity
Handles round material up to approximately 13 inches
Accommodates large rectangular sections for structural work
Suitable for both small batches and continuous shop use
Variable Blade Speed Control
Variable blade speed allows precise adjustment for different metals
Optimizes cutting efficiency and extends blade life
Supports carbon steel and bi-metal bandsaw blades
Heavy-Duty Blade & Guide System
Uses a 1-inch wide blade for stability and straight cuts
Carbide blade guides reduce blade deflection
Ensures improved accuracy and smoother surface finish
Hydraulic Vise & Bow Control
Cast-iron hydraulic vise provides strong and secure clamping
Adjustable hydraulic downfeed maintains consistent cutting pressure
Improves safety and cutting precision
Miter Cutting Capability
Integrated miter cutting up to 60 degrees
Ideal for angled cuts in fabrication and frame work
Maintains rigidity even during angled operations
Integrated Chip & Blade Cleaning System
Motorized blade brush removes chips during cutting
Improves blade life and cutting consistency
Keeps cutting area cleaner and safer
Industrial-Grade Construction
Solid frame and rigid bow structure
Designed for long service life with minimal vibration
Built to withstand demanding shop environments
It is a semi-automatic horizontal metal cutting bandsaw.
It is suitable for steel, stainless steel, aluminum, and other metals.
Approximately 13 inches at 90°.
Yes, it supports miter cutting up to 60°.
It uses a 1-inch wide bandsaw blade.
Yes, the blade speed is variable for different materials.
Carbide blade guides are standard.
Yes, it features a cast-iron hydraulic vise.
Yes, adjustable hydraulic downfeed is provided.
Yes, it has a motorized blade brush.
A 3 HP blade drive motor.
Yes, a dedicated coolant pump motor is included.
Around 1,980 lbs.
Yes, it is designed for reliable daily industrial use.
Fabrication shops, metal workshops, and industrial maintenance units.
| Blade Length inches | 163" |
| Min/Max Blade Width | 1" to 1" |
| Machine Type | Metal |
| Operation Type | Semi-Automatic Horizontal |
| Cutting Capacity – Round | 13" @ 90° |
| Cutting Capacity – Square | 11" x 11" @ 90° |
| Cutting Capacity – Rectangular | 19.7" W x 11" H @ 90° |
| Blade Thickness | 0.035 inch |
| Blade Speed | Variable (approx. 75–246 / 95–321 FPM) |
| Blade Drive Motor | 3 HP |
| Hydraulic Motor | 0.5 HP |
| Coolant Motor | 0.125 HP |
| Vise Type | Cast-Iron Hydraulic |
| Miter Capacity | Up to 60° |
| Machine Weight | Approx. 1,980 lbs |
