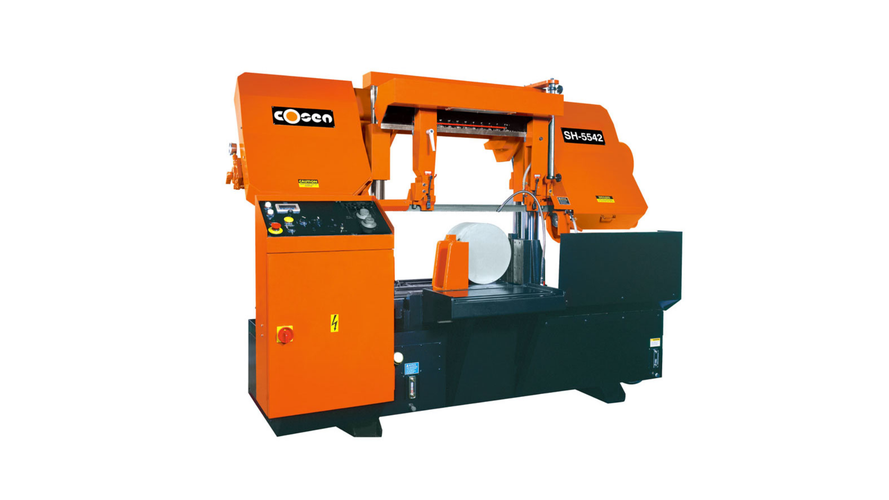

The Cosen SH-5542 is a heavy-duty semi-automatic dual-column metal bandsaw designed for high-volume cutting of large solids and structural materials. With a rigid frame, PLC-controlled hydraulics, and a wide 1.5" blade, it delivers precise, reliable performance for demanding industrial applications.
Heavy-Duty Dual Column Construction
Rigid dual-column frame ensures straight, vibration-free cuts
Ideal for large cross-sections and heavy materials
Maintains alignment accuracy during long production cycles
High-Capacity Metal Cutting
Cuts round, square, and rectangular materials efficiently
Designed for structural steel, alloy steel, stainless steel, and non-ferrous metals
Suitable for fabrication shops and industrial processing units
Semi-Automatic Operation
Manual loading with automatic hydraulic cutting cycle
Controlled bow descent for consistent feed rate
Improves productivity while maintaining operator control
Wide 1.5-Inch Blade System
Uses a 1.5" wide, heavy-duty blade for stability
Reduces blade deflection on large solids
Delivers smoother finishes and longer blade life
Variable Blade Speed Control
Blade speed adjustable from 50 to 328 FPM
Optimized cutting for different metals and profiles
Enhances cutting efficiency and reduces material waste
High-Power Drive System
7.5 HP blade motor for demanding cutting tasks
2 HP hydraulic motor ensures smooth and controlled operation
Reliable performance under continuous load
Advanced Hydraulic Clamping
Full-stroke hydraulic vise with split front jaws
Provides secure and even clamping on varied material sizes
Improves safety and cutting accuracy
PLC-Based Control System
PLC controls hydraulic and electrical functions
Ensures repeatable cutting cycles and easy operation
Simplifies maintenance and diagnostics
Integrated Coolant System
Large 22.4-gallon coolant tank included
Improves blade life and cutting quality
Reduces heat buildup during heavy cutting
Industrial-Grade Build Quality
Designed for long service life in demanding environments
Heavy machine weight minimizes vibration
Ideal for continuous production use
It is a semi-automatic horizontal dual-column metal bandsaw.
Steel, stainless steel, aluminum, and other metal alloys.
Approximately 16.5 inches (420 mm).
Yes, it handles square and rectangular profiles efficiently.
It uses a 1.5-inch wide bandsaw blade.
Yes, blade speed ranges from 50 to 328 FPM.
A 7.5 HP blade drive motor.
Yes, a full-stroke hydraulic vise with split jaws.
Yes, an integrated coolant system with a 22.4-gallon tank.
What type of control system is used?
Is the SH-5542 suitable for production environments?
Does the dual-column design improve accuracy?
Around 4,211 lbs (1,910 kg).
Is this bandsaw easy to operate?
Metal fabrication, steel service centers, and industrial manufacturing.
| Blade Length inches | 208" |
| Min/Max Blade Width | 1.5" to 1.5" |
| Machine Type | Metal |
| Frame Design | Dual Column |
| Cutting Capacity – Round | 16.5" (420 mm) |
| Cutting Capacity – Square | 16.5" × 16.5" (420 × 420 mm) |
| Cutting Capacity – Rectangular | 16.5" × 21.6" (420 × 550 mm) |
| Blade Thickness | 0.050 inch |
| Blade Speed Range | 50 – 328 FPM |
| Blade Drive Motor | 7.5 HP |
| Hydraulic Motor | 2 HP |
| Coolant System | Included (22.4-gallon tank) |
| Control System | PLC Controlled |
| Machine Weight | Approx. 4,211 lbs (1,910 kg) |
