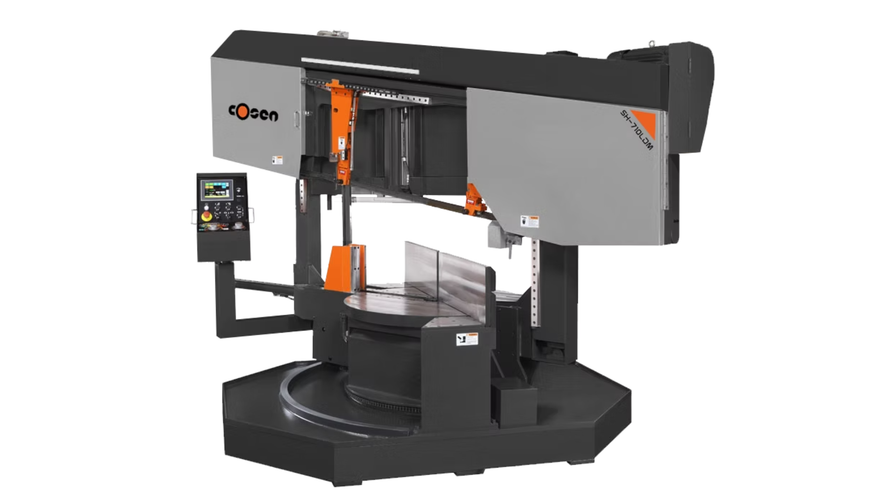

The Cosen SH-700-DM is a semi-automatic double miter horizontal bandsaw built for accurate angled cutting of heavy structural steel and solids. Featuring a rigid cast-iron frame, variable blade speed, and hydraulic automation, it delivers reliable performance, clean cuts, and long blade life in demanding fabrication environments.
Heavy-Duty Rigid Construction
Robust cast-iron frame and guide arms for maximum rigidity
Minimizes vibration and blade deflection during heavy cutting
Built for continuous industrial operation
Double Mitre Cutting Capability
Swivel saw head for 0° to +60° and -45° mitre cutting
Accurate angled cuts for frames, beams, and structural fabrication
Smooth rotation with precise angle positioning
High Cutting Capacity
Round cutting capacity: up to 450 mm
Rectangular capacity: up to 450 × 700 mm
Handles wide profiles, pipes, and solid bars with ease
Wide 1.5-Inch Blade System
Uses 1.5-inch wide bandsaw blades
Enhanced stability for large cross-sections
Reduced blade wandering and improved surface finish
Inverter-Driven Variable Blade Speed
Blade speed range: 20–100 m/min (66–330 FPM)
Optimized cutting performance for different metal types
Reduces blade wear while improving efficiency
Powerful Drive & Hydraulic System
7.5 HP blade motor for demanding applications
Independent hydraulic motor for clamping and feed control
Full-stroke hydraulic vise for secure material holding
Automatic Cutting Functions
Automatic blade tensioning
Automatic saw head lift after cut completion
Consistent cutting pressure for repeatable results
Precision Blade Guidance
Carbide blade guides with support bearings
Maintains blade alignment under heavy loads
Ensures accurate straight and angled cuts
Integrated Coolant & Cleaning
Adjustable flood coolant system with mist option
Motor-driven blade brush synchronized with blade motion
Extends blade life and improves cut quality
A semi-automatic double mitre horizontal metal bandsaw.
Up to 450 mm at 0°.
Up to 450 × 700 mm.
Yes, it mitres from 0° to +60° and -45°.
A 1.5-inch wide bandsaw blade.
Approximately 228 inches.
Yes, via inverter control from 20–100 m/min.
A 7.5 HP (5.5–5.6 kW) blade motor.
Yes, with a full-stroke hydraulic vise.
Yes, automatic blade tensioning is included.
Yes, auto lift is a standard feature.
Carbon steel, alloy steel, stainless steel, and other metals.
Carbide blade guides with support bearings.
Yes, an adjustable flood coolant system with mist option.
Approximately 2,400 kg (5,280 lbs).
| Blade Length inches | 228" |
| Min/Max Blade Width | 1.5" to 1.5" |
| Machine Type | Metal |
| Cutting Capacity (Round) | 450 mm |
| Cutting Capacity (Rectangle) | 450 × 700 mm |
| Mitre Range | 0° to +60°, -45° |
| Blade Size | 5800 × 41 × 1.3 mm |
| Blade Speed | 20–100 m/min (Variable) |
| Blade Motor | 7.5 HP (5.5–5.6 kW) |
| Hydraulic Motor | 1 HP (0.75 kW) |
| Coolant Motor | 1/8 HP (0.09 kW) |
| Coolant System | Flood with Mist Option |
| Machine Weight (Approx.) | 2,400 kg (5,280 lbs) |
