Rigid Double Column Architecture
Heavy-duty double column frame minimizes vibration and blade deviation
Ensures straight, accurate cuts on large profiles and long workpieces
Designed for continuous industrial operation
Double Miter Capability (±60°)
Precise left and right mitering up to ±60°
Maintains capacity at angles for frames, beams, and structural assemblies
Smooth arc movement with controlled lifting
High-Capacity Cutting Performance
Large cutting envelope at 90°: 710 × 420 mm
Handles rounds, squares, rectangles, and bundled materials
Suitable for carbon steel, alloy steel, stainless steel, and non-ferrous metals
Wide 1.5-Inch Blade System
Uses a 1.5-inch wide blade for superior stability
Reduced deflection on heavy sections
Improved surface finish and extended blade life
Inverter-Driven Variable Blade Speed
Adjustable blade speed 23.5-166.5 m/min (78-546 FPM)
Optimized cutting parameters for different materials
Enhances productivity while reducing wear
Powerful Drive & Hydraulics
7.5 HP (5.6 kW) blade motor for demanding cuts
Fully integrated hydraulic system for clamping, feed, and blade tension
Dual-valve feed control for consistent cutting pressure
Advanced PLC Control with Touchscreen
Mitsubishi PLC with 5.7" HMI touchscreen
Intuitive operation, digital readouts, and cycle control
Simplifies setup, monitoring, and diagnostics
Precision Blade Guidance
Carbide blade guides with linear guideways
Maintains blade alignment under load
Ensures accuracy on straight and angled cuts
Hydraulic Vise & Bundle Cutting
Synchronized hydraulic vise with split jaws
Optional hydraulic vertical clamp for bundle cutting
Secure material holding improves safety and accuracy
Integrated Cooling Systems
Adjustable flood and mist coolant options
Controls heat, improves finish, and extends blade life
Ideal for heavy and continuous cutting cycles

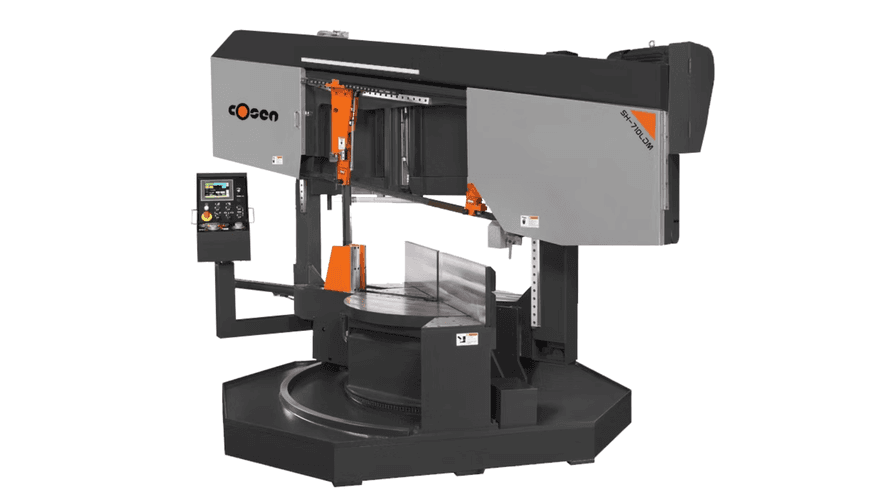

A semi-automatic double column, double miter metal bandsaw.
Up to 710 × 420 mm (27.9" × 16.5").
Yes, it miters up to ±60°.
A 1.5-inch wide bandsaw blade.
Yes, variable from 25 to 100 m/min via inverter control.
A 7.5 HP (5.6 kW) blade drive motor.
Mitsubishi PLC with a 5.7" HMI touchscreen.
Yes, a synchronized hydraulic vise with split jaws.
Yes, with a hydraulic vertical clamp.
Steel, stainless steel, aluminum, and other metal alloys.
It improves rigidity, accuracy, and blade stability.
Yes, for precise blade tracking and long blade life.
Yes, adjustable flood and mist coolant systems.
Yes, it is designed for heavy-duty, high-volume cutting.
Approximately 2,755 kg (6,073 lbs).
| Blade Length inches | 257.5" |
| Min/Max Blade Width | 1.5" to 1.5" |
| Machine Type | Metal |
| Operation Type | Semi-Automatic |
| Miter Capacity | ±60° |
| Cutting Capacity @ 90° | 710 × 420 mm (27.9" × 16.5") |
| Blade Thickness | ~0.05 inch (1.3 mm) |
| Blade Speed Range | 23.5-166.5 m/min (78-546 FPM) |
| Blade Drive Motor | 7.5 HP / 5.6 kW |
| Control System | Mitsubishi PLC with 5.7" HMI |
| Coolant System | Adjustable Flood & Mist |
| Floor Space (Approx.) | 3210 × 3142 × 2305 mm |
| Machine Weight (Approx.) | 2,755 kg (6,073 lbs) |
