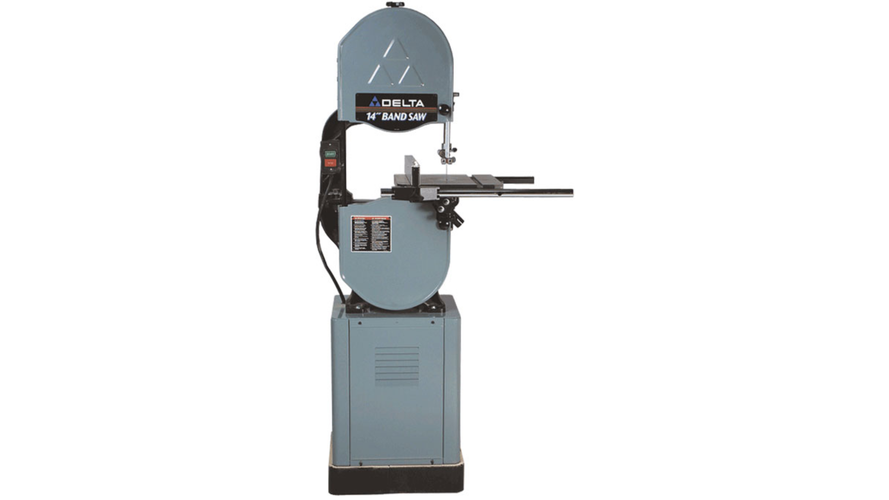

The Delta 28-231 Type 1 14" Bandsaw is a reliable, precision tool for woodworking shops and hobbyists. With a ¾ HP motor, 6″ resaw capacity (expandable to 11½″), and support for 1/8″–¾″ blades, it delivers smooth, accurate cuts. Its cast-iron frame, 14″ × 14″ table, and 4″ dust port ensure stability and clean operation. A durable, proven bandsaw built for consistent performance and long-term reliability.
Motor & Power: Equipped with a ¾ HP motor for steady cutting through dense hardwoods and general woodworking tasks, ideal for both home workshops and light professional use.
Cutting Capacity: Offers a 6″ resaw height and 14″ throat capacity, extendable to 11 ½″ height with an optional riser block for thicker materials.
Blade Versatility: Accepts bandsaw blades from 1/8″ to ¾″ wide, with a standard 93 ½″ blade length for cutting curves, resawing boards, or general shaping.
Table & Construction: Solid cast-iron 14″ × 14″ table provides exceptional rigidity, vibration resistance, and long-term accuracy.
Dust Collection: Built-in 4″ dust port efficiently removes sawdust for a cleaner, safer working environment.
Compact Design: Weighing around 165 lbs, it’s stable yet portable enough for small shops or garages.
Upgrade Ready: Compatible with Delta riser block kits and aftermarket accessories to boost capacity and precision.
It uses a reliable ¾ HP motor, providing smooth, consistent performance for most woodworking tasks.
Standard capacity is 6″, but it can reach 11 ½″ with a factory riser block installed.
The saw uses 93 ½″ band saw blades ranging from 1/8″ to ¾″ wide.
Yes. With a sharp saw blade and proper feed rate, it cuts both hardwoods and softwoods efficiently.
The cast-iron table measures approximately 14″ × 14″, providing a sturdy work surface.
Yes. It includes a 4″ dust port to connect standard shop vacuums or dust extractors.
Absolutely. Adding a Delta riser block increases cutting height to 11 ½″.
Around 165 lbs with its stand — stable for accurate cuts yet easy to relocate.
Yes, it excels at precision curve cuts when fitted with narrow (1/8″ or ¼″) bandsaw blades.
Many units shipped with a rip fence, but aftermarket Delta-compatible fences are also available.
Primarily designed for wood, but can cut light plastics with the proper saw blade.
Yes, most replacement bandsaw parts and accessories for Delta 14″ models fit this unit.
Yes, it’s commonly used on a cast-iron stand or cabinet base for better stability.
Blade changes are straightforward thanks to the adjustable tensioning mechanism.
It offers Delta’s legendary reliability, solid cast-iron design, and precise cutting in a compact, affordable package.
| Blade Length inches | 93.5" |
| Min/Max Blade Width | 1/8" to 3/4" |
| Machine Type | Wood |
| Throat Capacity | 14 inches |
| Resaw Height | 6 inches |
| Motor Power | ¾ HP |
| Table Size | 14″ × 14″ |
| Dust Port | 4 inches |
| Weight | 165 lbs |
