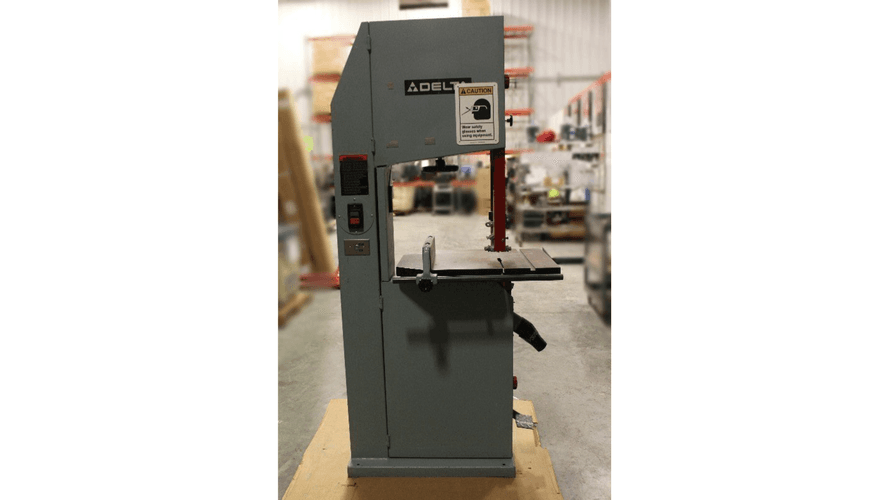

The Delta 28-640 Type 1 is a heavy-duty 20-inch vertical combo bandsaw built for professional woodworking and light-duty cutting. With cast-iron construction, a powerful motor, and precise blade control, it delivers smooth, accurate cuts for resawing and contour work.
20-Inch Vertical Combo Bandsaw
Vertical bandsaw design suitable for woodworking and light non-ferrous materials
Large working envelope for cutting wide and thick stock
Ideal for resawing, ripping, and curved profile cutting
Wide Blade Compatibility
Supports blade widths from 0.25 inch to 1 inch
Uses 156.5-inch continuous bandsaw blades
Compatible with multiple tooth pitches for rough and fine cuts
Powerful Single-Phase Motor
2 HP, 230V single-phase motor
Consistent torque for hardwood and thick material cutting
Often equipped with a magnetic starter for safe operation
Heavy Cast-Iron Work Table
Large table size: 20-1/2" x 26-7/8"
Tilts 45° to the right and 4° to the left for angled cuts
Provides excellent support for large and heavy workpieces
Advanced Blade Control System
Adjustable upper and lower blade guides with support bearings
Direct-reading blade tension scale for accurate setup
Improved blade tracking for straight, clean cuts
Safety & Operator Convenience Features
Integrated blade brake for quick stop
3-inch dust chute for effective chip extraction
Wheel brush keeps tires clean for better blade tracking
Industrial Build Quality
Rigid cast-iron and steel construction minimizes vibration
Designed for long service life and consistent performance
Suitable for continuous shop use
It is a 20-inch vertical combo bandsaw.
It uses 156.5-inch bandsaw blades.
Blade widths from 0.25 inch to 1 inch.
Yes, it is well-suited for resawing thick wood stock.
The saw is equipped with a 2 HP single-phase motor.
230V single-phase power.
Yes, the table tilts 45° right and 4° left.
Around 12 to 13 inches vertically.
Yes, it features an integrated blade brake.
Yes, a 3-inch dust chute is provided.
Primarily wood, with light non-ferrous materials using proper blades.
Yes, both upper and lower blade guides are adjustable.
Yes, with a direct-reading blade tension scale.
Yes, it is designed for professional and industrial use.
Yes, 156.5-inch blades are widely available.
| Blade Length inches | 156.5" |
| Min/Max Blade Width | 1/4" to 1" |
| Machine Type | Combo |
| Wheel Size | 20 inch |
| Motor Power | 2 HP |
| Voltage | 230V, Single Phase |
| Table Size | 20-1/2" x 26-7/8" |
| Table Tilt | 45° Right / 4° Left |
| Cutting Height | 12–13 inches |
| Blade Brake | Yes |
| Dust Chute | 3-inch O.D. |
| Blade Guides | Adjustable upper & lower |
