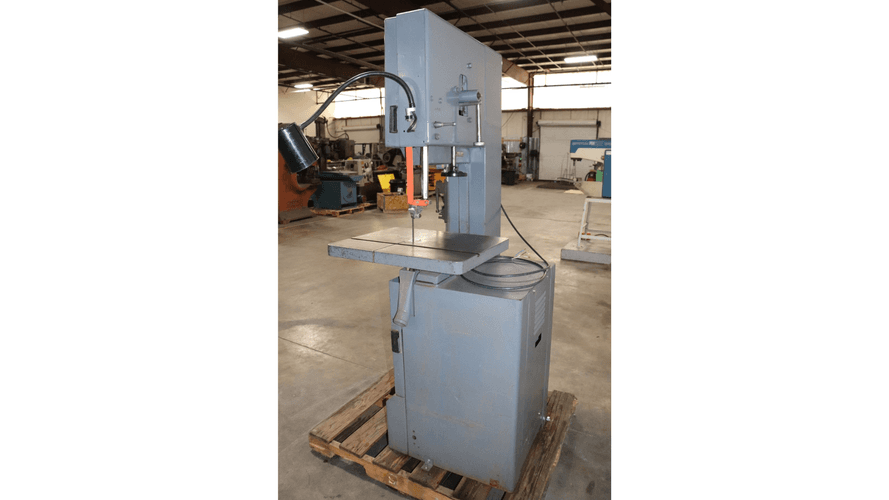

The Delta 28-653 TYPE 2 is a heavy-duty 20-inch vertical combo bandsaw built for professional shops. Designed for metal cutting and general applications, it offers reliable performance, precise control, and durable construction for demanding use.
Industrial 20-Inch Vertical Bandsaw
20-inch throat capacity allows cutting of wide and complex workpieces
Vertical design ideal for contour cutting, straight cuts, and fabrication work
Suitable for professional and industrial shop floors
Powerful 1.5 HP Motor
1.5 HP industrial motor for consistent cutting performance
Handles metals, plastics, and other tough materials
Designed for prolonged operation without overheating
Variable Speed Control (VFD Equipped)
Often equipped with a Variable Frequency Drive (VFD)
Enables precise blade speed adjustment for different materials
Improves blade life and cut quality across applications
Generous Cutting Height Capacity
Up to 12 inches of cutting height under the blade guide
Ideal for tall profiles, stacked materials, and thicker stock
Enhances versatility for fabrication and production tasks
Precision Work Table
20-1/4" x 24-1/4" table size provides stable workpiece support
Designed for accurate feeding and controlled cuts
Suitable for straight, curved, and profile cutting
Wide Blade Compatibility
Supports blade widths from 0.25" to 1"
Uses standard 150-inch bandsaw blades
Compatible with various TPI options for metal and mixed materials
Integrated Industrial Features
Commonly equipped with a blade welder for custom blade lengths
Built-in work light for improved visibility
Industrial-grade controls for operator safety and precision
TYPE 2 Model Designation
Identifies a specific production version
Important for correct blade length, tires, and spare parts
Well-supported in industrial maintenance environments
It is a 20-inch vertical combo bandsaw designed for metal cutting and general shop use.
The throat capacity is 20 inches.
It uses standard 150-inch (12.5 ft) bandsaw blades.
Blade widths from 0.25 inch up to 1 inch.
The maximum height of cut is approximately 12 inches.
It is powered by a 1.5 HP industrial motor.
Yes, it is commonly used for metal cutting with appropriate blades.
Yes, many units include a Variable Frequency Drive (VFD) for speed control.
The table measures approximately 20-1/4" x 24-1/4".
Typically 230V, 3-phase electrical power.
Yes, with suitable blade selection and speed settings.
Many configurations include an integrated blade welder.
Yes, a built-in work light is commonly included.
TYPE 2 refers to a specific manufacturing version important for parts compatibility.
Yes, it is designed for heavy-duty, continuous operation.
| Blade Length inches | 150" |
| Min/Max Blade Width | 1/4" to 1" |
| Machine Type | Combo |
| Throat Capacity | 20 inches |
| Max Height of Cut | 12 inches |
| Table Size | 20-1/4" x 24-1/4" |
| Recommended Blade Range | 1/8" – 3/4" |
| Motor Power | 1.5 HP |
| Speed Control | Variable (VFD) |
| Electrical | 230V / 3-Phase |
| Work Light | Yes |
| Compatible Materials | Metals, plastics, composites |
