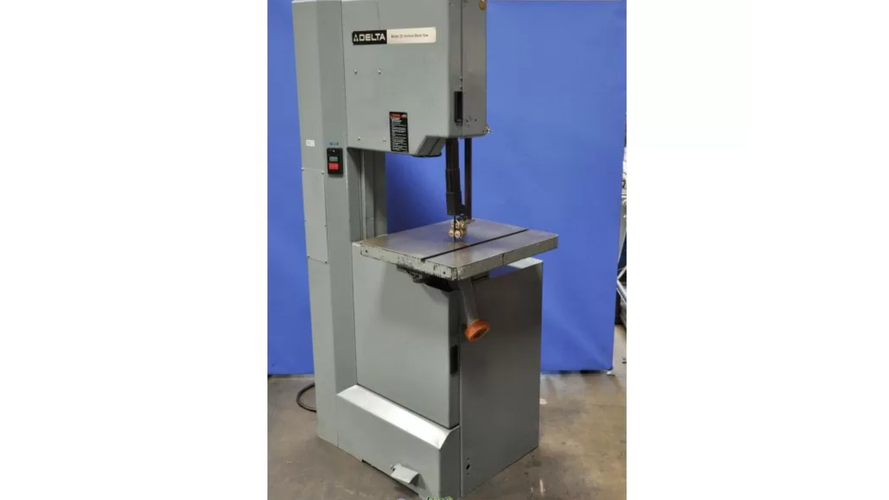

The Delta 28-654 TYPE 2 is a 20-inch vertical combo bandsaw built for professional woodworking, with the versatility to cut plastics and light metals. Featuring an industrial-grade frame and smooth, accurate performance, it delivers reliable precision and long-lasting durability for demanding workshop use.
20-Inch Vertical Bandsaw Design
Large 20-inch throat capacity for handling wide stock
Vertical configuration ideal for contouring, resawing, and straight cuts
Stable cutting performance with reduced vibration
Powerful Motor & Smooth Operation
Typically equipped with a 2 HP motor
Designed for continuous, demanding woodworking tasks
Consistent torque for clean, controlled cuts
Variable Blade Speed Control
Wide speed range (approximately 50–4500 FPM)
Optimizes cutting for different wood types and thicknesses
Supports light metal and plastic cutting with suitable blades
Large Precision Work Table
24" x 24" heavy-duty table for excellent material support
Tilting table enables accurate bevel and angled cuts
Ideal for large panels and detailed workpieces
Wide Blade Compatibility
Blade width range from 0.25" to 1"
Typical blade length around 150 inches
Supports straight cutting, resawing, and intricate curves
Industrial-Grade Construction
Heavy-duty build, often featuring cast iron components
Designed for long service life in professional environments
Maintains alignment and accuracy over extended use
Combo Application Capability
Optimized for woodworking
Capable of cutting plastics and light metals with proper blade choice
Versatile solution for mixed-material workshops
TYPE 2 Version Identification
Indicates a specific production run
Important for compatibility with blades, tires, and spare parts
Widely supported with aftermarket accessories
It is a 20-inch vertical combo bandsaw primarily designed for woodworking.
The blade length is typically around 150 inches for 20-inch models.
Blade widths from 0.25 inch up to 1 inch.
The throat capacity is 20 inches.
The thickness capacity is approximately 12 inches.
Yes, the table tilts to allow bevel and angled cutting.
It typically features a 2 HP motor.
Yes, it offers variable blade speeds for different materials.
Yes, it is well-suited for resawing within its thickness capacity.
Yes, plastics and light metals can be cut using appropriate blades.
An industrial-grade build, often with cast iron components.
Yes, it is designed for continuous professional use.
It refers to a specific production version important for parts compatibility.
Yes, 150-inch blades are commonly available.
Yes, the large table provides excellent support and improved cutting precision.
| Blade Length inches | 150" |
| Min/Max Blade Width | 1/4" to 1" |
| Machine Type | Combo |
| Throat Capacity | 20 inches |
| Max Cutting Thickness | Approx. 12 inches |
| Table Size | 24" x 24" |
| Table Tilt | Yes (for bevel cuts) |
| Blade Speed Range | Approx. 50 – 4500 FPM |
| Motor Power | Approx. 2 HP |
| Construction | Industrial-grade, cast iron components |
| Compatible Materials | Wood, plastics, light metals |
| Typical Use | Professional / Industrial Workshop |
