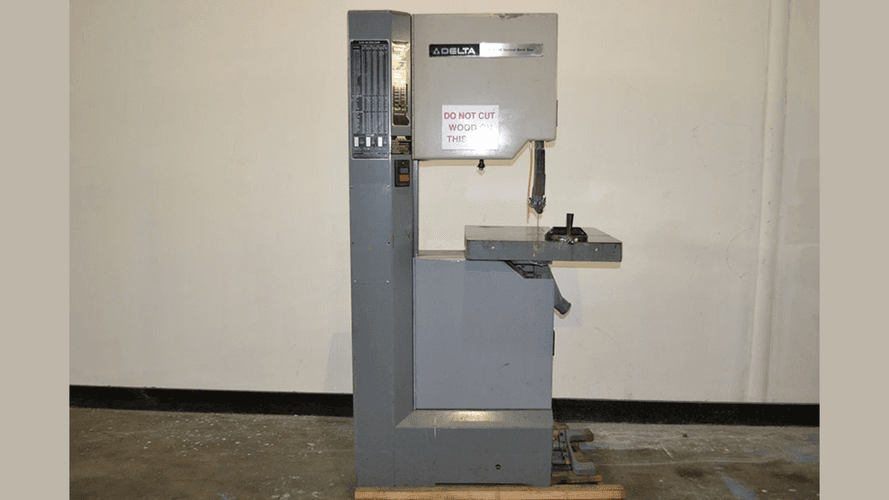

Delta 28-662 Type 2 is a 20″ vertical combo bandsaw optimized for metal cutting and versatile shop use. Featuring variable-speed operation, cast-iron construction, and a precision tilting table, it delivers accurate, durable performance for fabrication and production environments.
20-Inch Vertical Cutting Capacity
20-inch throat depth allows cutting of wide plates and profiles
12-inch maximum work height supports thick materials
Ideal for vertical straight cuts and contour cutting
Optimized for Metal Cutting
Designed primarily as a metal-cutting vertical bandsaw
Dual-range variable blade speed for different metal grades
Clean, controlled cuts with reduced vibration
Wide Blade Compatibility
Accepts blade widths from 0.25" up to 1"
Standard 150-inch blade length for easy replacement
Supports both straight cutting and intricate profiles
Dual-Range Variable Blade Speed
Low Range: 50 – 530 FPM for harder materials
High Range: 450 – 4,500 FPM for faster cutting
Ensures optimal blade performance and extended blade life
Reliable 2 HP Drive Motor
Consistent cutting power for daily shop use
Smooth torque delivery across speed ranges
Suitable for continuous-duty operation
Precision Cast Iron Work Table
Large 24-1/4" x 24-1/4" table
Tilts 15° left to 45° right for angled cuts
Provides excellent support for heavy workpieces
Operator-Friendly Controls
Variable speed transmission for easy adjustment
Integrated chip blower keeps the cutting line visible
Simple mechanical layout for easy maintenance
TYPE 2 Configuration
Indicates a specific production version
Important for accurate spare parts and service compatibility
Well-supported in industrial environments
It is a 20-inch vertical metal-cutting combo bandsaw.
The blade length is 150 inches.
From 0.25 inch up to 1 inch.
The throat capacity is 20 inches.
The maximum work height is 12 inches.
Yes, it features dual-range variable blade speed.
Low range: 50–530 FPM, High range: 450–4,500 FPM.
It is equipped with a 2 HP motor.
Yes, it tilts 15° left and 45° right.
Yes, with appropriate blades and speed settings.
Yes, it has a built-in chip blower.
220V, single-phase power.
Yes, narrow blades allow accurate contour work.
It identifies a specific manufacturing version for parts compatibility.
Yes, it is built for heavy-duty shop and fabrication environments.
| Blade Length inches | 150" |
| Min/Max Blade Width | 1/4" to 1" |
| Machine Type | Combo |
| Throat Capacity | 20 inches |
| Max Work Height | 12 inches |
| Blade Speed (Low Range) | 50 – 530 FPM |
| Blade Speed (High Range) | 450 – 4,500 FPM |
| Motor Power | 2 HP |
| Table Size | 24-1/4" x 24-1/4" |
| Table Tilt | 15° Left to 45° Right |
| Construction | Heavy-Duty Cast Iron |
| Electrical Requirement | 220V, Single Phase |
| Chip Management | Integrated Chip Blower |
