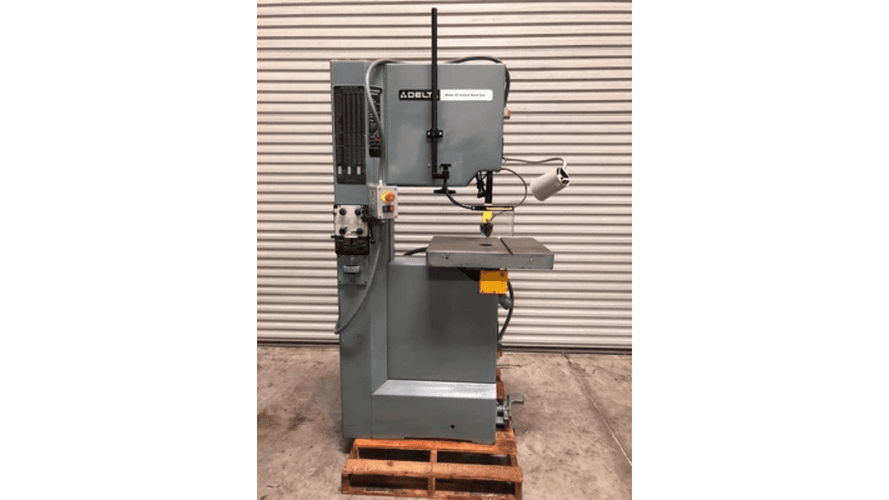

Delta 28-663 Type 2 is a robust 20″ vertical combo bandsaw for wood and light metal cutting. With industrial construction, versatile speeds, wide blade compatibility, and built-in blade welder and grinder, it delivers precise straight and contour cuts in demanding shop environments.
20-Inch Vertical Cutting Capacity
Large 20-inch throat supports wide workpieces
Maximum work height of 12 inches for thick stock
Ideal for resawing, profiling, and vertical cutting operations
Combo Wood & Metal Cutting Capability
Designed to handle wood, plastics, and light metals
Supports a broad range of blade tooth configurations
Suitable for multi-purpose workshops
Wide Blade Compatibility
Accepts blades from 0.25" to 1" width
Standard 150-inch blade length for easy sourcing
Enables both fine-detail curves and heavy straight cuts
Powerful 3 HP Motor
Provides consistent torque for demanding cuts
Maintains smooth operation across variable speeds
Designed for continuous-duty performance
Wide Variable Speed Range
Blade speeds ranging approximately 50 to 4,300–4,500 SFPM
Allows precise adjustment based on material type
Enhances blade life and cutting quality
Precision Cast Iron Work Table
Approximate table size: 24" x 24"
Tilting capability from -15° to +45°
Supports accurate angle and bevel cuts
Integrated Blade Welder & Grinder
Built-in blade welder for custom blade lengths
Grinder allows quick finishing and repair
Reduces downtime and increases productivity
Operator-Friendly Controls
Foot pedal speed control for hands-free adjustment
Integrated work light for better visibility
Chip blower keeps the cutting line clean
TYPE 2 Configuration
Identifies a specific production version
Important for correct replacement parts and manuals
Widely supported in industrial environments
It is a 20-inch vertical combo bandsaw for wood and light metal cutting.
The blade length is 150 inches (12 feet 6 inches).
Blades from 0.25 inch to 1 inch wide are supported.
The throat capacity is 20 inches.
The maximum work height is approximately 12 inches.
Yes, the table tilts from -15° to +45°.
It is equipped with a 3 HP motor.
Yes, light metals can be cut using appropriate blades and speeds.
Yes, it features a wide variable blade speed range.
Yes, it includes an integrated blade welder and grinder.
Yes, narrow blades allow accurate curve and contour cutting.
It indicates a specific production run important for parts compatibility.
Yes, it is built for heavy-duty shop and industrial environments.
Yes, 150-inch blades are widely available.
Yes, features include a foot pedal speed control, work light, and chip blower.
| Blade Length inches | 150" |
| Min/Max Blade Width | 1/4" to 1" |
| Machine Type | Combo |
| Throat Capacity | 20 inches |
| Max Work Height | 12 inches |
| Blade Speed Range | Approx. 50 – 4,300 / 4,500 SFPM |
| Motor Power | 3 HP |
| Table Size | Approx. 24" x 24" |
| Table Tilt | -15° to +45° |
| Construction | Heavy-Duty Cast Iron |
| Control Features | Foot Pedal Speed Control |
| Built-in Accessories | Blade Welder, Grinder, Work Light, Chip Blower |
