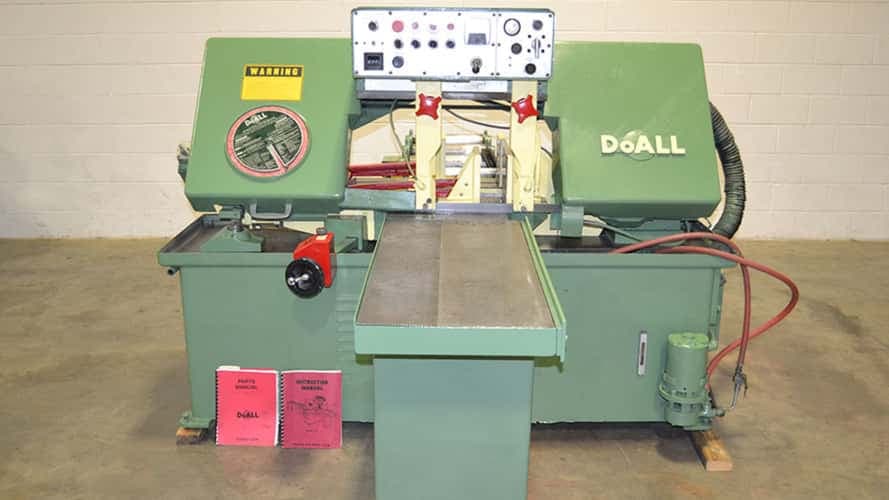

The DoAll C-1212-A is a heavy-duty automatic horizontal bandsaw built for precision and continuous production cutting. Designed for durability and repeatable accuracy, it features a 12” round capacity, 3 HP motor, 80–400 SFM variable blade speed, and 24” automatic feed stroke — ideal for structural steel, metal service centers, and high-volume manufacturing.
1. 12” x 12” Heavy-Duty Cutting Capacity
Designed for production cutting, the C-1212-A handles:
Round stock up to 12 inches diameter
Rectangular material up to 12” x 12”
Ideal for cutting:
Carbon steel
Stainless steel
Aluminum
Tool steel
Alloy materials
2. Powerful 3 HP Main Drive Motor
The robust 3 HP motor ensures:
Stable torque under load
Smooth cutting performance
Reduced blade deflection
Extended blade life
Perfect for repetitive production cycles.
3. Variable Blade Speed (80–400 SFM)
The adjustable speed range allows operators to match cutting parameters to material type:
Lower speeds for hard alloys
Higher speeds for mild steel and aluminum
Improved surface finish
Reduced heat generation
4. 24” Automatic Feed Stroke
The hydraulic feed system provides:
24-inch automatic stroke
Controlled downfeed pressure
Efficient material indexing
Consistent repeat accuracy
Designed for batch production and long stock processing.
5. Heavy-Duty 16” Bandwheels
Large 16” diameter bandwheels:
Improve blade tracking
Reduce stress on blade
Enhance cutting stability
Increase blade life expectancy
6. Large Hydraulic & Coolant Capacity
Hydraulic Reservoir: 7 gallons
Coolant Capacity: 20 gallons
Ensures:
Stable feed pressure
Efficient cooling
Longer blade life
Reduced maintenance intervals
7. High Load Capacity (6,250 lbs)
Built with a rigid frame and industrial-grade construction, the C-1212-A supports:
Heavy bundles
Solid bar stock
Structural steel
Continuous production use
8. Industrial-Grade Construction
Approximate Weight: 4,200 lbs
Machine Dimensions: 60” x 80” x 48” H
Rigid welded frame design
Vibration-minimizing construction
Built for long-term industrial reliability.
It cuts up to 12” round and 12” x 12” rectangular material.
Yes, it is designed for automatic production cutting.
Approximately 159–160 inches long.
1-inch blade width.
Variable from 80 to 400 SFM.
3 HP main drive motor.
24 inches automatic feed.
Steel, stainless steel, aluminum, alloys, and tool steel.
7 gallons.
20 gallons.
6,250 lbs.
Yes, due to its high load capacity and rigid frame.
60” x 80” x 48” height.
Approximately 4,200 lbs.
Yes, it is specifically designed for industrial production cutting.
| Blade Length inches | 159" |
| Min/Max Blade Width | 1" to 1" |
| Machine Type | Metal |
| Blade Size | 160” x 1” x .035” |
| Round Capacity | 12” (305 mm) |
| Rectangle Capacity | 12” x 12” (305 x 305 mm) |
| Blade Speed | 80 – 400 SFM (Variable) |
| Bandwheel Diameter | 16” |
| Main Motor | 3 HP |
| Hydraulic System Capacity | 7 Gallons |
| Coolant Capacity | 20 Gallons |
| Automatic Feed Stroke | 24” |
| Maximum Load Capacity | 6,250 lbs |
| Machine Weight | Approx. 4,200 lbs |
| Machine Dimensions | 60” x 80” x 48” H |
