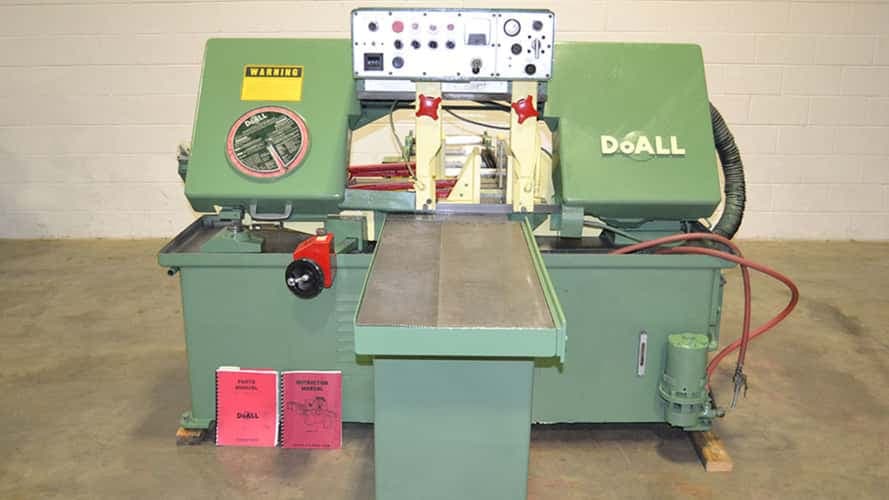

DoAll C-1216-NC Automatic Horizontal Metal Bandsaw

1. Large 12” x 16” Cutting Capacity

The C-1216-NC handles:

• Rectangular sections up to 12” x 16” (304.8 x 406.4 mm)

• Round material up to 15–15-3/4 inches diameter

• Maximum vise opening of 18 inches

Ideal for cutting structural shapes, tubing, bar stock, and solid alloy materials.

2. High-Speed Variable Blade System (40–450 FPM)

The infinitely variable blade speed allows operators to:

• Adjust cutting speed for different materials

• Optimize for stainless, carbon steel, aluminum, or tool steel

• Improve surface finish

• Extend blade life

With speeds up to 450 FPM, it offers enhanced productivity.

3. Heavy-Duty Blade Assembly

• Blade Dimensions: 1.5” x 162” x .035”

• Blade Wheel Diameter: 16”

• High-stability blade tracking

• Reduced vibration for straight cuts

The 16” band wheels enhance durability and blade longevity.

4. Powerful Motor Configuration

Depending on configuration:

• Main Blade Motor: 5 HP or 7.5 HP

• Hydraulic Pump Motor: 2 HP (1800 RPM)

• Coolant Pump Motor: 1/3 HP (3450 RPM)

• Electrical: 230/460V, 3-Phase, 60Hz

This setup ensures stable torque and reliable cutting performance.

5. NC Control with Automatic Shuttle Feed

The programmable shuttle feed system provides:

• 24” feed stroke

• Automated material indexing

• Repeatable batch cutting

• Reduced operator intervention

Perfect for production cutting applications.

6. Hydraulic Blade Tension & Feed Control

Hydraulic systems manage:

• Blade tensioning

• Controlled downfeed

• Vise clamping

• Smooth cycle operation

Ensuring consistent, accurate results.

7. Ergonomic Work Height

• Work Height: 30”

• Comfortable operator positioning

• Improved safety and workflow

8. Industrial Construction & Footprint

• Approximate Dimensions: 84” (L-R) x 105” (F-B) x 59” H

• Weight: Approx. 4,750 lbs (varies by configuration)

• Rigid frame reduces vibration

• Designed for long-term industrial use
