NC Automated Control System
The DoAll C-330-NC features a modern PLC touchscreen control system that allows operators to program cutting jobs quickly and efficiently. The system supports up to 20 job storage programs, enabling fast setup and repeat production.
Automatic Indexing Shuttle Vise
This bandsaw is equipped with an automatic hydraulic shuttle vise system that feeds material accurately for multiple cutting cycles. It offers a single index stroke of 19.68 inches and can perform multiple strokes for longer material lengths.
Large Cutting Capacity
The machine provides excellent cutting capabilities with 13-inch round capacity and 15.75″ × 13″ rectangular capacity, allowing it to handle large metal workpieces and structural profiles.
Bundle Cutting Capability
The C-330-NC can also cut bundled materials with a maximum bundle capacity of 14.5″ × 6.6″, making it ideal for production environments handling multiple smaller pieces simultaneously.
Powerful 5 HP Band Drive Motor
The bandsaw features a 5 HP band drive motor, delivering strong and consistent cutting performance for heavy-duty metal cutting operations.
Variable Blade Speed Control
The machine offers variable blade speeds from 72 to 390 feet per minute (FPM), allowing operators to optimize cutting speeds depending on the material type and hardness.
Advanced Hydraulic System
A 1 HP hydraulic system with a 16-gallon reservoir powers the automatic feed, clamping, and indexing functions, ensuring smooth and reliable machine operation.
Coolant System for Efficient Cutting
The integrated coolant system with a 24-gallon reservoir reduces blade heat buildup and improves cutting efficiency and blade life.
Carbide-Faced Blade Guides
The C-330-NC features spring-loaded carbide-faced blade guides with coolant-through design, providing excellent blade support and cutting accuracy.
Automatic Chip Conveyor
An auger-style hydraulic chip conveyor removes metal chips efficiently during operation, helping maintain a clean and safe working environment.

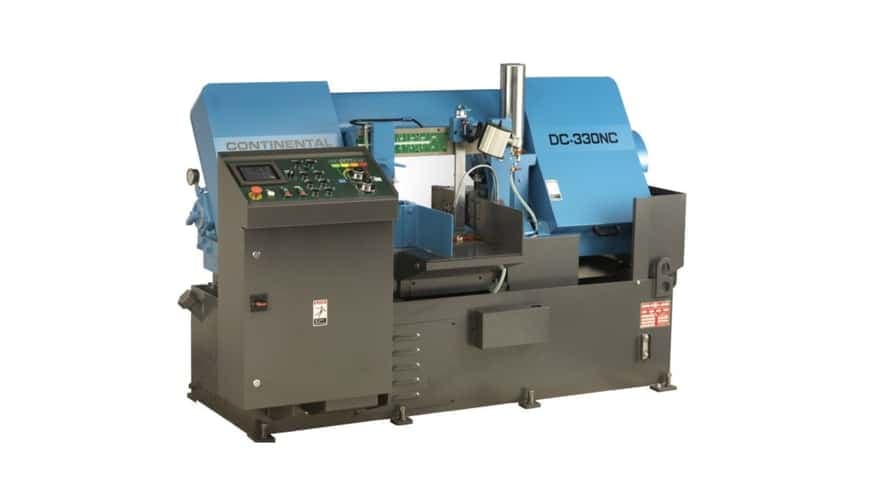

The C-330-NC is an NC automatic horizontal metal cutting bandsaw designed for industrial production cutting.
The machine can cut round materials up to 13 inches in diameter.
It can cut rectangular materials up to 15.75″ wide × 13″ high.
The machine typically uses a 1.25″ wide × 0.042″ thick × 167″ long blade.
The blade speed ranges from 72 to 390 feet per minute (FPM).
The C-330-NC uses a 5 HP band drive motor.
The hydraulic system controls material clamping, head feed, and automatic indexing.
The machine offers a single indexing stroke of 19.68 inches.
Multiple strokes allow indexing up to 177 inches (4500 mm).
Yes, the bandsaw includes a 24-gallon coolant system.
The machine uses carbide-faced blade guides with coolant-through design.
Yes, it can cut bundles up to 14.5″ × 6.6″.
The machine weighs approximately 4,410 pounds (2,000 kg).
Industries such as metal fabrication, manufacturing, and steel processing commonly use this bandsaw.
The machine is manufactured by DoAll, a leading brand in industrial bandsaw machines.
| Blade Length inches | 167" |
| Min/Max Blade Width | 1" to 1" |
| Machine Type | Metal |
| Round Cutting Capacity | 13″ (330 mm) |
| Rectangular Cutting Capacity | 15.75″ W × 13″ H (400 × 330 mm) |
| Bundle Capacity | 14.5″ × 6.6″ (370 × 170 mm) |
| Blade Size | 1.25″ × 0.042″ × 167″ |
| Blade Speed | 72 – 390 FPM (Variable) |
| Band Drive Motor | 5 HP (3.75 kW) |
| Hydraulic Motor | 1 HP |
| Hydraulic Reservoir | 16 Gallons |
| Coolant Motor | 1/4 HP or 1/6 HP |
| Coolant Reservoir | 24 Gallons |
| Single Index Stroke | 19.68″ (500 mm) |
| Maximum Indexing | Up to 177″ (4500 mm) |
| Floor Space Required | Approx. 89″ × 87″ × 56″ |
| Machine Weight | Approx. 4,410 lbs (2,000 kg) |
