1. 280 mm Industrial Cutting Capacity
Round Capacity: 11" (280 mm)
Rectangular Capacity: 11-3/4" W x 11" H (300 x 280 mm)
Bundle Capacity (Max): 9-3/4" W x 4" H (250 x 100 mm)
Bundle Capacity (Min): 6-1/2" W x 5/8" H (165 x 15 mm)
Designed for solid bars, square blocks, tubing, and bundled material cutting.
2. Fully Automatic NC Control

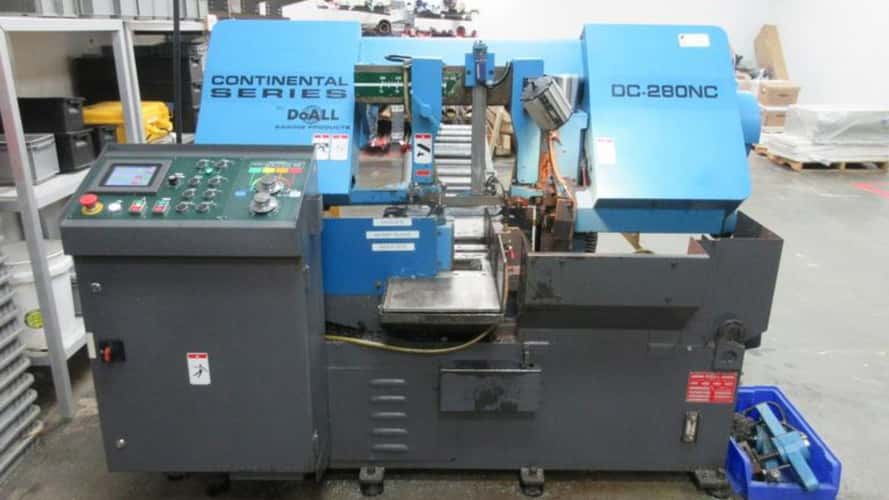

The DC-280-NC features Numeric Control automation for production efficiency:
Programmable cut lengths
Automatic indexing feed system
Multi-stroke indexing capability
Automatic cycle repeat
Perfect for repetitive, high-volume metal cutting operations.
3. Advanced Indexing System
Max Single Stroke: 15.75" (400 mm)
Max Multi-Stroke: 141.73" (3,600 mm)
Minimum Remnant Length: 3.75" (95 mm)
Provides flexibility for both short and long material cutting.
4. Powerful 5 HP Main Drive Motor
Main Motor: Approx. 5 HP
Engineered for continuous-duty cutting
High torque output for steel and alloy materials
5. Variable Blade Speed (VFD Controlled)
Speed Range: 52–430 FPM (16–131 m/min)
(Some versions: 72–390 FPM depending on year)
Frequency-controlled variable speed drive
Optimizes blade life and surface finish based on material type.
6. Precision Blade System
Blade Length: 150" (3820 mm)
Blade Width: 1-1/4" (32 mm)
Blade Thickness: 0.042" (1.1 mm)
Hydraulic Band Tensioning
Ensures straight cutting performance and extended blade life.
7. Carbide Blade Guides with Rollers
Carbide-faced guide inserts
Roller support system
Reduced blade deflection
Improves cut accuracy and minimizes vibration.
8. Hydraulic Clamping & Feed Control
Heavy-duty hydraulic vise system
Controlled feed pressure
Designed for bundle and solid cutting
Ensures secure material holding during operation.
9. Robust Industrial Construction
Welded steel frame
Compact yet stable footprint
Engineered for production environments
Offers durability and low maintenance over long operating cycles.
10. Coolant Compatibility
Designed to operate with integrated coolant systems for:
Improved blade cooling
Better surface finish
Extended tool life
11. Compact Production Footprint
Ideal for mid-sized workshops where floor space efficiency is critical without sacrificing cutting capacity.
11 inches (280 mm).
Yes, it features NC programmable automation.
150" length, 1-1/4" width, 0.042" thickness.
52–430 FPM (16–131 m/min).
Yes, with hydraulic clamping.
Up to 3,600 mm (multi-stroke).
3.75 inches (95 mm).
Yes, hydraulic band tensioning.
Steel fabrication, machining, service centers.
Carbon steel, alloy steel, non-ferrous metals.
Yes, carbide-faced guides with rollers.
Yes, VFD controlled.
Typically industrial 3-phase power (region dependent).
Yes, designed for repetitive production cutting.
Reliable automation, compact design, and precise cutting performance.
| Blade Length inches | 150" |
| Min/Max Blade Width | 1.25" to 1.25" |
| Machine Type | Metal |
| Cutting Capacity (Round) | 11" (280 mm) |
| Cutting Capacity (Rectangle) | 11-3/4" x 11" (300 x 280 mm) |
| Bundle Capacity (Max) | 9-3/4" x 4" (250 x 100 mm) |
| Bundle Capacity (Min) | 6-1/2" x 5/8" (165 x 15 mm) |
| Blade Thickness | 0.042" (1.1 mm) |
| Blade Speed | 52–430 FPM (16–131 m/min) |
| Max Index Single Stroke | 15.75" (400 mm) |
| Max Index Multi-Stroke | 141.73" (3,600 mm) |
| Minimum Remnant Length | 3.75" (95 mm) |
| Motor Power | Approx. 5 HP |
