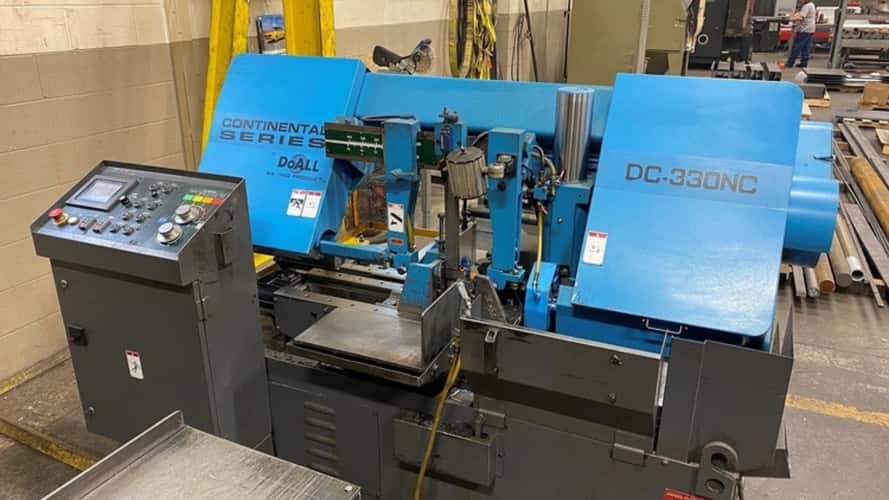

The DoALL Saws DC-330NC is a high-performance automatic horizontal bandsaw designed for precision production cutting.
With a 13" (330 mm) round and 13" x 15.75" rectangular capacity, plus NC control, VFD blade speed, and hydraulic clamping, it delivers fast, accurate cutting for solids, profiles, and bundled materials.
1. 330 mm High-Capacity Cutting Performance
Round Capacity: 13" (330 mm)
Rectangular Capacity: 13" x 15.75" (330 x 400 mm)
Bundle Capacity: 6.5" x 2" to 14.5" x 6.625"
Designed for cutting solid bars, square blocks, tubing, and structural profiles with precision.
2. Fully Automatic NC Operation
The DC-330NC features Numeric Control (NC) automation:
Programmable cut lengths
Automatic material indexing
Hydraulic vise operation
Automatic cycle repeat
Perfect for batch production and high-volume cutting operations.
3. Powerful 5 HP Main Drive Motor
Main Motor: 5 HP (3.75 kW)
Provides consistent torque for cutting carbon steel and alloy materials
Suitable for continuous industrial duty
4. Variable Blade Speed with VFD Control
Speed Range: 52 – 430 FPM (16 – 131 m/min)
Controlled via Variable Frequency Drive (VFD)
Optimizes cutting performance for different materials
This flexibility improves blade life and surface finish.
5. Heavy-Duty Blade System
Blade Length: 167 inches (4242 mm)
Blade Width: 1.25" (approx. 34 mm)
Blade Thickness: 0.042" (1.1 mm)
Compatible with bi-metal blades
Ensures straight cuts and reduced vibration during heavy-duty operations.
6. Robust Hydraulic System
Hydraulic Motor: 1 HP
Hydraulic Reservoir: 16 gallons
Provides feed pressure and vise clamping
Designed for reliable, controlled cutting feed.
7. Integrated Coolant System
Coolant Motor: 1/6 HP
Coolant Tank Capacity: 24 gallons
Enhances blade life and improves cut quality
8. Rigid Structural Construction
Heavy-duty welded steel frame
Industrial-grade components
Reduced vibration and improved stability
Weighing approximately 4,410 lbs (2,000 kg), it is built for demanding environments.
9. Efficient Footprint for Production Floors
Floor Space: 89" x 87" x 56"
Compact yet robust design
Suitable for mid-size fabrication facilities
10. Bundle Cutting Capability
Hydraulic clamping system ensures:
Secure bundle cutting
Stable material positioning
Improved productivity for bar stock operations
11. Industrial Electrical Setup
Power Requirement: 230V, 60Hz, 3-Phase
Total Amp Draw: 22 Amps
Designed for standard industrial electrical systems.
13 inches (330 mm).
Yes, it features NC programmable automation.
167" long bi-metal blade, 1.25" wide.
52 to 430 FPM (16–131 m/min).
230V, 60Hz, 3-phase.
5 HP main motor.
Yes, it supports bundle cutting with hydraulic clamping.
Approximately 4,410 lbs (2,000 kg).
Steel service centers, fabrication shops, machine shops.
Yes, with a 24-gallon reservoir.
Yes, via VFD control.
16-gallon hydraulic reservoir with 1 HP motor.
Is it suitable for production environments?
Carbon steel, alloy steel, and non-ferrous metals.
Reliable automation, precision control, and industrial durability.
| Blade Length inches | 167" |
| Min/Max Blade Width | 1.25" to 1.25" |
| Machine Type | Metal |
| Cutting Capacity (Round) | 13" (330 mm) |
| Cutting Capacity (Rectangular) | 13" x 15.75" (330 x 400 mm) |
| Bundle Capacity | 6.5" x 2" to 14.5" x 6.625" |
| Blade Thickness | 0.042" (1.1 mm) |
| Blade Speed | 52 – 430 FPM (16 – 131 m/min) |
| Main Motor | 5 HP (3.75 kW) |
| Hydraulic Motor | 1 HP |
| Hydraulic Reservoir | 16 Gallons |
| Coolant Motor | 1/6 HP |
| Coolant Reservoir | 24 Gallons |
| Electrical | 230V, 60Hz, 3-Phase |
| Total Amp Draw | 22 Amps |
| Machine Weight | Approx. 4,410 lbs (2,000 kg) |
| Floor Space | 89" x 87" x 56" |
| Application | Steel, alloy metals, structural materials |
