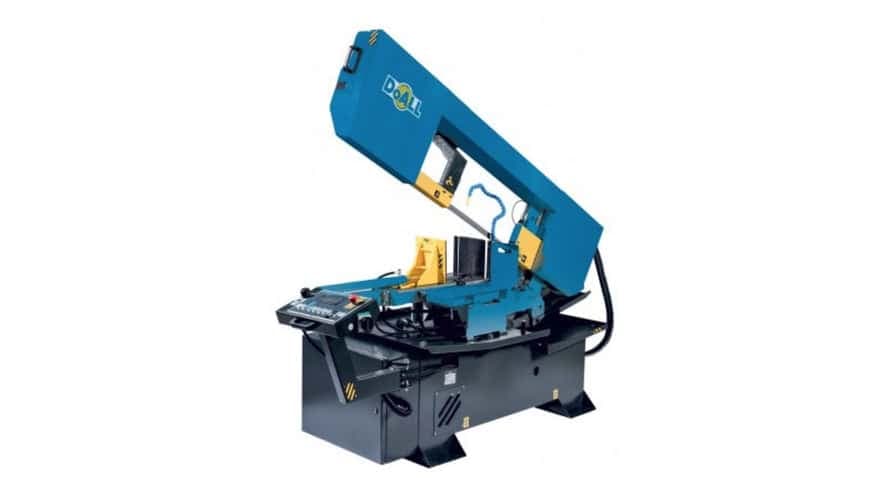

Dual Swivel Head for Advanced Miter Cutting
The DoAll DS-500SA features a dual swivel head with a miter range of 60° left and 60° right, allowing precise angle cuts without repositioning the material.
Large Industrial Cutting Capacity
The machine supports versatile cutting dimensions:
90° Rectangular: 14″ × 20″
90° Round Tube: 14″
90° Round Solid: 9.8″
Wide Miter Cutting Capabilities
The bandsaw offers multiple angle cutting options:
45° Rectangular: 15.75″ × 7.5″
60° Rectangular: 10.6″ × 12.6″
Round Cutting up to 14.2″ at 45°
Mitsubishi Control System with Digital Readout
The integrated Mitsubishi control system provides precise operation with a digital miter angle display, improving setup accuracy and ease of use.
Variable Blade Speed with VFD
The machine includes variable blade speeds from 65 to 328 FPM, controlled via a Variable Frequency Drive (VFD) to optimize cutting performance for different materials.
Powerful 4 HP Band Drive Motor
A 4 HP motor ensures efficient and consistent cutting performance, even when handling tough materials.
Hydraulic Full Stroke Vise System
The hydraulic vise with full stroke capability ensures secure clamping of workpieces, enhancing accuracy and repeatability.
Variable Vise Pressure Control
The machine allows adjustable vise pressure, making it suitable for cutting both delicate and heavy materials.
2° Canted Saw Frame Design
The canted saw frame design improves cutting efficiency by reducing blade wear and improving chip evacuation.
Efficient Coolant System
The bandsaw includes a 5.25-gallon coolant tank with a dedicated pump to maintain optimal cutting temperatures.
Pulley-Driven Band Brush
The band brush system helps remove chips from the blade, ensuring consistent cutting performance and longer blade life.
Compact Yet Powerful Design
Despite its robust capabilities, the machine maintains a compact footprint, making it suitable for various workshop layouts.
It is a semi-automatic horizontal metal cutting bandsaw with dual swivel capability.
The machine can cut 14″ × 20″ rectangular and 14″ round materials.
The saw supports 60° miter cutting in both left and right directions.
It uses a 188″ long blade with widths ranging from 0.25″ to 0.75″.
The blade speed ranges from 65 to 328 FPM.
The bandsaw is powered by a 4 HP band drive motor.
The machine includes a Mitsubishi control system with digital miter readout.
It is a semi-automatic machine with hydraulic feed and clamping systems.
The machine uses a hydraulic full stroke vise with adjustable pressure.
The coolant tank has a capacity of 5.25 gallons.
It can cut steel, stainless steel, aluminum, alloys, and structural materials.
The machine weighs approximately 1,631 lbs (740 kg).
It improves cutting efficiency, chip removal, and blade life.
Yes, it is ideal for medium to high production environments.
The machine is manufactured by DoAll, a leading global manufacturer of bandsaws.
| Blade Length inches | 188" |
| Min/Max Blade Width | 1.25" to 1.25" |
| Machine Type | Metal |
| Cutting Capacity @ 90° (Rectangular) | 14″ × 20″ |
| Cutting Capacity @ 90° (Round Tube) | 14″ |
| Cutting Capacity @ 90° (Round Solid) | 9.8″ |
| Cutting Capacity @ 45° (Rectangular) | 15.75″ × 7.5″ |
| Cutting Capacity @ 60° (Rectangular) | 10.6″ × 12.6″ |
| Miter Range | 60° Left & 60° Right |
| Blade Speed | 65 – 328 FPM (Variable) |
| Band Drive Motor | 4 HP (3 kW) |
| Hydraulic Pump Motor | 0.75 HP |
| Coolant Pump Motor | 0.12 HP |
| Coolant Tank Capacity | 5.25 Gallons |
| Material Pass Height | 32″ |
| Frame Design | 2° Canted Saw Frame |
| Machine Dimensions | 114″ × 43″ × 56″ |
| Machine Weight | Approx. 1,631 lbs |
