Vertical Cutting Design for Maximum Flexibility
The DoAll MV vertical bandsaw allows operators to move the material instead of the blade, making it ideal for contour cutting, pattern work, and irregular shapes.
Large Throat Capacity for Bigger Workpieces
With a 36″ throat depth and 13″ work height, the machine can handle large and complex workpieces with ease.
Wide Blade Compatibility
The machine supports a wide range of blade sizes:
Blade Width Range: 1/16″ to 1″
Blade Length: Approx. 199″
This flexibility allows users to choose the right blade for fine contouring or heavy-duty cutting.
High-Speed Variable Blade Control
The bandsaw offers variable blade speeds from 550 to 5,500 FPM, controlled via a Variable Frequency Drive (VFD), making it suitable for different materials and cutting requirements.
Powerful 5 HP Motor
The 5 HP motor ensures consistent cutting power for both light and heavy-duty applications, delivering smooth and efficient operation.
Large Tilting Work Table
The 26″ × 26″ work table provides ample support and can tilt:
45° to the right
10° to the left
This allows for precise angled and bevel cutting operations.
User-Friendly Control Panel
The machine includes column-mounted controls, providing easy access and improved operator convenience during cutting operations.
Safety Features for Operator Protection
Equipped with band door interlocks and blade guards, the DoAll MV ensures safe and secure operation.
Chip Blower System
A chip blower helps keep the cutting line clear of debris, improving visibility and cutting accuracy.
Optional Accessories for Enhanced Functionality
Available optional features include:
Glide tables for easier material handling
DBW-15 butt welder for blade joining
Extended work height configurations
Heavy-Duty Construction
With a solid build and weight of approximately 1,550 lbs, the machine offers excellent stability and durability for industrial use.

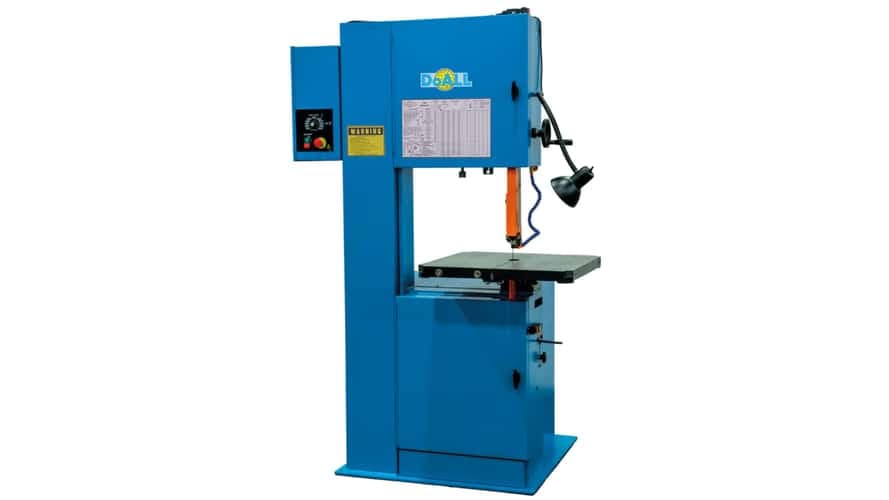

The DoAll MV is a vertical metal cutting bandsaw designed for contour and precision cutting.
The machine has a 36″ throat capacity, allowing large workpieces to be processed.
The maximum work height is 13 inches.
The machine supports blade widths from 1/16″ to 1″.
The blade speed ranges from 550 to 5,500 FPM.
It is powered by a 5 HP motor with VFD control.
The work table measures 26″ × 26″.
Yes, the table tilts 45° to the right and 10° to the left.
It can cut steel, aluminum, alloys, plastics, and composite materials.
Yes, it includes band door interlocks and blade guards.
The machine weighs approximately 1,550 lbs.
Vertical bandsaws allow greater flexibility for contour and custom cutting operations.
Yes, it includes a chip blower to clear debris during cutting.
Yes, options include glide tables, blade welders, and extended height configurations.
The machine is manufactured by DoAll, a leading global bandsaw manufacturer.
| Blade Length inches | 199" |
| Min/Max Blade Width | 3/4" to 3/4" |
| Machine Type | Metal |
| Throat Capacity | 36″ |
| Work Height | 13″ |
| Table Size | 26″ × 26″ |
| Table Tilt | 45° Right, 10° Left |
| Blade Width Range | 1/16″ – 1″ |
| Blade Speed | 550 – 5,500 FPM (Variable) |
| Motor Power | 5 HP (VFD Controlled) |
| Machine Weight | Approx. 1,550 lbs |
| Floor Space | Approx. 39″ × 80.5″ |
| Application | Precision Contour & Metal Cutting |
